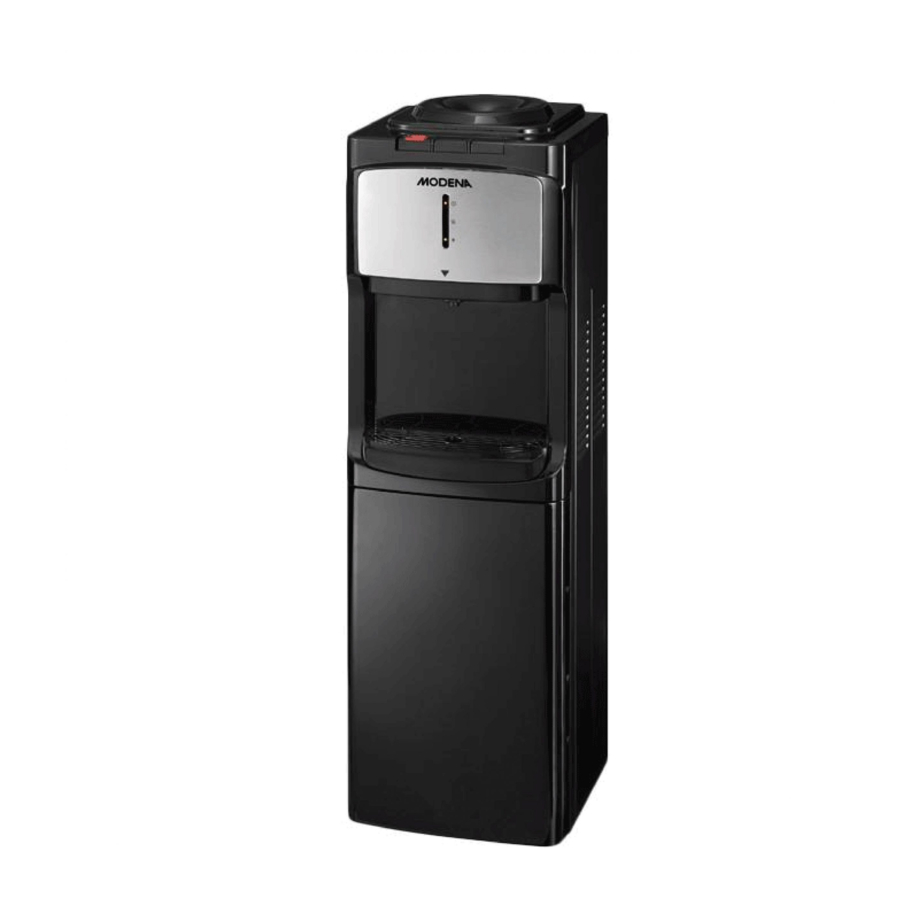

- Page 1 User Manual Book Water Dispenser Copertina Series DD 1380 Feroce Series DD 0370...
- Page 2 Thank you for your trust in choosing MODENA products for your household needs. With your satisfaction as our priority, we constantly aim to deliver stylishly designed products equipped with state-of-the-art technology to assist you in your daily activities. This is your guidebook containing everything you need to know about our product.
- Page 3 CONTENTS PAGE. • Introduction • Part 1 : Name of Parts • Part 2 : Installation • Part 3 : How to Use • Part 4 : Maintenance • Part 5 : Precaution Action • Part 6 : Problem & Solution •...
-
Page 4: Name Of Parts
Part 1: Name of Parts DD 1380 Remarks: 1. Bottle supporter 7. Cooling switch 2. Top Cover 8. Heating switch 3. Cold water tap 9. Power cord 4. Normal water tap 10.Drain hole 5. Hot water tap 11.Condenser 6. Cabinet... - Page 5 DD 0370 FRONT REAR Remarks: 1. Bottle supporter 7. Heating switch 2. Top Cover 8. Power cord 3. Indicator light 9. Drain hole 4. Water tap 10.Condenser 5. Water collector 6. Cooling switch...
-
Page 6: Installation
Part 2: Installation 1. Install the dispenser on a flat and stable surface. 2. Install the water gallon in the correct position. 3. Press the hot water tap (red) until the water flows out from the tap. 4. Connect the power cord into the socket. Then turn on the red switch (heating) located on the back of the unit. - Page 7 Part 5: Precaution Action 1. Place the dispenser on an even surface. Avoid placing it in a humid place. Provide a minimum of 20 cm distance from the wall and do not store flammable substances near the dispenser. 2. To avoid damaging the machine, do not connect the electrical cord or pressing hot water switch (red) until the water can flow out from the hot water tap without obstruction.
- Page 8 If there is damage to the power cord immediately contact the MODENA call center for replacement. Replacing the power cord must be done by personnel with experience and understanding of electricity. Never replace the power cord by yourself, due to the dangers that could lead to harm to you and the others.
-
Page 9: Problem & Solution
Part 6: Problem & Solution Please inspect the following before contacting the Call Center in the event of operational disturbance: Cause Solution Problem Excessive dispensation of Wait until water hot water or cold water in becomes cold or hot. Water is not hot or not cold. a short period of time. -
Page 10: Specification
Part 7: Specification MODEL DD 1380 DD 0370 Type Cold, Hot & Normal Cold, Hot & Normal Lower chamber Color Black Black Stainless Hot water output (liter/hour) Cold water output(liter/hour) High temperature (Celsius) ≥90 ≥90 Cold temperature (Celsius) ≤10 ≤10 Free-CFC compressor Regulator of thermostat Water tube material... - Page 11 11/20...
