TVR 46 Quick Start Guide

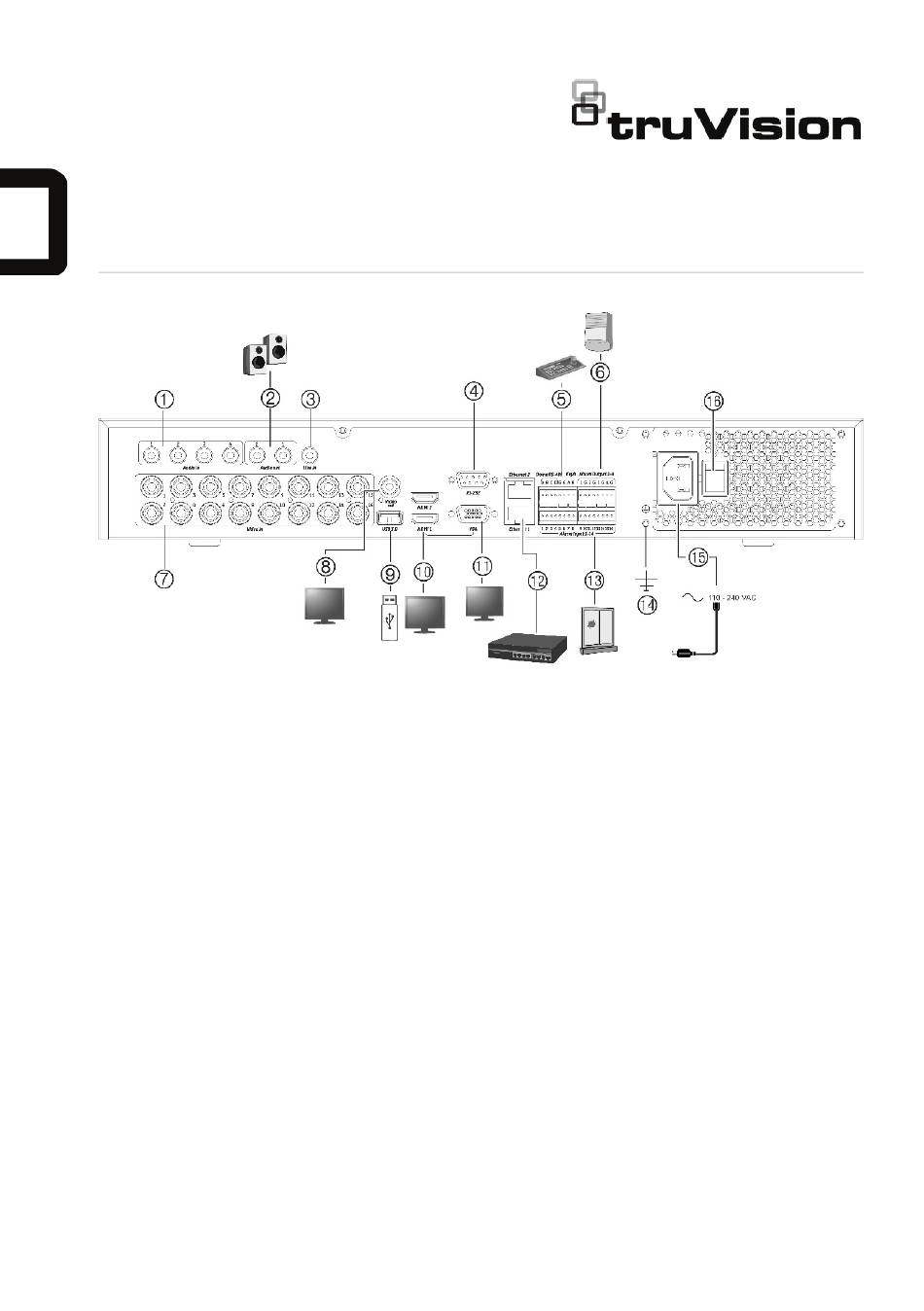

Figure 1: Back panel connections (16-channel model shown)
1. Connect four audio inputs to RCA connectors.
2. Connect to speakers for audio output.
3. Line In.
4. Connect to an RS-232 device.
5. Connect to an RS-485 device such as a PTZ
camera or a keypad.
6. Connect up to four alarm outputs.
7. Connect up to 16 or 32 analog/HD-TVI cameras
to BNC-type connectors (depends on the
recorder model).
8. Connect to a BNC monitor (event monitor only).
Default IP address: 192.168.1.82
TVR 46 Quick Start Guide
9. Connect the USB 3.0 flash drive to an optional
USB device such as a mouse, CD/DVD burner or
HDD.
10. Connect 2 HDMI video outputs to HDTV. The
HDMI connection supports both digital audio and
video.
11. Connect to a VGA monitor.
12. Connect to a network.
13. Connect up to 16 alarm inputs.
14. Connect to ground.
15. Connect a power cord to the recorder (included).
16. Power switch (on/off).
