TVR 15HD Quick Start Guide

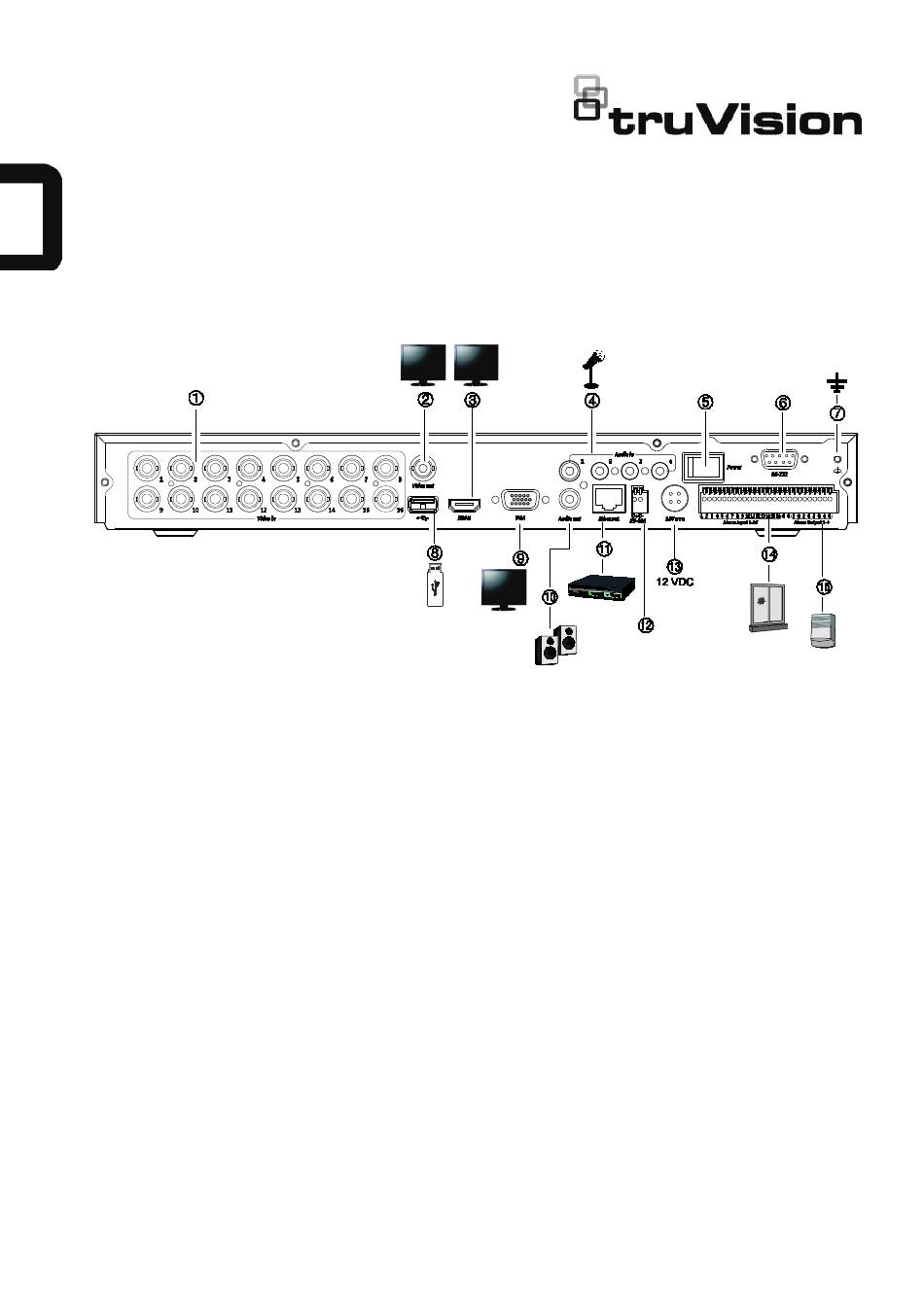

Figure 1: Back panel connections
1. Connect up to 16 analog cameras to BNC-type
connectors (depends on the recorder model).
2. Connect one CCTV monitor (BNC-type
connector).
3. Connect to a HDTV. The HDMI connection
supports both digital audio and video.
4. Connect four audio inputs to RCA connectors.
5. Power switch (on/off).
6. Connect to a RS-232 device.
7. Connect to ground.
Default IP address: 192.168.1.82
P/N 1073202-EN • REV E • ISS 15JUN21
8. Connect to an optional USB device such as a
mouse, CD/DVD burner or HDD.
9. Connect to a VGA monitor.
10. Connect to speakers for audio output.
11. Connect to a network.
12. Connect to a RS-485 device such as a PTZ
camera or a keypad.
13. Connect to the 12 VDC PSU (included).
14. Connect up to 16 alarm inputs.
15. Connect up to four alarm outputs.
Advertisement
Table of Contents
Related Manuals for TruVision 15HD
Summary of Contents for TruVision 15HD
- Page 1 TVR 15HD Quick Start Guide Figure 1: Back panel connections 1. Connect up to 16 analog cameras to BNC-type 8. Connect to an optional USB device such as a connectors (depends on the recorder model). mouse, CD/DVD burner or HDD.
- Page 2 In playback mode, play back a camera in the forward direction. In search mode, play back a selected video or view a snapshot. In PTZ mode, do an auto tour. TVR 15HD Quick Start Guide...
- Page 3 4. Audio On: Enable/disable audio output. with a motorized lens 5. Snapshot: Capture a snapshot of a video 11. Stream Information: Display the real-time frame image. rate, bit rate, resolution and video compression. 12. Close: Close the toolbar. TVR 15HD Quick Start Guide...
-
Page 4: Package Contents
Package contents The recorder has an express installation wizard that lets you easily configure basic The TruVision DVR 15HD (model TVR 15HD) recorder settings when first used. It configures is shipped with the following items: all cameras simultaneously. The configuration •... -
Page 5: Configuring The Recorder
Configures recording settings. Regularly used functions in live view can be quickly accessed by clicking the left-button of the mouse when its cursor is on the camera TVR 15HD Quick Start Guide... -
Page 6: Legal And Regulatory Information
© 2021 Carrier. All rights reserved. All rights reserved. Configures system settings. Specifications subject to change without prior notice. Trademarks and patents TruVision names and logos are a product brand of Aritech, a part of Configures storage Carrier. management. Trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products. - Page 7 For mer informasjon se: www.recyclethis.info. keräyspisteeseen. Lisätietoja sivuilla www.recyclethis.info. Pozbywanie się zużytego sprzętu W Unii Europejskiej produkty oznaczone tym symbolem mogą być TVR 15HD Quick Start Guide...
- Page 8 UTC Fire & Security B.V. απορρίπτεται σε δημόσια συστήματα απόρριψης στην Ευρωπαϊκή Kelvinstraat 7, 6003 DH Weert, The Netherlands. Κοινότητα. Δείτε την τεκμηρίωση του προϊόντος για συγκεκριμένες www.interlogix.com πληροφορίες που αφορούν τη μπαταρία. Η μπαταρία είναι φέρει TVR 15HD Quick Start Guide...
- Page 9 A bateria é nei comuni contenitori per lo smaltimento rifiuti, nell' Unione identificada por meio de este símbolo, que pode incluir a rotulação Europea. Controllate la documentazione del prodotto per le TVR 15HD Quick Start Guide...
- Page 10 Daha detaylı pil bilgisi için ürünün kataloğunu inceleyiniz. Bu sembolle işaretlenmiş piller Kadmiyum(Cd), Kurşun(Pb) ya da Civa(Hg) içerebilir. Doğru geri dönüşüm için ürünü yerel tedarikçinize geri veriniz ya da özel işaretlenmiş toplama noktlarına atınız. Daha fazla bilgi için: www.recyclethis.info. TVR 15HD Quick Start Guide...
