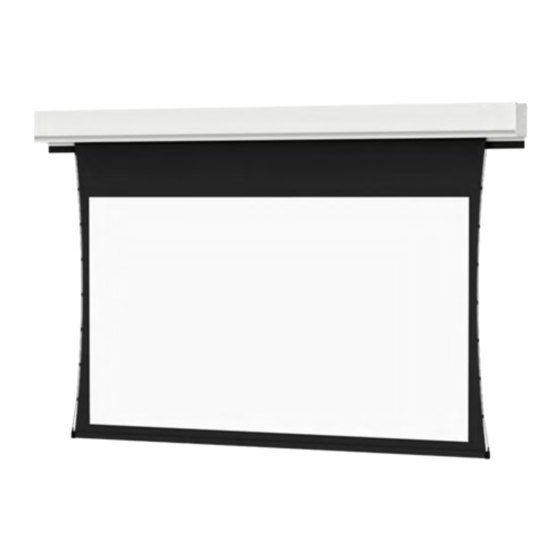

LEGRAND DA-LITE Tensioned Advantage Series User Manual
  1. Manuals
  2. Brands
  3. LEGRAND Manuals
  4. Projection Screen
  5. DA-LITE Tensioned Advantage Series
  6. User manual

LEGRAND DA-LITE Tensioned Advantage Series User Manual

Hide thumbs Also See for DA-LITE Tensioned Advantage Series:

Advertisement

Quick Links

Download this manual
Tensioned
Advantage
®
Series
USER MANUAL
200076 Rev C

Advertisement

loading
Need help?

Need help?

Do you have a question about the DA-LITE Tensioned Advantage Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LEGRAND DA-LITE Tensioned Advantage Series

Summary of Contents for LEGRAND DA-LITE Tensioned Advantage Series

  • Page 1 Tensioned Advantage ® Series USER MANUAL 200076 Rev C...
  • Page 2 TABLE OF CONTENTS Tensioned Advantage (With Closure Door) ® Previously Named: Tensioned Advantage Deluxe Electrol Tensioned Advantage Previously Named: Tensioned Advantage Electrol Tensioned Advantage with SightLine Tensioned Advantage (Over 14' W with Closure Door) Previously Named: Tensioned Large Advantage Deluxe Electrol Tensioned Advantage (Over 16' W) Previously Named: Tensioned Large Advantage Electrol...
  • Page 3 Tensioned Advantage ® (with Closure Door) USER MANUAL 200072 Rev C 88585...
  • Page 4 Incorrect reassembly can cause electric shock Da-Lite® is a registered trademark of Legrand AV. All when the appliance is used subsequently. rights reserved. 5. The use of an accessory attachment not recommended by the manufacturer may cause a risk of fire, electric shock, or injury to persons.
  • Page 5 PRE-INSTALLATION CASE INSTALLATION 1. Carefully unpack screen and remove outer wrapping 1. The case provides multiple attachment points for from case. bolts, cables, or threaded rod. Page 7 shows threaded rod installed. The variable position- 2. Make sure to recheck measurements of screen mounting bracket may be located anywhere along location before installation.
  • Page 6 SCREEN AND ROLLER ASSEMBLY INSTALLATION If your screen was shipped with the motor and roller already installed proceed to step 6. 1. Remove the screw from each end of the access door 7. Test installation by operating the screen several (front door) and open the door.
  • Page 7 SCREEN ADJUSTMENT NOTE: Use a screw driver or 5/32" Allen wrench to make adjustments. More Screen Drop Less Screen Drop 1. Place operating switch in “down” position. 1. Raise picture surface approximately two feet above desired level. 2. When the screen stops, turn the “down” limit knob (Fig.
  • Page 8 TENSIONED ADVANTAGE (WITH CLOSURE DOOR) INSTALLATION 7 1/4" 7 1/4" Case Length Variable Position Mounting Brackets Flat Bracket Mounting Method 7 5/8" 9 1/4" Motor End Electrical (Suggested) 3/8" Junction Box Threaded Rod (Not Included) 7 5/8" Attached to Mounting 7 1/4"...
  • Page 9 TENSIONED ADVANTAGE (WITH CLOSURE DOOR) INSTRUCTIONS FOR STANDARD CONTROL Front of Back of Wall Wall 120V Wiring Diagram NOTE: 20-24AWG Wire Switch Switch STOP Recommended For Connecting Wall DOWN NOTE: Electrical connections Switch to the Dual Motor Controller on left end of case. Red (Up) Black (Down) Use provided knockouts for all...
  • Page 10 TROUBLESHOOTING SYMPTOM CAUSE SOLUTION Verify 115-125V (or 220-240V). If insufficient voltage, Incorrect line voltage. rewire incoming electric line. Screen will not Blown facility fuse. Replace facility fuse. operate or will not go “down. ” Tripped facility circuit breaker. Reset facility circuit breaker. Motor does not hum.
  • Page 11 TROUBLESHOOTING (CONT.) SYMPTOM CAUSE SOLUTION Hinge is bound or has a foreign substance on it Check installation to free door. Clear any foreign which does not allow it to open by gravity. substance; i.e., paint or plaster from hinge. Door will not open. No power.
  • Page 12 LIMITED FIVE-YEAR WARRANTY ON DA-LITE PRESENTATION PRODUCTS Legrand AV Inc. warrants certain Da-Lite branded products to the original purchaser only, to be free from defects in materials and workmanship for a period of five (5) years from the date of purchase by the original purchaser;...
  • Page 13 Tensioned Advantage ® USER MANUAL 200069 Rev C 84215...
  • Page 14 The content herein is subject to change without notice or obligation of any kind. To the maximum extent permitted by applicable law, Legrand AV makes no representation or warranty, expressed or implied, regarding the information contained herein. Furthermore, Legrand AV assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.
  • Page 15 TENSIONED ADVANTAGE SUGGESTED METHODS OF INSTALLATION 6 1/16" Method 1 Audience 6 7/16" Side 7 3/4" Variable Position Mounting Bracket (See Table 1) 9 1/4" Audience Side Motor 6 1/16" 3/8" Threaded Rod (Not Included) Electrical Table 1 Attached To Junction Box Mounting Bracket Number of...
  • Page 16 TOOLS REQUIRED FOR INSTALLATION 1/2" and 5/16" Open Wrench 1/8" Hex Key or Socket Driver (included) PRE-INSTALLATION 1. Carefully unpack case from shipping carton. 5. For shipping purposes, foam is also inserted between the roller brackets and end caps (Figure 2.
  • Page 17 SCREEN AND ROLLER ASSEMBLY INSTALLATION Tools required for screen and roller assembly: #2 Phillips 1/2", 1/4" and 5/16" Screwdriver Open Wrench or Socket Driver Follow these steps if your screen and roller assembly was ordered separately from the case. 1. Remove the access door. First, remove the 2 end bracket ( junction box end) and secure with the screws from the ends using a #2 Phillips cotter pin (Figure 2).
  • Page 18 SCREEN AND ROLLER ASSEMBLY INSTALLATION (CONT.) Replacement Motor Instruction Rated torque of model DL45E-10/26 is 10 N/m with a duty cycle of 1 min. on / 3 min. off. Rated torque of model DL45EQ-6/28 is 6 N/m with a duty cycle of 1 min. on / 3 min. off. Motor is intended for use in Da-Lite screens incorporating a 3.00"...
  • Page 19 TENSIONED ADVANTAGE INSTALLATION FOR 120V SCREENS 120V Wiring Diagram IMPORTANT NOTE: The wall switch is REQUIRED to make any limit switch adjustments, EVEN if a third party control 3-conductor 20–24 gauge wire can be used in place of the system is used. Therefore, it is advised to wire the switch or S T O supplied RJ-14 6P4C cable to connect the wall switch.
  • Page 20 TENSIONED ADVANTAGE INSTALLATION FOR 220V SCREENS 220V Wiring Diagram with Operation & Limit Adjustment IMPORTANT NOTE: The wall switch is REQUIRED to make Wall Switch any limit switch adjustments, EVEN if a third party control system is used. Therefore, it is advised to wire the switch or 3-conductor 20–24 gauge wire can be used in place of the provide a 3-conductor connection that is accessible.
  • Page 21 TENSIONED ADVANTAGE INSTALLATION FOR 220V SCREENS (CONT.) 220V Wiring Diagram with European Style Wall Switch operation only and CANNOT be used to make limit switch adjustments. Therefore, it is advised to wire the limit Use 3-conductor 20–24 gauge wire for wall switch adjustment switch or provide a 3-conductor connection connections.
  • Page 22 OPTIONAL BUILT-IN VIDEO PROJECTOR INTERFACE CAUTION: The projector must be turned off IMPORTANT NOTE: The wall switch is REQUIRED to before connecting the trigger wires to the make any limit switch adjustments, EVEN if a third party projector. Failure to do so may damage the control system is used.
  • Page 23 SCREEN ADJUSTMENT For Screens with Standard Built-In Low Voltage Control or Optional VPI If your Tensioned Advantage was ordered as a complete unit, the up and down limits were pre-set by Da-Lite. If your screen and roller assembly was ordered separately from the case, or if general adjustment is needed, please follow the steps below and refer to the Wiring Diagram.
  • Page 24 OPERATION OF SCREEN “Up” Button Operation & Limit Adjustment Wall Switch “Stop” Button 1. Press “DOWN” button on screen switch and screen will deploy out of case in downward direction. “Down” Button 2. Press “STOP” button on screen switch and screen will stop if in movement.
  • Page 25 TROUBLESHOOTING SYMPTOM CAUSE SOLUTION Verify 115-125V (or 220-240V). If insufficient voltage, Incorrect line voltage. rewire incoming electric line. Blown fuse. Replace fuse. Tripped circuit breaker. Reset circuit breaker. Screen will not operate and motor does not hum. Check above. Tighten all loose wire connections. Correct any improper connections.
  • Page 26 LIMITED FIVE-YEAR WARRANTY ON DA-LITE PRESENTATION PRODUCTS Legrand AV Inc. warrants certain Da-Lite branded products to the original purchaser only, to be free from defects in materials and workmanship for a period of five (5) years from the date of purchase by the original purchaser; provided they are properly operated according to Da-Lite's instructions and are not damaged due to improper handling or treatment after shipment from the factory.
  • Page 27 Tensioned Advantage ® with SightLine™ USER MANUAL 210747 Rev A DL15520...
  • Page 28 The content herein is subject to change without notice or obligation of any kind. To the maximum extent permitted by applicable law, Legrand AV makes no representation or warranty, expressed or implied, regarding the information contained herein. Furthermore, Legrand AV assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.
  • Page 29 TENSIONED ADVANTAGE WITH SIGHTLINE SUGGESTED METHODS OF INSTALLATION 6 1/16" Method 1 Audience 6 7/16" Side 5 5/16" Variable Position 7 3/4" Mounting Bracket (See Table 1) 9 1/4" Audience Side Motor 6 1/16" 3/8" Threaded Rod (Not Included) Electrical Table 1 Attached To Junction Box...
  • Page 30 TOOLS REQUIRED FOR INSTALLATION 1/2" and 5/16" Open Wrench 1/8" Hex Key or Socket Driver (included) PRE-INSTALLATION 1. Carefully unpack case from shipping carton. 5. For shipping purposes, foam is also inserted between the roller brackets and end caps (Figure 2.
  • Page 31 SCREEN AND ROLLER ASSEMBLY INSTALLATION Tools required for screen and roller assembly: #2 Phillips 1/2", 1/4" and 5/16" Screwdriver Open Wrench or Socket Driver Follow these steps if your screen and roller assembly was ordered separately from the case. 1. Remove the access door. First, remove the 2 end bracket ( junction box end) and secure with the screws from the ends using a #2 Phillips cotter pin (Figure 2).
  • Page 32 SCREEN AND ROLLER ASSEMBLY INSTALLATION (CONT.) Replacement Motor Instruction Rated torque of model DL45E-10/26 is 10 N/m with a duty cycle of 1 min. on / 3 min. off. Rated torque of model DL45EQ-6/28 is 6 N/m with a duty cycle of 1 min. on / 3 min. off. Motor is intended for use in Da-Lite screens incorporating a 3.00"...
  • Page 33 TENSIONED ADVANTAGE WITH SIGHTLINE INSTALLATION FOR 120V SCREENS 120V Wiring Diagram IMPORTANT NOTE: The wall switch is REQUIRED to make any limit switch adjustments, EVEN if a third party control 3-conductor 20–24 gauge wire can be used in place of the system is used.
  • Page 34 TENSIONED ADVANTAGE WITH SIGHTLINE INSTALLATION FOR 220V SCREENS 220V Wiring Diagram with Operation & Limit Adjustment IMPORTANT NOTE: The wall switch is REQUIRED to make Wall Switch any limit switch adjustments, EVEN if a third party control system is used. Therefore, it is advised to wire the switch or 3-conductor 20–24 gauge wire can be used in place of the provide a 3-conductor connection that is accessible.
  • Page 35 TENSIONED ADVANTAGE WITH SIGHTLINE INSTALLATION FOR 220V SCREENS (CONT.) 220V Wiring Diagram with European Style Wall Switch operation only and CANNOT be used to make limit switch adjustments. Therefore, it is advised to wire the limit Use 3-conductor 20–24 gauge wire for wall switch adjustment switch or provide a 3-conductor connection connections.
  • Page 36 OPTIONAL BUILT-IN VIDEO PROJECTOR INTERFACE CAUTION: The projector must be turned off IMPORTANT NOTE: The wall switch is REQUIRED to before connecting the trigger wires to the make any limit switch adjustments, EVEN if a third party projector. Failure to do so may damage the control system is used.
  • Page 37 SCREEN ADJUSTMENT For Screens with Standard Built-In Low Voltage Control or Optional VPI If your Tensioned Advantage with SightLine was ordered as a complete unit, the up and down limits were pre-set by Da-Lite at 24". The desired amount of cable drop can be adjusted according to the instructions below. If your screen and roller assembly was ordered separately from the case, or if general adjustment is needed, please follow the steps below and refer to the Wiring Diagram.
  • Page 38 OPERATION OF SCREEN “Up” Button Operation & Limit Adjustment Wall Switch “Stop” Button 1. Press “DOWN” button on screen switch and screen will deploy out of case in downward direction. “Down” Button 2. Press “STOP” button on screen switch and screen will stop if in movement.
  • Page 39 TROUBLESHOOTING SYMPTOM CAUSE SOLUTION Verify 115-125V (or 220-240V). If insufficient voltage, Incorrect line voltage. rewire incoming electric line. Blown fuse. Replace fuse. Tripped circuit breaker. Reset circuit breaker. Screen will not operate and motor does not hum. Check above. Tighten all loose wire connections. Correct any improper connections.
  • Page 40 LIMITED FIVE-YEAR WARRANTY ON DA-LITE PRESENTATION PRODUCTS Legrand AV Inc. warrants certain Da-Lite branded products to the original purchaser only, to be free from defects in materials and workmanship for a period of five (5) years from the date of purchase by the original purchaser; provided they are properly operated according to Da-Lite's instructions and are not damaged due to improper handling or treatment after shipment from the factory.
  • Page 41 Tensioned Advantage ® (Over 14' W with Closure Door) USER MANUAL 200073 Rev C 35898...
  • Page 42 The content herein is subject to change without notice or obligation of any kind. To the maximum extent permitted by applicable law, Legrand AV makes no representation or warranty, expressed or implied, regarding the information contained herein. Furthermore, Legrand AV assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.
  • Page 43 TOOLS REQUIRED FOR CASE INSTALLATION INSTALLATION 1. The case provides multiple attachment points for bolts, cables, or threaded rod. Page 5 shows threaded rod installed. The variable position- mounting bracket may be located anywhere along the length of the case. It is recommended to keep the brackets spaced evenly enough to distribute the weight of the screen.
  • Page 44 TENSIONED ADVANTAGE (OVER 14' W WITH CLOSURE DOOR) INSTALLATION (Suggested) ½" Threaded Rod (Not Screen Included) Attached Roller 9 1/8" To Mounting Bracket Audience Side 12 3/16" 11 7/16" 11" Door Roller Finished Self-Trimming Self-Trimming Access Door Ceiling Flange Flange Closing Door 13 1/8"...
  • Page 45 TENSIONED ADVANTAGE (OVER 14' W WITH CLOSURE DOOR) INSTRUCTIONS NOTE: 20-24AWG Wire Recommended For Connecting Wall 120V Switch to the Dual Motor Controller Wiring Front Back Diagram of Wall of Wall White Switch Switch (Common) NOTE: Electrical connections Black on left end of case. (Down) (Up) White (Common)
  • Page 46 SCREEN AND ROLLER ASSEMBLY INSTALLATION If your screen was shipped with the motor and roller already installed proceed to step 9. 1. Remove four bolts from ends of door assembly (2 10. Test installation by operating the screen several bolts on each end) (Fig. 1). This will allow the door times.
  • Page 47 SCREEN ADJUSTMENT Less Screen Drop Surface travel is stopped automatically in the fully opened and closed positions by limit switches that 1. Raise picture surface approximately two feet are properly adjusted at Da-Lite. Should it be above necessary to adjust for more or less drop of picture, desired level.
  • Page 48 TROUBLESHOOTING SYMPTOM CAUSE SOLUTION Verify 115-125V (or 220-240V). If insufficient voltage, Incorrect line voltage. Screen will not rewire incoming electric line. operate or will not go “down. ” Blown facility fuse. Replace facility fuse. Motor does not hum. Tripped facility circuit breaker. Reset facility circuit breaker.
  • Page 49 TROUBLESHOOTING (CONT.) SYMPTOM CAUSE SOLUTION Spring has an obstruction not Check installation to free door. allowing door to open. Clear any foreign substance from spring. Door will not open. No power. See above. Mis-adjusted door motor limit. Adjust door motor limit. Call Da-Lite for instruction. Door does not close.
  • Page 50 LIMITED FIVE-YEAR WARRANTY ON DA-LITE PRESENTATION PRODUCTS Legrand AV Inc. warrants certain Da-Lite branded products to the original purchaser only, to be free from defects in materials and workmanship for a period of five (5) years from the date of purchase by the original purchaser; provided they are properly operated according to Da-Lite's instructions and are not damaged due to improper handling or treatment after shipment from the factory.
  • Page 51 Tensioned Advantage ® (Over 16' W) USER MANUAL 200074 Rev C 35890...
  • Page 52 The content herein is subject to change without notice or obligation of any kind. To the maximum extent permitted by applicable law, Legrand AV makes no representation or warranty, expressed or implied, regarding the information contained herein. Furthermore, Legrand AV assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.
  • Page 53 TOOLS REQUIRED FOR PRE-INSTALLATION INSTALLATION Carefully unpack case from shipping crate. Set aside the Installation Kit. Items inside will be used during installation. Make sure to recheck measurement of case for proper installation clearance. Remove any protective foam from case. 3/4"...
  • Page 54 SCREEN AND ROLLER ASSEMBLY INSTALLATION Tools required for screen and roller assembly: 1/8" Hex Key 9/16" Open Wrench 5/32" Hex 1/2" Open Wrench (included) or Socket Driver or Socket Driver If your screen was shipped with the motor and roller already installed proceed to step 7. 1.
  • Page 55 TENSIONED ADVANTAGE (OVER 16' W) INSTALLATION (Suggested) 1/2" Threaded Rod (Not Included) Attached to Mounting Bracket 1/8" Electrical Junction Screen Roller 3/16 " 11" Audience 11 7/16" Side Self-Trimming Flange Self-Trimming Access Door Flange Finished 3/16" 15/16" Ceiling " Variable Position Mounting Brackets Electrical Junction...
  • Page 56 SCREEN ADJUSTMENT Surface travel is stopped automatically in the fully opened and closed positions by limit switches that are properly adjusted at Da-Lite. Should it be necessary to adjust for more or less drop of picture, proceed in the following manner: NOTE: Use a screw driver or 5/32"...
  • Page 57 120V WIRING DIAGRAM NOTE: 20-24 AWG wire recommended for connecting wall switch to low voltage controller. CAUTION: Do not use 3-position high voltage rocker switch with this unit! This will damage the low voltage control board. ATTENTION: NE UTILISEZ PAS l'interrupteur à bascule fourni avec l'écran.
  • Page 58 240V WIRING DIAGRAM NOTE: 20-24 AWG wire recommended for connecting wall switch to low voltage controller. CAUTION: Do not use 3-position high voltage rocker switch with this unit! This will damage the low voltage control board. ATTENTION: NE UTILISEZ PAS l'interrupteur à bascule fourni avec l'écran.
  • Page 59 TROUBLESHOOTING SYMPTOM CAUSE SOLUTION Verify 115-125V (or 220-240V). If insufficient voltage, Incorrect line voltage. rewire incoming electric line. Blown fuse. Replace fuse. Tripped circuit breaker. Reset circuit breaker. Screen will not operate and motor does not hum. Check above. Tighten all loose wire connections. Correct any improper connections.
  • Page 60 LIMITED FIVE-YEAR WARRANTY ON DA-LITE PRESENTATION PRODUCTS Legrand AV Inc. warrants certain Da-Lite branded products to the original purchaser only, to be free from defects in materials and workmanship for a period of five (5) years from the date of purchase by the original purchaser; provided they are properly operated according to Da-Lite's instructions and are not damaged due to improper handling or treatment after shipment from the factory.
  • Page 61 EMEA +31 495 580 840 av.emea.sales@legrand.com APAC +852 2145 4099 av.asia.sales@legrand.com ©2021 Legrand AV Inc. 200076 Rev C 11/21 Da-Lite is a registered trademark of Legrand AV Inc. All other brand names or marks are used for identification purposes and are...
