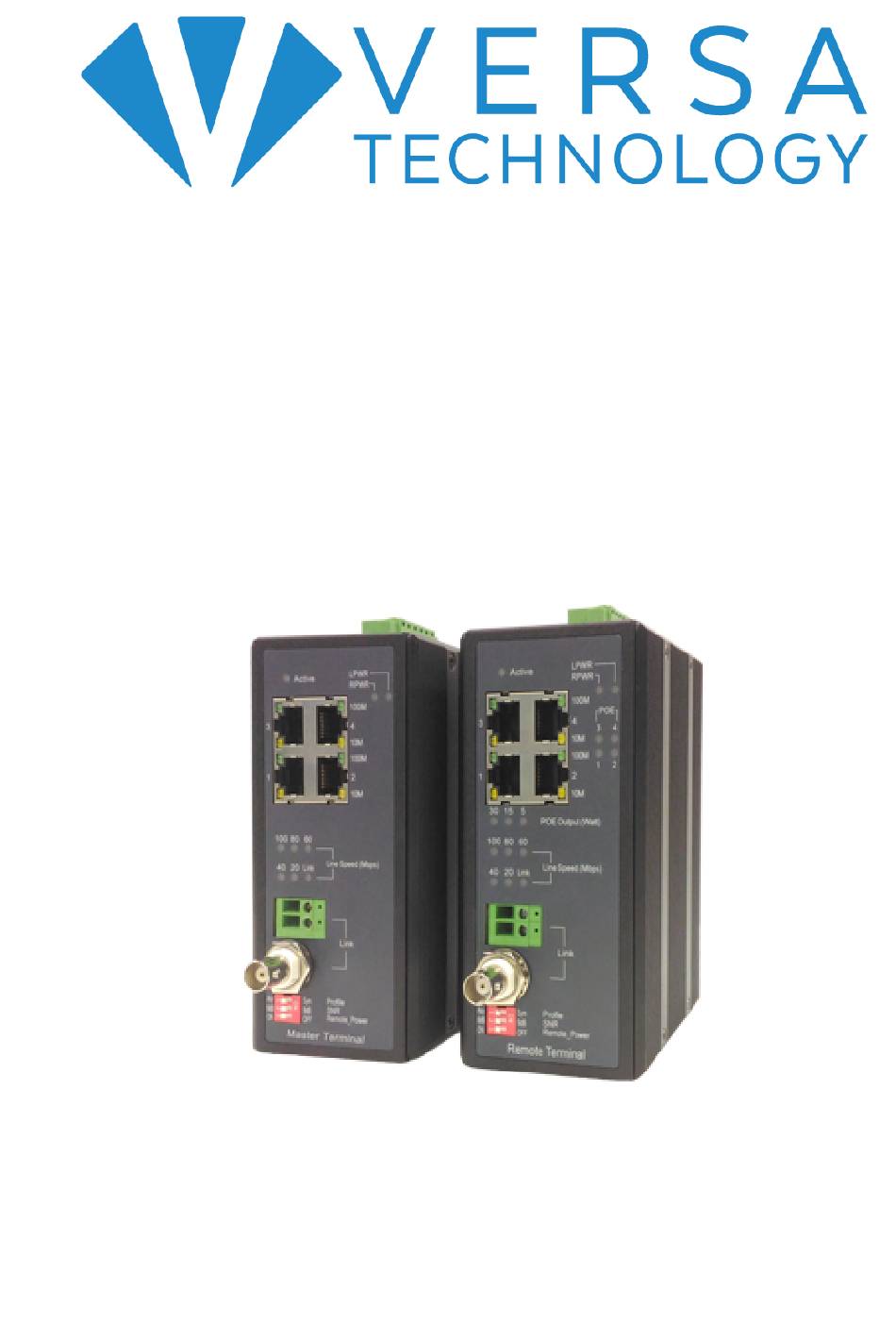

- Page 1 Long Reach PoE Extenders VX-701-CO & VX-701-RT User Manual Updated: 2/12/2018 Copyright by Versa Technology Inc.
-
Page 2: Table Of Contents
Contents Overview Product Introduction ......................2 1.1 Description ..........................2 1.2 Features ............................ 2 1.3 Specifications ..........................3 1.4 Applications ..........................4 1.5 Reference Performance Data ....................5 HW Description ........................6 2.1 Applications ..........................6 2.2 Product Outlook ........................6 2.3 LED Definition ........................... 7 2.3.1 LED indicators ........................7 2.3.2 LED Display Status ......................8 2.4 Power ............................9 2.5 3-Position DIP Switch ......................10... -
Page 3: Product Introduction
1. Product Introduction 1.1 Description Versa Technology’s VX-701-CO and VX-701-RT Long Reach PoE Extenders are designed to extend the reach of Data and IEEE 802.3at Power over Ethernet beyond its reach of 100m for the network infrastructure. The solution works in pairs for point-to-point connectivity. The master unit (VX-701-CO) at the central site can transmit data and power over a single pair of telephone grade UTP wires up to 1,200m or Coaxial cable up to 1,800m. On the receiving end is VX-701-RT Long Reach PoE Extender with 4 PoE (PSE) ports (CPE). Without the need for local power supply, each VX-701-RT is equip with four 10/100Base-TX IEEE 802.3at PoE Ports for total power budget of 30W that can support any remote IEEE 802.3at/af powered device (PD). It enables centralized management of power supply from a single location for easy, efficient and cost-effective installation. The VX-701-RT can provide 30W of PoE power to each ethernet interface if local power is available. Versa’s Long Reach PoE Extenders are an ideal PoE extension solution for service providers to deploy networking applications in public areas that require Wireless AP, IP Phones and IP Cameras. 1.2 Features Complies to IEEE 802.3at PoE Industrial-Grade Extenders for applications in harsh environment Simultaneous transmission of Ethernet data and PoE Power over UTP wire or coaxial cable Centralized management of power supply Eliminated the need for local power supply at remote sites Easy cabling for quick installation Long transmission distance up to 1000 m Quick deployment and easy maintenance. Flexible and efficient power management Automatically switch between VDSL2 Profile 30a and 17a to utilize bandwidth performance Dip Switch provides 30W PoE power to ethernet interface if local power is available... -
Page 4: Specifications
1.3 Specifications Standards Support: Hardware Interfaces: l VDSL2 ITU-T G.993.2 Terminal Block for Copper Port l VDSL2 Profiles: 17a and 30a BNC Female for Coaxial Port 4 x RJ-45 10/100Base-TX IEEE 802.3at PoE Protocol Support Port l Transparent bridging to higher layer protocols 3 Position Dip Switch Selectable target band plan (Asymmetric Operating Environment or Symmetric) l Operating Temperature: -40°C to 75°C Selectable target SNR margin (6dB or 9dB) l Storage Temperature: -40°C to 85°C Selectable Remote Power (ON) or Local l Humidity: 10% - 95% (non-condensing) Power (OFF) Physical LED Indicators: Hardened aluminum case, IP30 l Active: System Status Dimensions: 62 x 135 x 106.5 mm l LPWR/RPWR: Local Power/Remote Power Installation: DIN-Rail, Panel Rack Mounting l PoE: PoE Port Status l Available PoE Output (Watts): 5/15/30 Regulatory Compliance l Line Speed (Mbps): Link/20/40/60/80/100 FCC Part 15 Class B... -
Page 5: Applications
1.4 Applications The solution works in pairs for point-to-point connectivity. The master unit (VX-701-CO) at the central site can transmit data and power over a single pair of telephone grade UTP wires up to 1,200m or Coaxial cable up to 1,800m. On the receiving end is VX-701-RT Long Reach PoE Extender with 4 PoE (PSE) ports (CPE). Without the need for local power supply, each VX-701-RT is equip with four 10/100Base-TX IEEE 802.3at PoE Ports for total power budget of 30W that can support any remote IEEE 802.3at/af powered device (PD). It enables centralized management of power supply from a single location for easy, efficient and cost-effective installation. The VX-701-RT can provide 30W of PoE power to each ethernet interface if local power is available. Versa’s Long Reach PoE Extenders are an ideal PoE extension solution for service providers to deploy networking applications in public areas that require Wireless AP, IP Phones and IP Cameras. -
Page 6: Reference Performance Data
1.5 Reference Performance Data UTP – 24AWG Copper Wire SNR 6dB 6dB Profile Asymmetrical Symmetrical Upstream Downstream Upstream Downstream Distance Line Rate Line Rate Line Rate Line Rate PoE output power (Mbps) (Mbps) (Mbps) (Mbps) 300 m 100 100 100 30 W 400 m 20 W 600 m 15 W 800 m 7 W 1,000 m 5 W 1,200 m 4 W Coaxial Cable SNR 6dB 6dB Profile Asymmetrical... -
Page 7: Hw Description
2. Hardware Description 2.1 Applications The VX-701-CO and VX-701-RT are Long Reach PoE Extenders with four 10/100Base-TX IEEE 802.3at PoE Ports. This chapter shows the product outlook and Hardware interfaces. 2.2 Product Outlook CO Faceplate CPE Faceplate... -
Page 8: Led Definition
Power is transmitted over VDSL interface 4 x PoE(CPE) Green-off No power is transmitted over Ethernet port Green-on Power is transmitted over Ethernet port Link LED Green-off VDSL link not link up Slow flashing VDSL port is under handshaking Fast flashing VDSL port has data transmission or reviving Green-on VDSL port link up Link Speed, Green-on Displays VDSL link speed in Mbps 5 x LEDs (100M/80M/60M/40M/20M), if 80M LED is on then VDSL downstream link speed is in the range 80Mbps to 100Mbps. PoE Output Green-on Displays PoE PSE available output power in (Watt), 3 x Watt (30W/15W/5W) – Remote Terminal LEDs, (CPE) Only 4 x RJ-45 Green On: Ethernet link up and speed is 100M Flashing: data transmission or receiving Off: Ethernet is no link up Yellow On: Ethernet link up and speed is 10M Flashing: data transmission or receiving Off: Ethernet is no link up Table 2-1 VX-701-CO and VX-701-RT LED indications... -
Page 9: Led Display Status
2.3.2 LED Display Status According to your operation environment and power allocation, the display status of PoE Output LED will have three situations for VX-701-RT (CPE) device. (1) When the PoE power voltage is above or equal 50V (>=50V), the PoE output is normally working and LED display is stable status. (2) If the voltage between 44V and 50V, the PoE output is warning status and LED display is blinking. The device will cut off PoE Output in port-2, port-3 and port-4 automatically to protect the device. (3) When detected under 44V low voltage (<44V), the PoE output is not working and LED is off status. Voltage PoE Output Status LED Display PoE Output Mode >= 50 Normal Stable Keeping working 44V-50V Warning Blinking Cut off Port-2, Prot-3, Port-4 Keeping Port-1 < 44V No Output Off... -
Page 10: Power
2.4 Power Input: VX-701-CO (CO): Provide two redundancy local input powers; power voltage is 48VDC to 57VDC, terminal Block. VX-701-RT (CPE): Provide two redundancy local input powers; power voltage is 48VDC to 57VDC, terminal Block. Output: VX-701-CO (CO): Provide 96VDC output to VDSL Line (Remote Power Feeding) to support remote power to CPE. VX-701-RT (CPE): Ethernet port provide 4-port PoE PSE function to 802.3at (30W). Power Consumption: VX-701-CO (CO): Max. 65W with Remote Power function enable, provide CPE PoE PSE 30W. VX-701-RT (CPE): Max. 45W with Remote Power function enable, provide CPE PoE PSE 30W Protection: Provide Over-Current protection and resettable smart Short-Circuit protection on both VDSL interface and PoE PSE interface. Two power level output: The function is set to detect CPE function. When CO cannot detect CPE, output is 48VDC to VDSL line. When CO detected that the CPE is successfully connected, POV output is 96VDC to VDSL line. -
Page 11: 3-Position Dip Switch
2.5 3-Position DIP Switch Versa’s VX-701-CO and VX-701-RT are equipped with DIP Switch selection, which can allow users to select the parameters in order to meet the needs of different applications. The parameter options should be set identically on both CO and CPE sides. Option Profile SNR Remote Power Asymmetrical 6dB Enable Off Symmetrical 9dB Disable 1. Regulatory Compliance VX-701-CO and VX-701-RT are designed to comply with the following standards: FCC Part 15 Class B EN60950 2. Installation/Operation [Precautions] IMPORTANT! Disconnect all power from devices before attempting installation Disconnect power to the devices before any I/O and DIP configuration DO NOT connect VX-701-CO and VX-701-RT to the same power source. Possible damages may be caused to devices due to power loop back through the PoE connections via copper wire.
