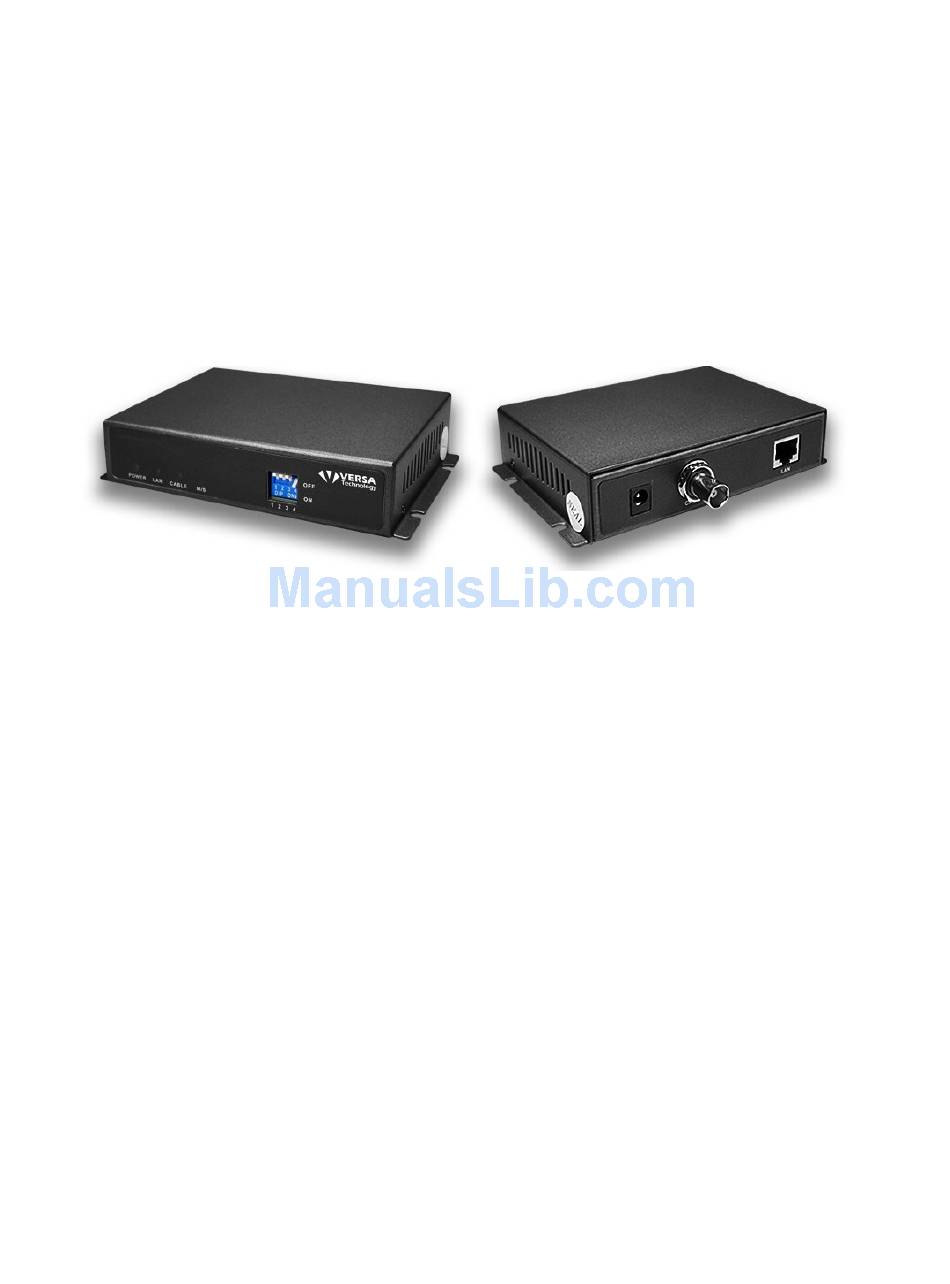

- Page 1 VX-160COAX Coaxial PoE Ethernet Extender MASTER / SLAVE INDOOR UNITS User Manual Ver 1.0...
- Page 2 The remote unit regenerates the power and provides the PoE capability to power up the f urthest remote PD device. Up to 15.4 watts can be supplied to the PD device with 100m Etherent cable when powered by a 48V Power adaptor. The VX-160COAX system supports wall-mount feature.
-
Page 3: Technical Specifications
3. Features Coaxial PoE Ethernet Extender for 10/100M Fast Ethernet interfaces Built-in BNC Connectors Maximum 3000ft distance for 5C2V Coaxial cable Line rate up to 60 Mbps full duplex Dip Switches for line rate settings with Slave following Master ... - Page 4 LINE: 2-wire Line Connection Status LAN: Data Activity of LAN Port M/S: LED ON indicating Slave mode Physical Dimension: VX-160COAX: 120 x 90 x 28 (mm) Operating Environment: Humidity: 5% to 95% non-condensing Temperature: 0 ~ 50 degree C ...
-
Page 5: Led Indicators
6. LED Indicators On the front panel of VX-160COAX, there are 4 LED indicators as the following POWER: “Green On” indicates power is on and normal. LAN: “Green On” indicates Ethernet LAN port is in connection. “Flashing” indicates Ethernet LAN data activities. - Page 6 8. Data Rates vs Distances vs PoE power VX-160COAX Slave VX-160COAX Master LAN Switch Ethernet Coaxial cable Ethernet Local Power PSE Power PSE OutputPower Performance for 5V2C cable with 48V Power Adaptor Max. PSE Output Line Rate (Mbps) Distance B (Meter)
