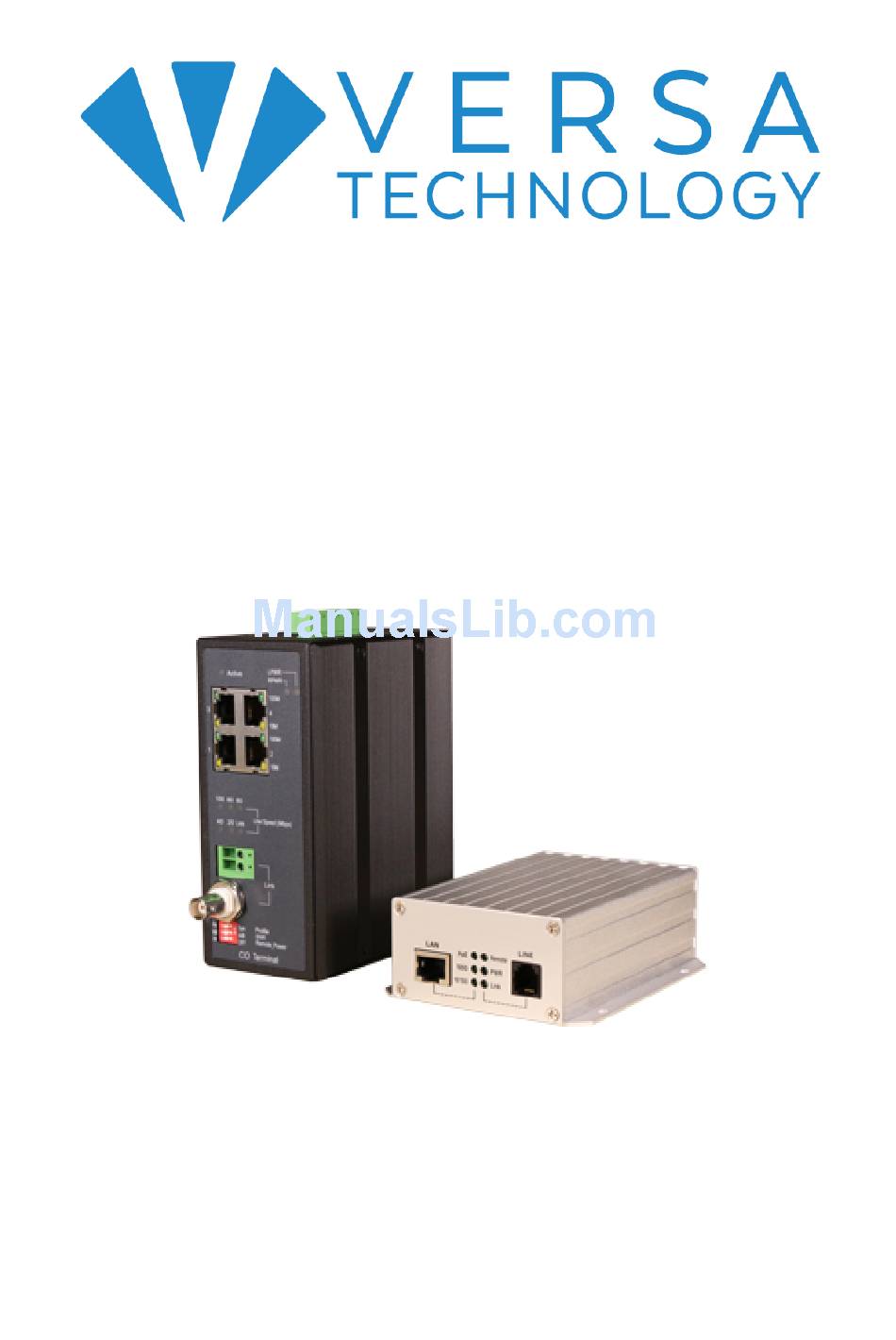

- Page 1 Long Reach PoE Extenders VX-701-CO & VX-700-RT User Manual Updated: 2/12/2018 Copyright by Versa Technology Inc.
-
Page 2: Table Of Contents
Contents Overview 1. Product Introduction ....................4 1.1 Product Overview ......................4 1.2 Features .......................... 5 1.3 Specifications ........................6 1.4 Applications ........................7 2. HW Description ......................8 2.1 LED Definition ......................... 8 2.2 Product Outlook ......................9 2.3 Power ..........................10 2.4 Dip Switch ........................11 3. Regulatory Compliance .................... 1 1 4. Installation/Operation [Precautions] ................ 1 1... -
Page 3: Product Introduction
VX-700LRP-KIT works in pairs for point to point connectivity. The VX-700-RT can be connected to a VX-701-CO Long Reach POE Extender (CO). The master unit at the central site (VX-701-CO) can transmit data and power over a single pair of telephone grade UTP wire up to 1,200m. -
Page 4: Specifications
Specifications (VX-700-RT) Protocol Support Hardware Interfaces: Transparent bridging to higher layer protocols RJ-11 for Copper Port Operating Environment 1 x RJ-45 10/100/1000Base-T IEEE 802.3at POE Operating Temperature: -20°C to 65°C Port Storage Temperature: -40°C to 85°C LED Indicators: Humidity: 10% - 95% (non-condensing) POE: POE Port Status ON/OFF Physical 1000: ON/OFF Hardened aluminum case 10/100: ON/OFF Dimensions: 90.5 mm x 40 mm x 117mm (Estimated) Power: ON/OFF Installation: Wall Mounting or Magnet Kit (Optional) Remote: Remote Power ON/OFF Regulatory Compliance Copper Port Link: ON/OFF/Blinking Power Supply: FCC Part 15 Class A Remotely powered by 708MP 8-Port Long Reach EN60950 POE Managed Switch or 701MP Long Reach POE Extender (CO) Performance Terminal Block for external AC to DC adaptor (For local power scenario) Power over Copper, 24AWG copper wire Power Consumption: 40 Watts maximum (Estimated Distance... - Page 5 Specifications (VX-701-CO) Standards Support: Hardware Interfaces: l VDSL2 ITU-T G.993.2 Terminal Block for Copper Port l VDSL2 Profiles: 17a and 30a BNC Female for Coaxial Port 4 x RJ-45 10/100Base-TX IEEE 802.3at PoE Protocol Support Port l Transparent bridging to higher layer protocols 3 Position Dip Switch Selectable target band plan (Asymmetric Operating Environment or Symmetric) l Operating Temperature: -40°C to 75°C Selectable target SNR margin (6dB or 9dB) l Storage Temperature: -40°C to 85°C Selectable Remote Power (ON) or Local l Humidity: 10% - 95% (non-condensing) Power (OFF) Physical LED Indicators: Hardened aluminum case, IP30 l Active: System Status Dimensions: 62 x 135 x 106.5 mm l LPWR/RPWR: Local Power/Remote Power Installation: DIN-Rail, Panel Rack Mounting l PoE: PoE Port Status l Available PoE Output (Watts): 5/15/30...
-
Page 6: Applications
Applications The solution works in pairs for point-to-point connectivity. It features the VX-701-CO Long Reach PoE Extender (CO), the master unit at the central site that can transmit data and power over a single pair of telephone grade UTP wire up to 1,200m or coaxial cable up to 1,800m. On the receiving end is the VX-700-RT Long Reach PoE Extender with 1 PoE (PSE) port (CPE). Without the need for local power supply, each VX-700-RT is equipped with a 10/100Base-TX IEEE 802.3at PoE Port for a total power budget of 30W that can support any remote IEEE 802.3at/af powered device (PD) like Wi-Fi Access Point, IP Phone, and IP Camera. - Page 7 Reference Performance Data UTP – 24AWG Copper Wire SNR 6dB 6dB Profile Asymmetrical Symmetrical Upstream Downstream Upstream Downstream Distance Line Rate Line Rate Line Rate Line Rate PoE output power (Mbps) (Mbps) (Mbps) (Mbps) 300 m 100 100 100 30 W 400 m 20 W 600 m 15 W 800 m 7 W 1,000 m 5 W 1,200 m 4 W Coaxial Cable SNR 6dB 6dB Profile Asymmetrical...
-
Page 8: Hw Description
2. HW Description Overview The VX-700-RT is a Long Reach PoE Extender with one 10/100/1000Base-TX IEEE 802.3at PoE Ports. 2.2 Product outlook Picture 2.1 Front Panel Picture 2.2 Rear Panel... - Page 9 2.3 LED Definition The LED indicators provide instant feedback to users; the behaviors of the LED are given in below table: Interface LED Name Indicator/Color Condition PoE Green-off PoE Port is off Green-on PoE Port is on LAN 1000 Green-off There is no gigabit connection Flashing Green-on When there is a gigabit connection made through LAN Port 10/100 Green-off When LAN port operating speed is not 10/100 Mb/s Flashing Green-on When LAN port operating speed is 10/100 Mbps Remote Green-off No power is transmitted over copper interface LINE Green-on Power is transmitted over copper interface PWR Green-off When the device is powered off Green-on When the device is powered on Slow flashing Cooper port is under handshaking...
-
Page 10: Power
2.4 Power Input: VX-700-RT (CPE): Provide local input power via terminal block; power voltage is 48VDC to 57VDC. Output: VX-700-RT (CPE): Ethernet port provides PoE PSE function to 802.3at (30W). Power Consumption: VX-700-RT (CPE): Max. 40W with Remote Power function enable, provide CPE PoE PSE 30W Protection: Provide Over-Current protection and resettable smart Short-Circuit protection on both Copper interface and PoE PSE interface. Two power level output: The function is set to detect CPE function. When CO cannot detect CPE, output is 48VDC to Copper line. When CO detected that the CPE is successfully connected, Power over Copper output is 96VDC to Copper line. 3. Regulatory Compliance The VX-700-RT is designed to comply with the following standards: FCC Part 15 Class B EN60950... -
Page 11: Installation/Operation [Precautions]
4. Installation/Operation [Precautions] IMPORTANT! Disconnect all power from devices before attempting installation Disconnect power to the devices before any I/O and DIP configuration DO NOT connect VX-700-RT and the VX-701-CO to the same power source. Possible damages may be caused to devices due to power loop back through the PoE connections via copper wire. Connecting the VX-700-RT to the VX-701-CO (Point-to-Point) 1. Make sure all power sources are disconnected from the VX-701-CO and the VX-700-RT. 2. Set the dip switch on VX-701-CO. 3. Connect one end of copper pair to RJ-11 jack of the VX-701-CO and the other end to RJ-11 jack of the VX-700-RT. 4. Connect VX-701-CO to the power source. 5. Data and power will be transmitted from the VX-701-CO to the VX-700-RT.
