Page 1: User Manual

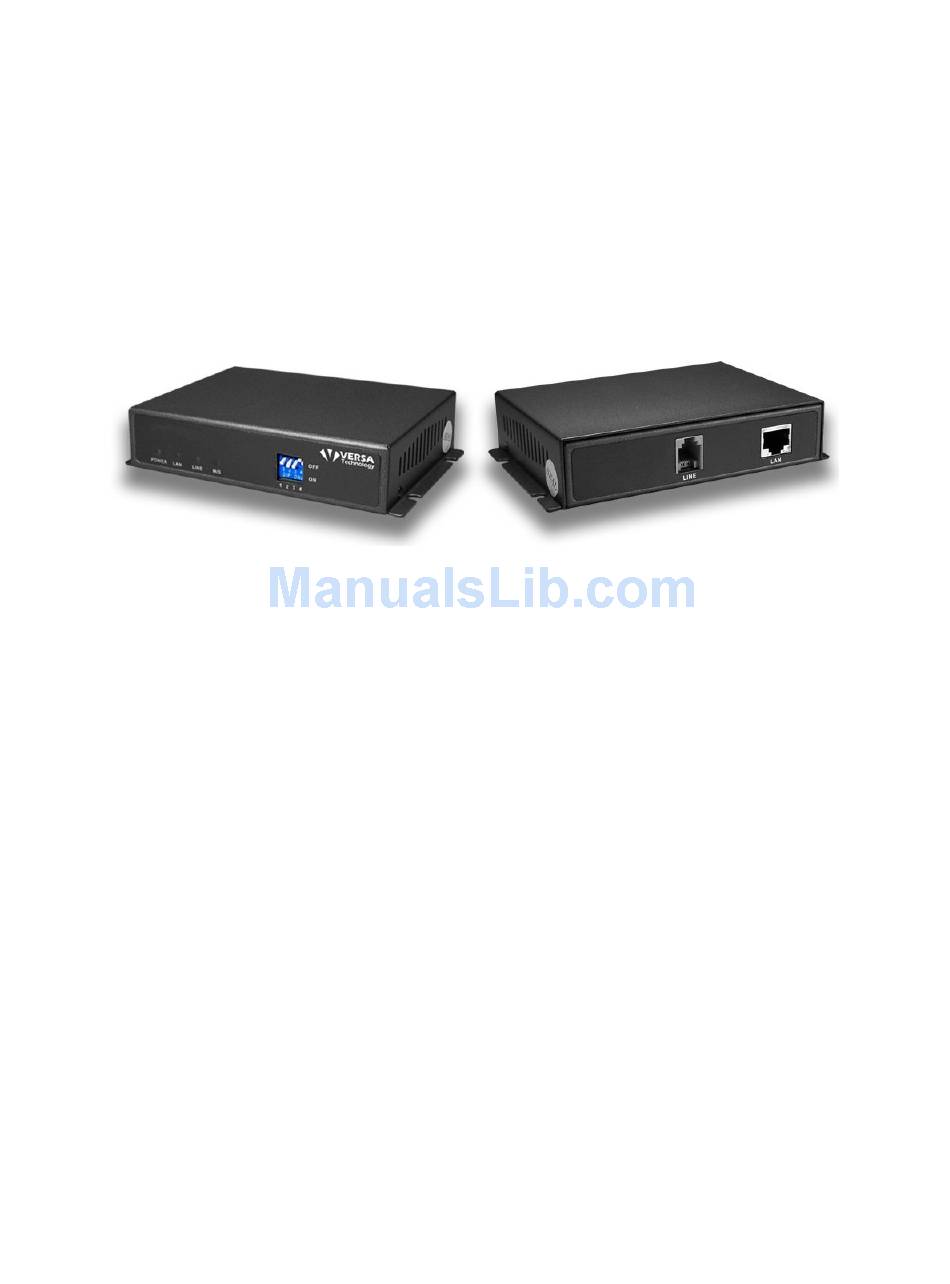

VX-160POE PoE Ethernet Extender MASTER / SLAVE INDOOR UNITS User Manual Ver 1.1... - Page 2 The VX-160POE system supports the wall-mount feature. With the RJ11 connector for a 2-wire line connection, the VX-160POE master unit connects with the slave unit up to 300m distance for AWG24 line when using a 48V high power adaptor. Users may select different data rates from dip switches on the front panels for different line gauges and distance s .
-
Page 3: Technical Specifications
Power is ON LINE: Connection Status LAN: Data Activity of LAN Port M/S: LED OFF indicating Master mode Local Power Adaptor: INPUT: 110/240VAC @ 50-60Hz OUTPUT: 48VDC 65W Physical Dimension: VX-160POE: 120 x 90 x 28 (mm) ... - Page 4 LINE: 2-wire Connection Status LAN: Data Activity of LAN Port M/S: LED ON indicating Slave mode Physical Dimension: VX-160POE slave indoor: 120 x 90 x 28 (mm) Operating Environment: Humidity: 5% to 95% non-condensing Temperature: 0 ~ 50 degree C ...
-
Page 5: Led Indicators
6. LED Indicators On the front panel of VX-160POE, there are 4 LED indicators as the following POWER: “Green On” indicates power is on and normal. LAN: “Green On” indicates Ethernet LAN port is in connection. “Flashing” indicates Ethernet LAN data activities. - Page 6 8. Data Rates vs Distances vs PoE power VX-160POE VX-160POE LAN Switch Slave Master Ethernet 2-wire Line Ethernet Local Power PSE Power PSE Output Power Performance for AWG24 line with 48V Power Adaptor Max. PSE Output Line Rate (Mbps) Distance B (Meter)
