- Page 1 VX-VEB160G4 (V3) 300Mbps Ethernet Extender Kit User Manual Version 1.0 08/05/2020...
-
Page 2: Table Of Contents
Installation Accessory ..................... 3 DIN Rail Mounting ......................4 LED Definition ........................5 LED Indicators ......................... 5 Power Connection ......................... 6 4-Position DIP Switch ......................7 Description of Setting ......................8 VX-VEB160G4(V3) LITE INDUSTRIAL VDSL2 ETHERNET EXTENDER - UM V1.0... -
Page 3: Introduction

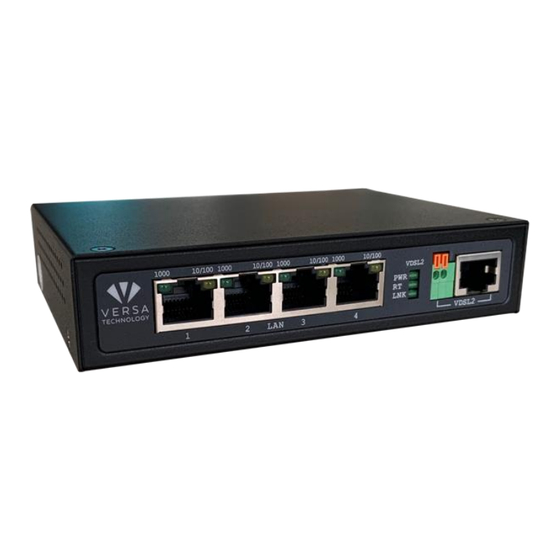

The VX-VEB160G4 (V3) is equipped with four Gigabit Ethernet Ports (RJ-45 connector) and one VDSL2 port (RJ-45 connector or 2-PIN Terminal Block) in metal enclosure for easy installation in harsh environment. -
Page 4: Specifications
Complying with ITU-T ⚫ Sync - Idle / Trained / Link G993.1/G993.2/G993.5/G.997.1/G.998 Power supply G.INP ⚫ VX-VEB160G4 (V3)-AC: 12V DC over 2.1mm DC ⚫ On-board surge protection Jack (Commercial Grade External Power Adaptor ⚫ included) LAN Interface VX-VEB160G4 (V3)-DC: 12~24V (7.5-30 Max) ⚫... -
Page 5: Installation Procedure
2,000 2,500 2,500 3,000 3,000 * The above performance data is for reference only, the actual data rate may vary depending on the quality of the copper wire and environmental factors. VX-VEB160G4(V3) LITE INDUSTRIAL VDSL2 ETHERNET EXTENDER - UM V1.0... -
Page 6: Hardware Description
Bi-directional pair A - BI_DB+ Bi-directional pair B + BI_DC+ Bi-directional pair C + BI_DC- Bi-directional pair C - BI_DB- Bi-directional pair B - BI_DD+ Bi-directional pair D + BI_DD- Bi-directional pair D - VX-VEB160G4(V3) LITE INDUSTRIAL VDSL2 ETHERNET EXTENDER - UM V1.0... -
Page 7: Installation Accessory
Fasten the DIN Rail clip to the device using a screwdriver and three machine screws. ● The diameter of each screw is 3mm and the length of each screw is 5mm. ● VX-VEB160G4(V3) LITE INDUSTRIAL VDSL2 ETHERNET EXTENDER - UM V1.0... -
Page 8: Din Rail Mounting
STEP 1: Push the unit down to free the bottom of the DIN Rail. STEP 2: Rotate the bottom of the unit away from the DIN Rail. STEP 3: Unhook top of unit from DIN Rail. VX-VEB160G4(V3) LITE INDUSTRIAL VDSL2 ETHERNET EXTENDER - UM V1.0... -
Page 9: Led Definition
Data Transmitting LEDs for Ethernet Port Color Blinking Link at speed of 10/100 Yellow Data Transmitting Link Down 10/100 Mbps Link at speed of 1000 Green Data Transmitting Link Down 1000 Mbps VX-VEB160G4(V3) LITE INDUSTRIAL VDSL2 ETHERNET EXTENDER - UM V1.0... -
Page 10: Power Connection
The earth terminal and the power interface with screw terminal plug are placed. Connect the earth terminal to the protective earthing conductor of the buildings installation. VX-VEB160G4 (V3)-AC: Input from DC Jack range12V DC (Commercial Grade External Power Adaptor included) VX-VEB160G4 (V3)-DC: Input from Terminal Block range 12V~24V (7.5-30 Max) -
Page 11: 4-Position Dip Switch
Asymmetrical G.INP 220/100 Symmetrical (Forcing 30a profile G.INP 20/20 *Special Profile to link, and disable Setting for poor band 0 to 2.2MHz) environment Asymmetrical (Standard profile Interleaved 150/50 Annex A 17a-eu32) VX-VEB160G4(V3) LITE INDUSTRIAL VDSL2 ETHERNET EXTENDER - UM V1.0... -
Page 12: Description Of Setting
Because this item is set to 30a profile, so its train up time is about 15sec to 20sec. 8. Profile Setting (DIP2: On, DIP3: On, DIP4: On) is standard profile Annex A 17a-eu32. VX-VEB160G4(V3) LITE INDUSTRIAL VDSL2 ETHERNET EXTENDER - UM V1.0... - Page 13 To reduce potential safety issues, only the AC Adapter provided with the product, a ● replacement AC Adapter provided by agency, or an AC adapter purchased as an accessory from agency should be used with the product. VX-VEB160G4(V3) LITE INDUSTRIAL VDSL2 ETHERNET EXTENDER - UM V1.0...
