SUPPLIED MATERIAL
Coordinator circuit
Plastic washers
(glued on the circuit)
Nylon screws
Isolator M6
M8 washer
Antenna cable
MOUNTING BUID IN FORMAT
1
Disconnect power to the
controller.
4
Place the coordinator circuit
at the designated point
behind the keyboard.

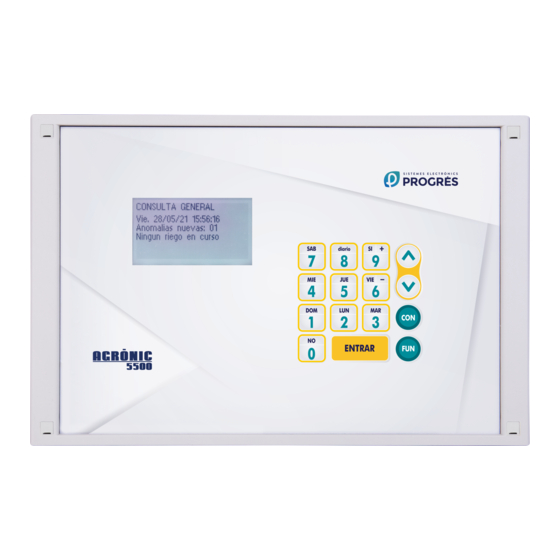

Agrónic 5500
Installation option link AgroBee-L
Antenna
2
Remove the 6 screws that
hold the keyboard.
5
Screw the circuit with the two
nylon screws.
Antenna connector
Hose
Agrobee-L coordinator circuit with hose,
antenna connector and two washers
Antenna
Antenna cable 10 m
2 nylon screws
M6 isolator (build in model)
M8 washer (build in model)
3
Lift the keyboard and
disconnect the 2 wires that
connect the keyboard circuit
with the outputs circuit.
6
Break the die-cut indicated in
the image with a small blow
with a screwdriver or similar.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Agronic 5500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Progres Agronic 5500

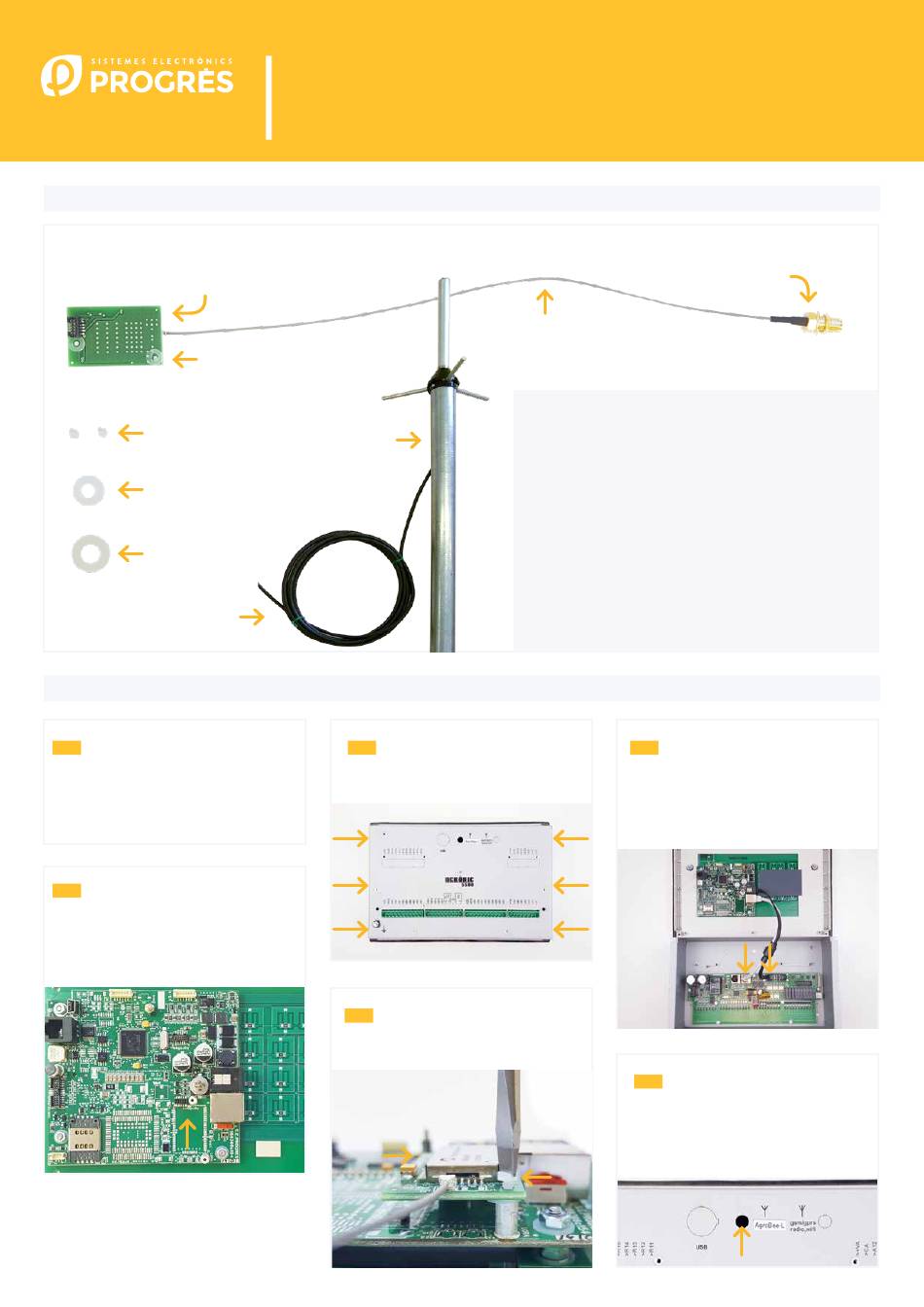

  • Page 1 Agrónic 5500 Installation option link AgroBee-L SUPPLIED MATERIAL Coordinator circuit Antenna connector Hose Plastic washers (glued on the circuit) • Agrobee-L coordinator circuit with hose, Nylon screws Antenna antenna connector and two washers • Antenna Isolator M6 • Antenna cable 10 m •...
