Diagram; Product Functions - Ananda D15 Manual

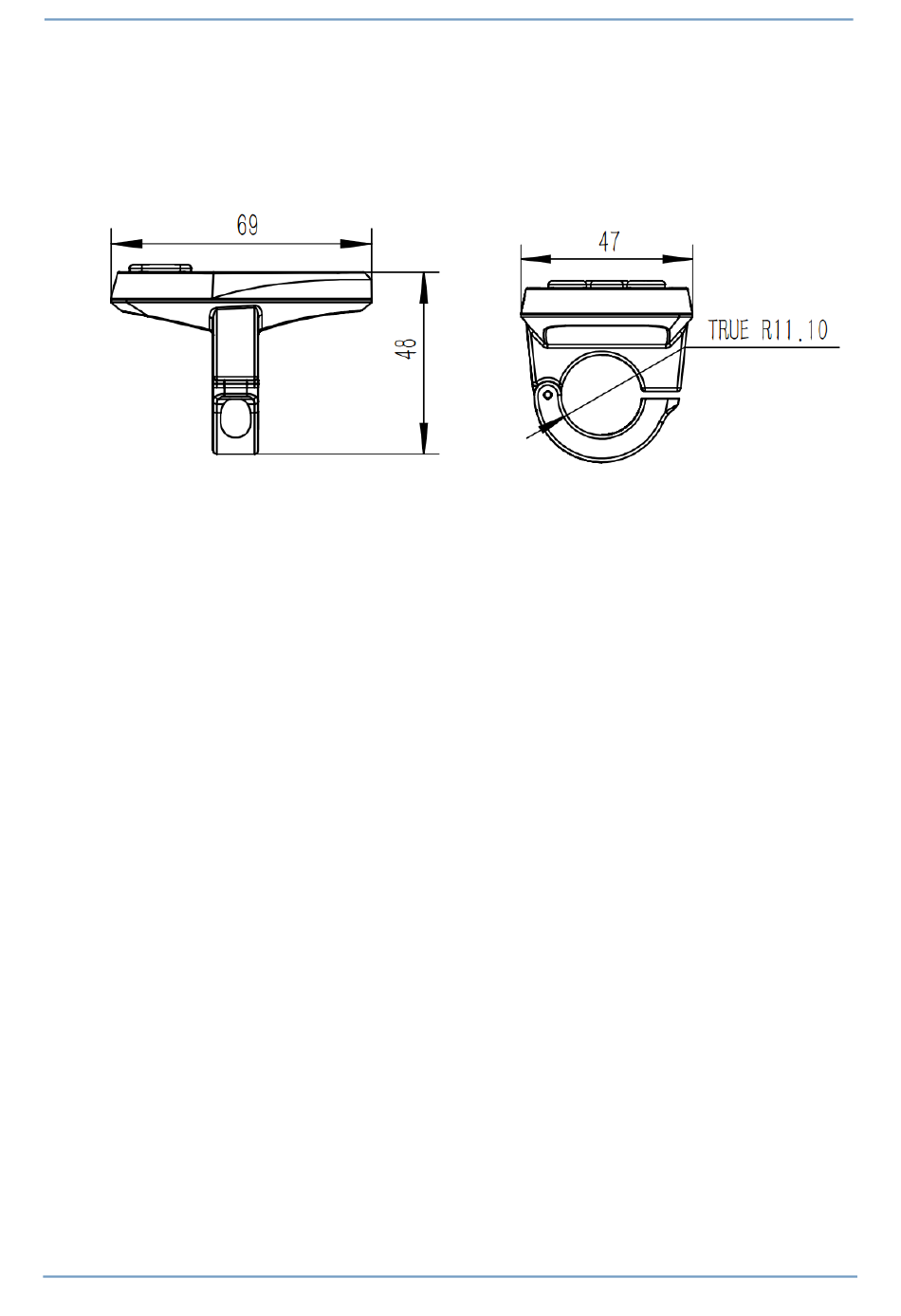

Diagram (mm)
C. Product Functions
D15-MSUP display is an emerald green LED display. It can match the
24V/36V/48V battery with wide voltage and integrate the headlight switch
function. This instrument communicates with the corresponding controller and
battery by UART communication. The main functions of D15 are: (as shown in
Pic 3-1 below)
◆ Light Status
◆ Pas Level
◆ Battery Capacity
◆ Error Code
◆ Walking Assistant
Pic 2-2
Page of 11
3
