- Page 1 USERS GUIDE AND 5167...
-
Page 2: Table Of Contents
Contents User Guide............... 1 Appearance and size ............2 Function Summary............. 3 Normal Display Area............4 Notes for users..............4 Installation Instruction ............4 Normal Operation ............... 5 7.1 On/Off................. 5 7.2 Speed Display（Real time speed）…………………..5 Mileage display （single time Cumulative mileage )…….….5 7.3 Turn on light.............. - Page 3 Preface Dear users, To ensure better performance of your e-bike, please read through the And 5167 product introduction carefully before using it. We will use the brief words to inform you of all the details（including hardware installation, setting and normal use of the display）when using our display.
-
Page 4: Appearance And Size
2. Appearance and Size AND 5167 adopts combined method of metal bottom shell and glass cover plate, Temperature of shell material allows from -20 C to 60 for normal using to ensure good mechanical performance. Dimensional drawing （Unit：mm） - 2 -... -
Page 5: Function Summary
AND7193 button cable is connected to the bottom of display.In the following statements , button is replaced by “switch” +button is replaced by word “plus”，— button is replaced by word“minus”, button is replaced by word “headlight”， button is replaced by word “Push” ”. -
Page 6: Normal Display Area
AND 5167 shows the contents： ◆Battery indicator ◆Speed display（real time speed display） ◆Mileage display（Including single mileage display and ODO） ◆Single time riding time display ◆PAS level ◆Headlight turn on and off ◆6km/h Walk assistant function ◆Error code display ◆Riding mode display ◆Multiple setting parameters:wheel diameter,speed... -
Page 7: Notes For Users
AND 5167 normal display area 5. Notes For Users Be careful during using display,do not plug in and out when electrified.To avoid bumps as much as possible . Display need to be repaired as soon as possible when it can not work. -
Page 8: Installation Instruction

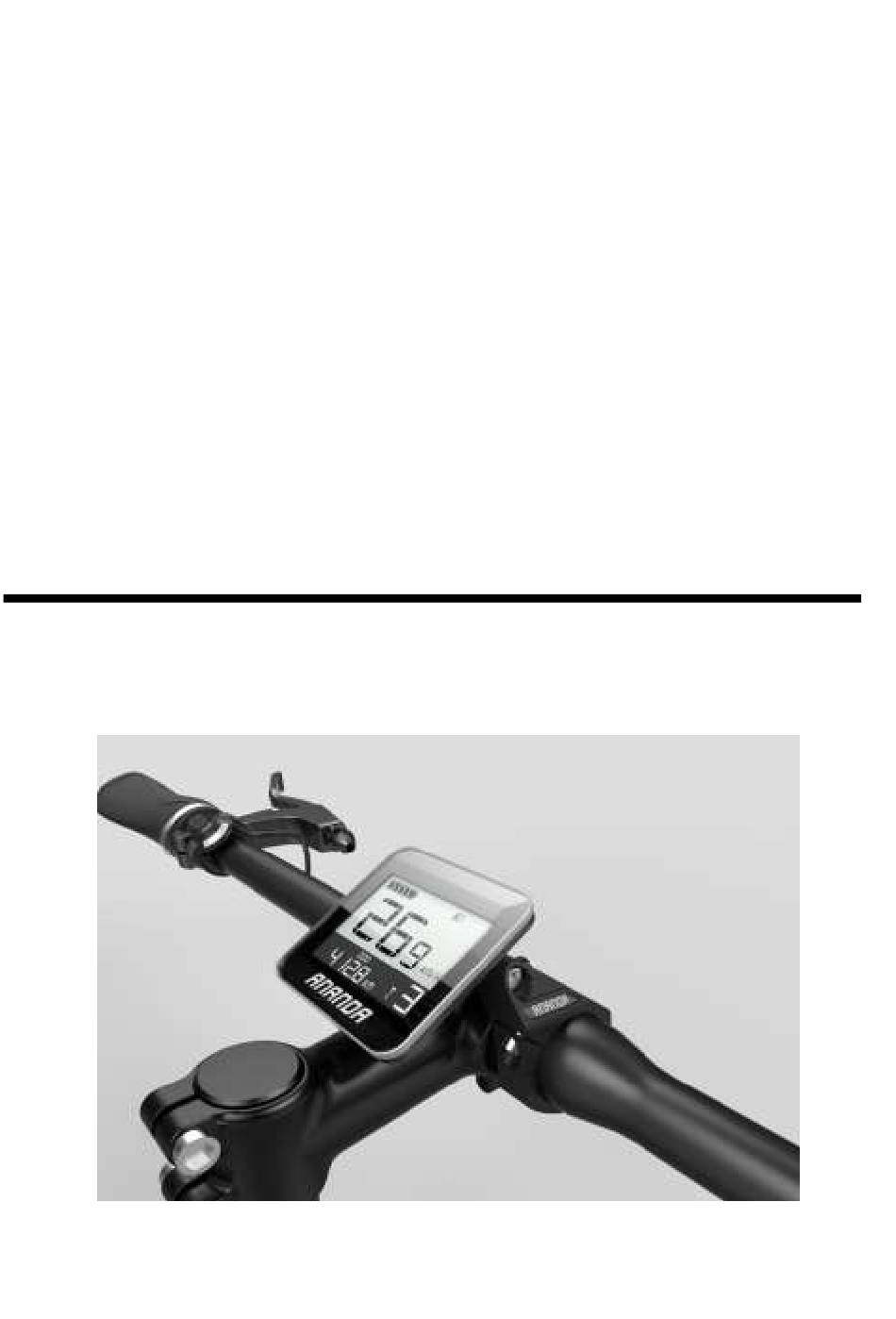

6. Installation instruction This product is LCD liquid crystal display ,it need to be installed on handlebar of bike .After fixed, the connector of the display will be installed with the connector of the controller. 7. Normal operation 7.1 On/Off Hold and press “Switch”for 3 seconds，... - Page 9 Open display，display default shows real time speed、total mileage.Short press“Switch”button to switch display information.Shown in order：real time speed、accumulative mileage →average speed,single mileage→Max.speed,single time riding time. Hold and press “headlight” in single time mileage or single riding time interface to clear single time mileage and single riding time at the same time.
- Page 10 Max.speed、single time riding time 7.3 Turn on headlight Hold and press “headlight” button to turn on or off headlight ,display notice controller to turn on headlight of E-bike. Turn on headlight display interface - 8 -...
-
Page 11: Pas Level Adjustment
7.4 6km/h walk assist Hold and press”walk assist”to enter electronic power boost mode,E-bike travels at a constant speed of 6 kilometers per hour. 6km/h walk assist interface 7.5 PAS level adjustment Short press “plus” or “minus” button to switch E-bike PAS level ，... -
Page 12: Battery Indicator
1 gear display 5 gear display 7.6 Battery indicator Five segments all are on when at full state. When it is at low voltage, the last segment will flash to warn . Max.power display low power display under voltage 7.7 Riding mode display Short press“Push”button to switch riding mode.T（Tour）-S （Sport）-C（Customized）-E（Eco）-T（Tour). -
Page 13: Display Light Brightness Auto Adjustment
T mode S mode C mode E mode 7.8 Display light brightness auto adjustment When brightness of surrounded environment changed，it will adjust brightness of display lamp automatically through built-in photosensitive element.When external environment turn dark,backlight brightness will become dimmed,also it will turn bright when backlight brightness become bright. -
Page 14: Error Code
comfortably. After turn on light automatically and press“headlight” button to turn off light and photosensitive function, re-open display and restore photosensitive function. 7.9 Error code display When the electronic control system fails ,display will show error code automatically .The fault interface can be removed when fault is excluded .E-bike can not continue to drive after failure. -
Page 15: Backlight Brightness Setting
Check if the phase line is good ； Motor lack of Check whether the motor phase line is phase Connected to the controller No hall controller:check whether the Motor hall phase line is good with hall controller： Abnormal signal check whether hall good... -
Page 16: Wheel Diameter Setting
lightness，3 is the brightness.Factory default value of the display is 1.Short press“plus” and “minus” can change backlight brightness parameters. Press “switch” button to confirm the selection of backlight brightness and enter next setting item. Backlight brightness setting interface 8.2 Wheel diameter Wheel diameter setting can be set to ：16inch、18 inch、... -
Page 17: Speed Limit Setting
Diameter setting interface 8.3 Speed limit setting Speed limit can be set max.riding speed of E-bike .When the motor exceeds setting value, controller stops power supply to motor to protect riding safety of riders. Range of the Max. limit speed setting value from 12Km/h to 40Km/h .Default value of the Max.riding speed is 25Km/h. -
Page 18: Unit Setting
Speed limit setting interface 8.4 Unit setting Unit setting can set display speed and mileage units,default factory is metric system ,short press “plus” or “minus” to switch metric unit （Km/h）and English unit(MPH). Hold and press “switch”button to confirm setting, and then enter normal working interface. -
Page 19: Gear Range Setting
Unit setting interface 8.5 Gear range setting Gear range including 0-3,1-3,0-5,1-5,0-7,1-7,0-9,1-9.Factory default gear rang is 0-5.Press “plus” or “minus” to switch gear range, press “switch” to confirm the selection of display gear range and enter next setting item at the same time. -
Page 20: Gear Initial Value Setting
Gear range setting interface 8.6 Gear initial value Initial value of gear including ：0,1,2,3.Gear initial value of factory default is 1 gear.Press “plus” or “minus” to switch initial value of gear, press “switch” to confirm the selection of initial value of gear and enter next setting item at the same time. -
Page 21: Photosensitive Value Setting
8.7 Photosensitive setting P stands for sensing threshold, adjustment this parameter is to adjust the sensitivity of light function to outside environment,the larger the value ,the lower the sensitivity, that is automatically open headlight required weaker ambient light. Press “plus” or “minus”button to adjust sensing threshold , hold and press “switch”... -
Page 22: Display Printing Code
Connect with controller display outlet end Butt line end Standard connector thread order table Standard Wire color Definition sequence Red（VCC） Display power cord Blue(K) Power of controller Black(GND) Green(RX) Receiving data Yellow(TX) Transmitting data Notes: some displays are with waterproof cables, wires hidden inside the wire cover. -
Page 23: Faq
factory is July,2016 1301 stands for display program number 11. FAQ and Questions Ask: why can not be opened? Answer: Check whether the battery has turned on or whether the leakage lead is broken Ask:How handle with failure code of display? Answer: Timely go to repairing site to repair. - Page 24 The LCD display function warranty: 24 months from the delivery time of the display out of the factory. 二、The following situations do not belong to warranty scope 1、Shell opened 2、connectors have been broken 3、After display out of factory,the shell is scratched or damaged.
