Summary of Contents for Furniture of America Amity CM4085E

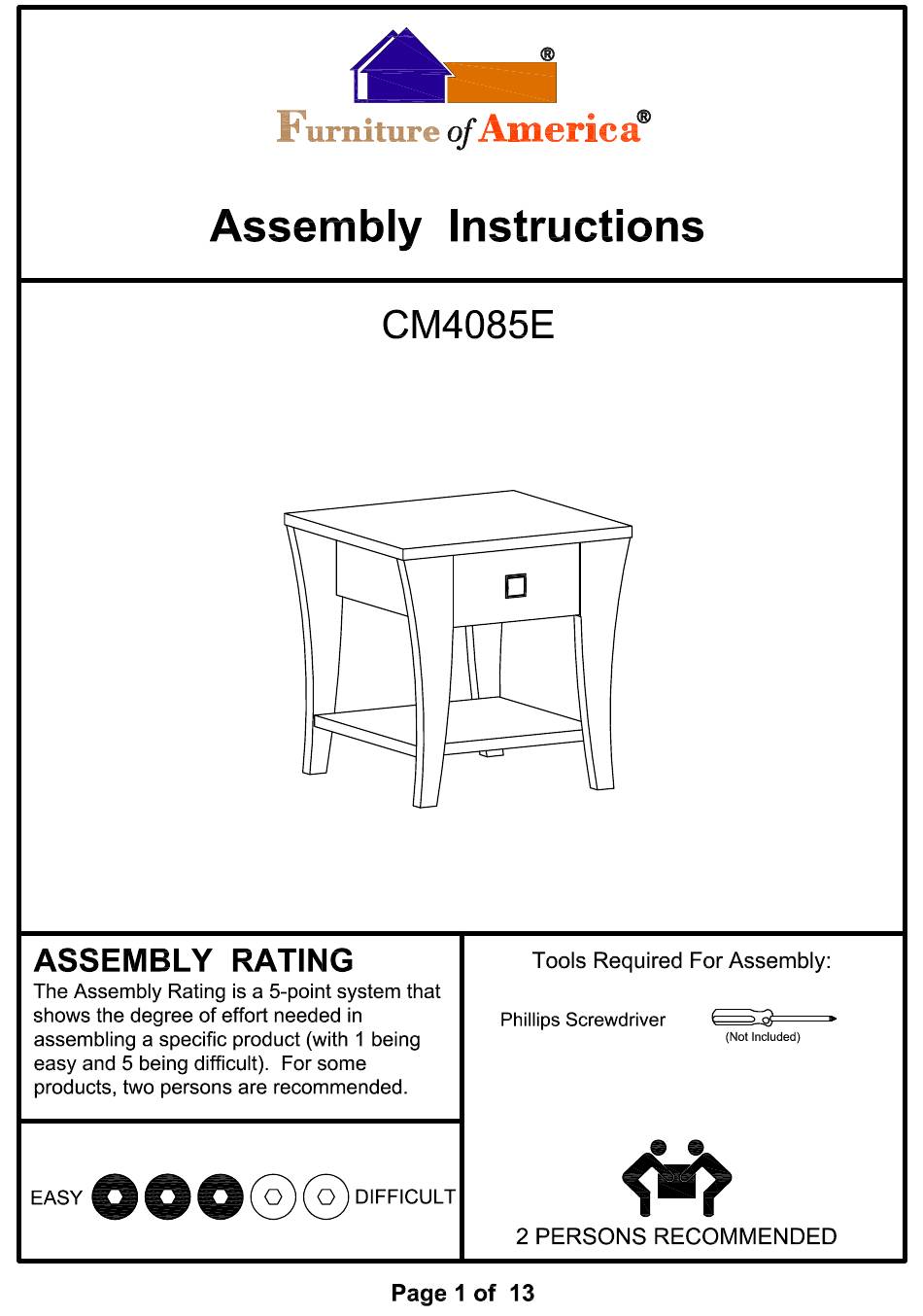

- Page 1 For more information contact our team: service.ec@foagroup.com Rev: 17-12-08...
- Page 3 Cam Lock Fastener Assembly Board A Cam Locks are fasteners used to join two boards together, usually the edge of one board (A) to the flat side of another board (B). flat side edge to join Board B Cam Lock Cam Pin Step 2 - Fit the To use Cam Lock...
- Page 7 Attach dowels (#C) and cam bolts (#A) to the holes of the left and right side panels (#5,6). Align front and rear crossbars (#3,4) to the cam bolts (#A) and dowels (#C) of left and right side panels (#5,6). Secure by using cam locks (#B). Attach cam bolts (#A) to the holes of the rear left and right legs (#15,16).
- Page 8 Attach cam bolts (#A) and dowels (#C) to the holes of the legs (#15,16) and bottom support (#12). Align side panels (#5,6) and crossbar (#4) to the cam bolts (#A) and dowels (#C). Secure by using cam locks (#B). Attach cam bolts (#A) to the holes of the legs (#15,16).
- Page 9 Attach cam bolts (#A) to the holes of the legs (#13,14). Align legs (#13,14) to the holes of the product. Secure by using cam locks (#B). Reattach drawer rails to side panels (#5,6).
- Page 10 Attach cam bolts (#A) to the holes of the top panel (#1). Attach dowels (#C) to the holes of the top panel (#1), then align top panel (#1) to the holes of the base. Secure by using cam locks (#B), then cover cam locks (#B) by using stickers (#I).
- Page 11 Slightly hammer in the floor protectors (#J). Align handles to the front drawer panel (#7), then secure by using bolts and washers (#H).
- Page 12 Align side drawer panels (#8,9) to the holes of the back drawer panel (#10), then secure by using screws (#F). Align and slide bottom panel (#11) through the thin lined gaps of the drawer panels.
- Page 13 Attach cam bolts (#D) to the holes of the front drawer panels (#7). Align front drawer panel (#7) to the holes of the drawer. Secure by using cam bolts (#E). ASSEMBLY COMPLETED...
