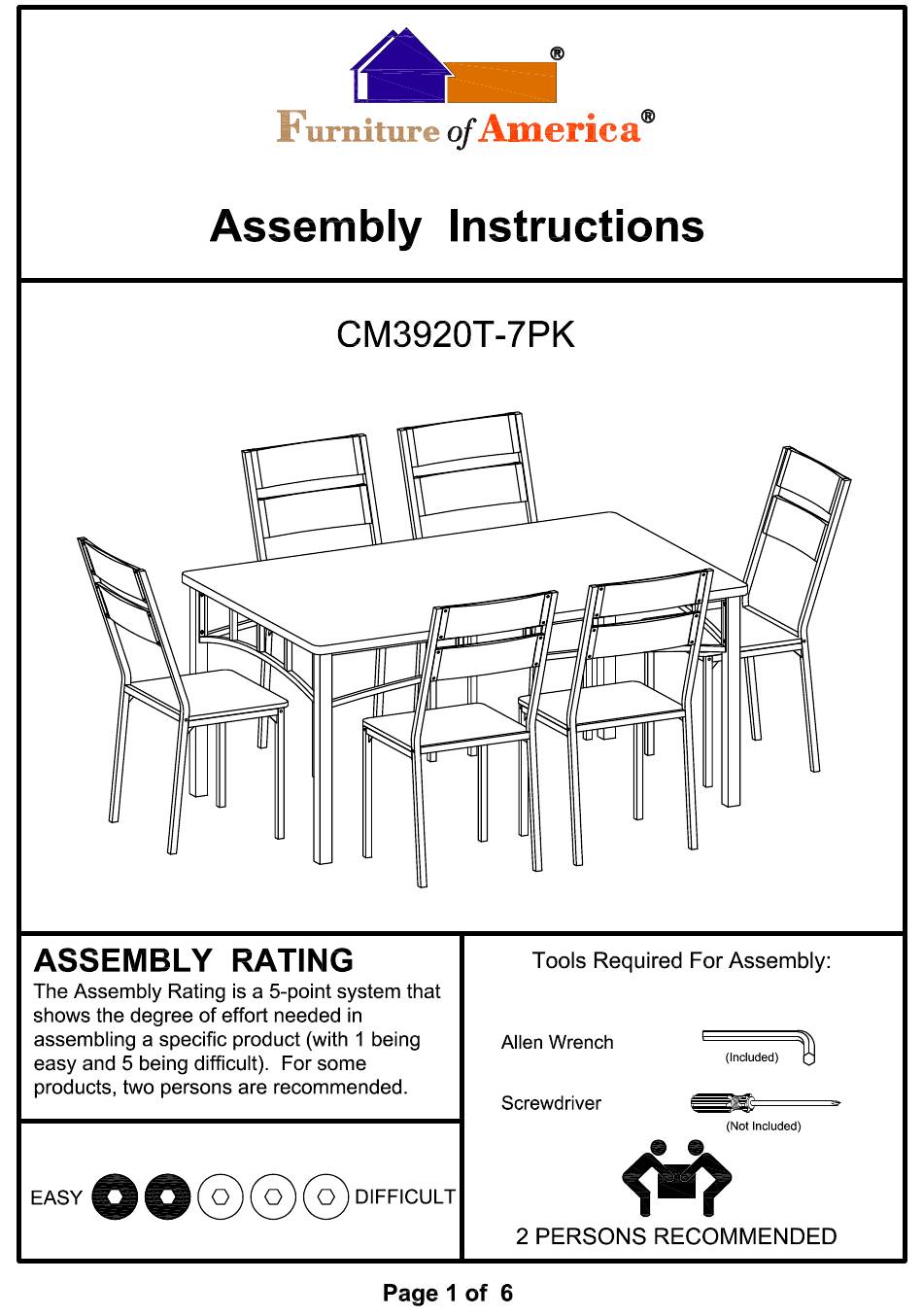

- Page 1 Rev: 18-07-27...
- Page 4 Align long and short aprons (#2,3) to the holes of the table legs (#4), then secure by using bolts (#E). Align table back to the table top (#1), then secure by using screws (#B). There will be no pre-drilled holes on the table top (#1).
- Page 5 2) Secure connecting bar (#7) to side frames (#5,6) by using bolts (#C). 3) Secure connecting bar (#7) to side frames (#5,6) by using bolts (#C) with washers (#D). 1) Align connecting bars (#7) to the holes of the side frames (#5,6), then secure lower holes of the connecting bars (#7) by using bolts (#A).
- Page 6 Rest seat board (#9) to the top of the table, then align seat frame to the holes of the seat board (#9). Secure by using bolts (#C). ASSEMBLY COMPLETED...
