Retekess T129 Instructions

Model: T129
The second generation wireless tour guide transmitter.........1PC
The second generation wireless tour guide receiver.............NPC
3.5 headset or col lar microphone........................................1PC
3.5 earphone headset or headset........................................NPC
SMA antennas....................................................................NPC
Products
To users
Thank you for choosing T129 high-fidel ity digital wireless
products that produced . T129 is an anti-interference digital
wireless mini - tour guide system produced by using T129
which is digital wireless audio transceiver modules. The core
module use our high qual ity 2.4GHz audio transmit module
which already own the property right, using the best sample
rate in industry, good sound effect, strong anti-interference
capability. The modules's work frequency is 2.4G ISM
international free band, which serve global market.
Before using, please checking the attachment whether is
complete according to the instructions on page of packing list
first, to avoid unnecessary trouble. For best performance, and
give full play to all the features of this unit, please read these
instructions carefully and correctly set.
Please save this for future shows that at any time.

Special Declaration

1. Intel lectual property rights statement: The hardware and
software of the product is protected by copyright law and the
International Convention. Without any written authorization of
our company , any copy of the product and of the specifications,
part or all, will bear the corresponding legal responsibility. The
brochures are copyright based on our company. without the
consent of our Company, not a part or all of the Manual may be
externally released.
2. The manual is only for reference and ultimate practical
features are depending on whichever is actually ordered and
whatever features are actually received and realized.

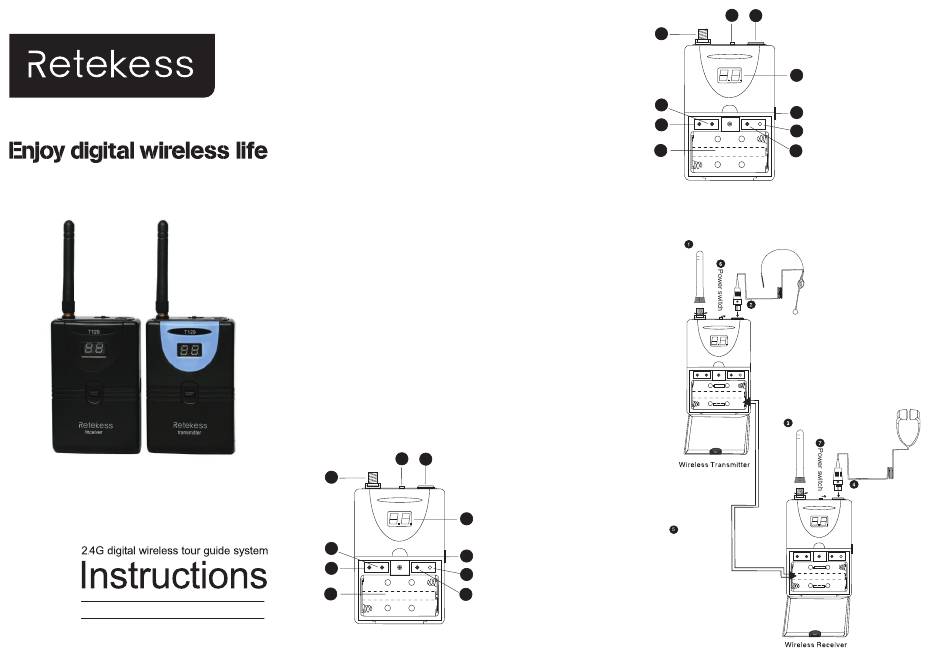

Part name

2
3
1.Antenna
1
2.Power switch
3.Microphone interface
T129
4.Channel/Volume display
4
5.External power interface
8
6.Status indicator LED
5
7.Channel up button
vol- vol+ CH status
9
6
+
8.Volume up button
-
10 7
9.Volume down button
+
-
10.Battery box

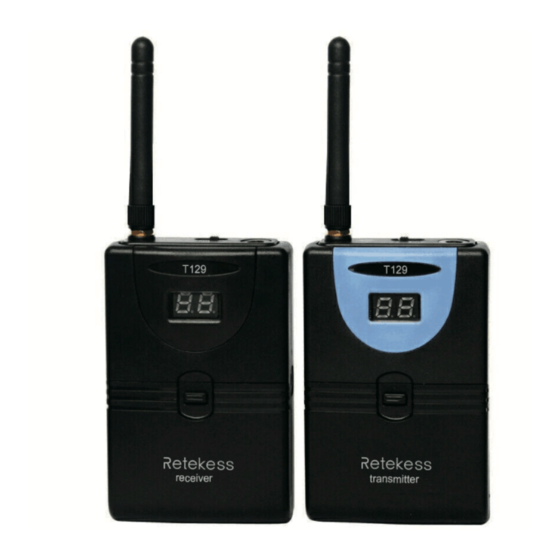

Wireless tour guide transmitter
2 3
1.Antenna
2.Power switch
1
3.Microphone interface
T129
4.Channel/Volume display
4
5.External power interface
6.Status indicator LED
8
5
7.Channel up button
9 vol- vol+ CH status
6
8.Volume up button
+
-
10 7 9.Volume down button
+
- 10.Battery box
Wireless tour guide receiver

Using preparation

Antenna
Microphone
interface
T129
Follow the instrucions shown installed
battery, natenna, microphone,
headphones and other accessories.
vol- vol+ CH status
+
• • • • -
+
- • • • •

Antenna installation

T129
Were installed
transmitter and
receiver batteries vol- vol+ CH
+
-
• • • •
+
- • • • •
Install headset
status
