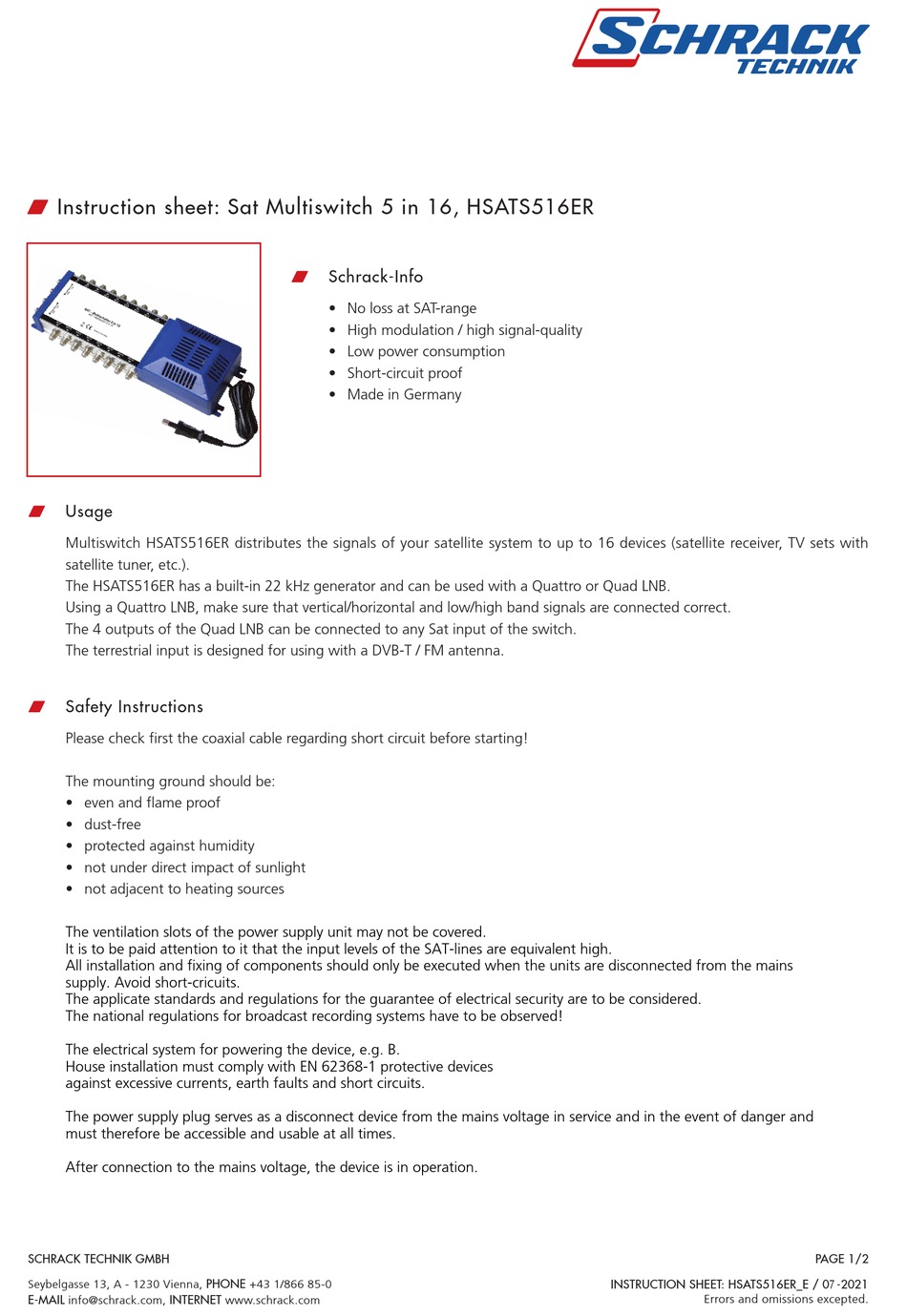

Instruction sheet: Sat Multiswitch 5 in 16, HSATS516ER
w
Usage

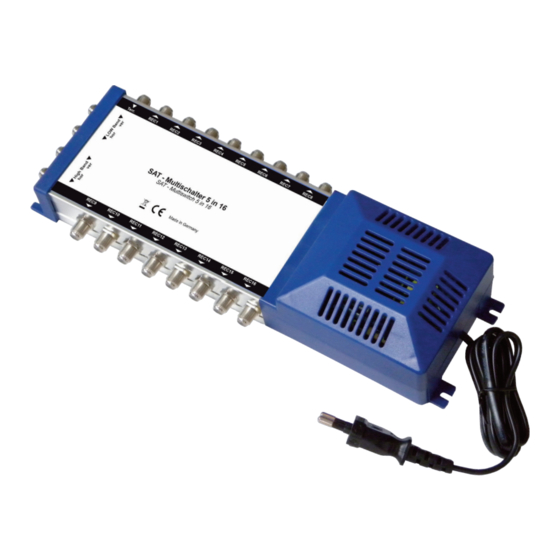

Multiswitch HSATS516ER distributes the signals of your satellite system to up to 16 devices (satellite receiver, TV sets with
satellite tuner, etc.).
The HSATS516ER has a built-in 22 kHz generator and can be used with a Quattro or Quad LNB.
Using a Quattro LNB, make sure that vertical/horizontal and low/high band signals are connected correct.
The 4 outputs of the Quad LNB can be connected to any Sat input of the switch.
The terrestrial input is designed for using with a DVB-T / FM antenna.
w
Safety Instructions
Please check first the coaxial cable regarding short circuit before starting!
The mounting ground should be:
• even and flame proof
• dust-free
• protected against humidity
• not under direct impact of sunlight
• not adjacent to heating sources
The ventilation slots of the power supply unit may not be covered.
It is to be paid attention to it that the input levels of the SAT-lines are equivalent high.
All installation and fixing of components should only be executed when the units are disconnected from the mains
supply. Avoid short-cricuits.
The applicate standards and regulations for the guarantee of electrical security are to be considered.
The national regulations for broadcast recording systems have to be observed!
The electrical system for powering the device, e.g. B.
House installation must comply with EN 62368-1 protective devices
against excessive currents, earth faults and short circuits.
The power supply plug serves as a disconnect device from the mains voltage in service and in the event of danger and
must therefore be accessible and usable at all times.
After connection to the mains voltage, the device is in operation.
SCHRACK TECHNIK GMBH
Seybelgasse 13, A - 1230 Vienna, PHONE +43 1/866 85-0
E-MAIL info@schrack.com, INTERNET www.schrack.com
w
Schrack-Info
• No loss at SAT-range
• High modulation / high signal-quality
• Low power consumption
• Short-circuit proof
• Made in Germany
INSTRUCTION SHEET: HSATS516ER_E / 07-2021
Errors and omissions excepted.
PAGE 1/2
