1. INTRODUCTION

Q7TEH1026G 24+2G Fast Ethernet Switch is specially designed for users who want to have a smooth transition from 100Mbps
to 1000Mbps LAN. It provides 24 10/100Mbps auto-negotiation RJ45 ports, 2 10/100/1000Mbps auto-negotiation Gigabit RJ45
ports and 2 Gigabit SFP fiber ports. All RJ45 ports support auto MDI/MDIX and can be used as both common ports and uplink
ports to connect to backbone networks. With the device, users can keep their original 100Mbps network cabling distribution
system and solve the network data transmission problem via Gigabit connection. Meanwhile Q7TEH1026G can be used as an
access device for departments to connect to its company's Gigabit backbone network via Gigabit ports. It is the ideal solution for
internet bars, schools and enterprises to directly upgrade to Gigabit network.
W

1.1 SWITCH FEATURES

• Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z Ethernet standards
• 24 10/100Mbps and 2 10/100/1000Mbps auto-negotiation Ethernet ports; auto-negotiation function supported
(auto-negotiation duplex mode and transmission rate)
• Provides 2 shared SFP fiber ports to auto-switch between Gigabit electrical port and Gigabit SFP fiber port
(with SFP fiber port as a priority)
• Provides 4K MAC address table with learning and auto-aging function
• Built-in high-performance power supply to support AC 100-240V 50/60Hz input
• 19-inch standard mounting brackets
W

1.2 PACKAGE CONTENTS

Please check the items carefully after you open the packing as below (the listed items are for reference only):

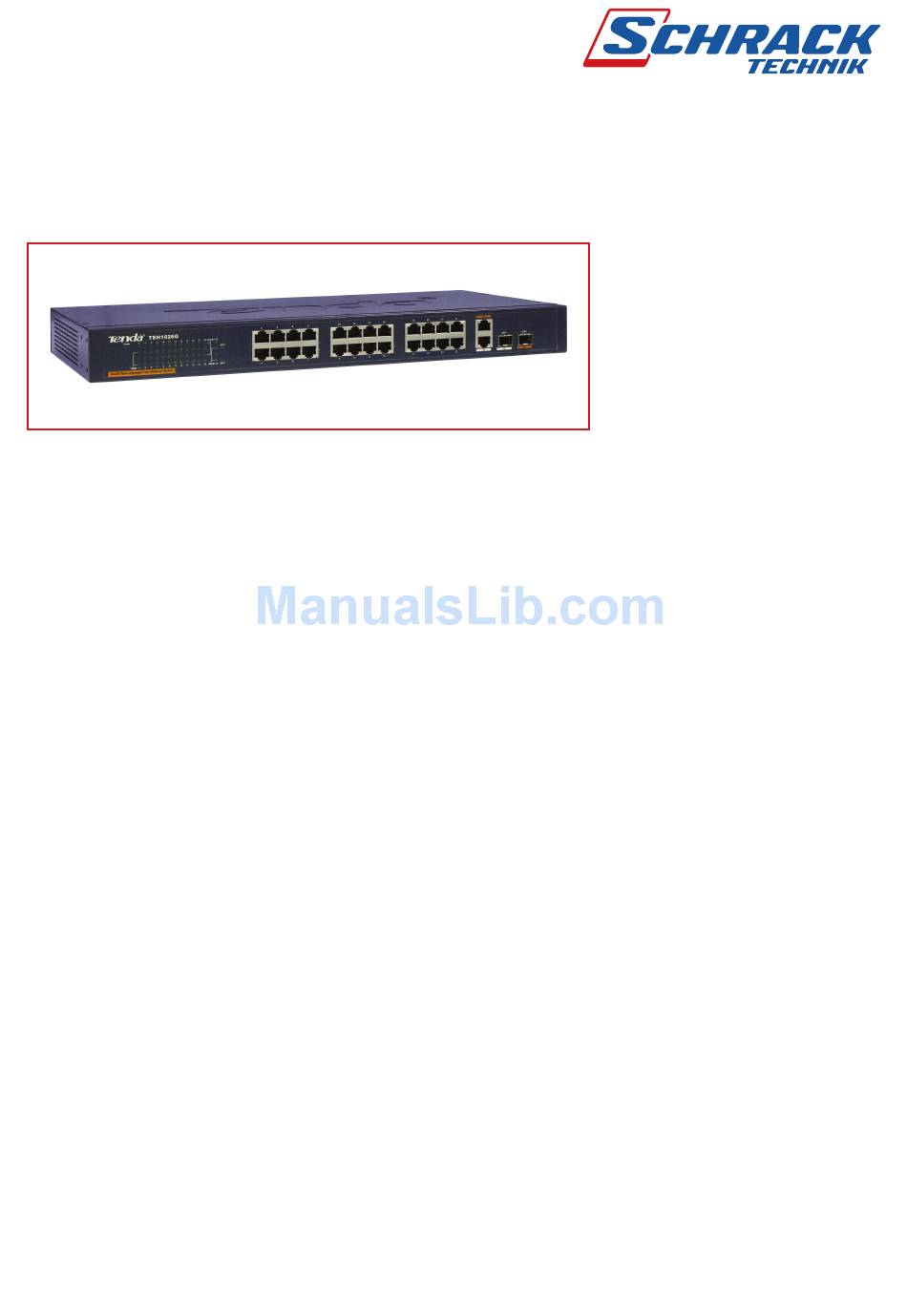

• One Q7TEH1026G 24+2G Fast Ethernet Switch
• One power cord
• One user guide
• One set of L-shaped brackets（two mounting brackets, matched screws）
• Four foot pads
