English

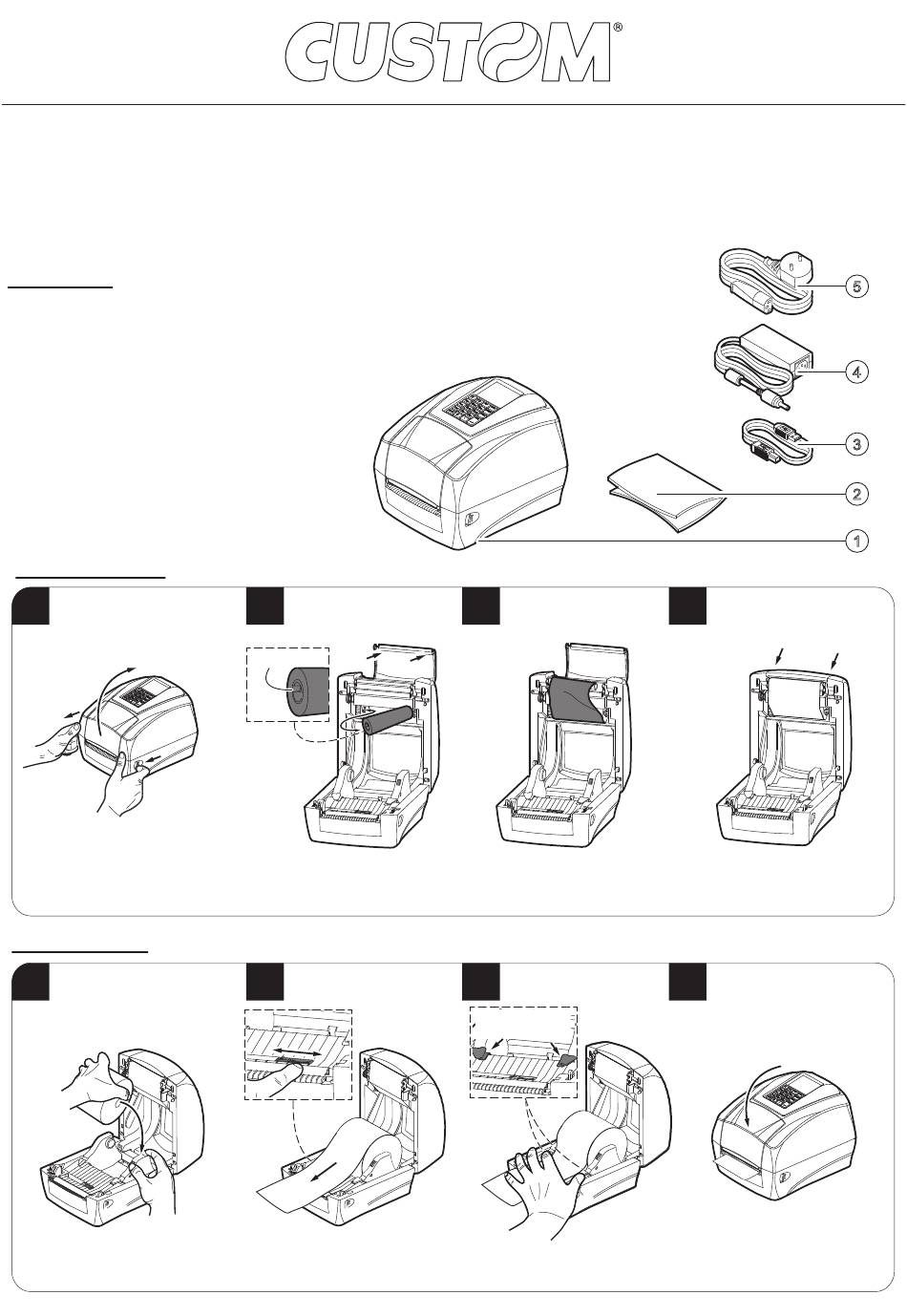

Box contents
1.
Device
2.
Documentation (Short guide, warranty sheet)
3.
USB cable
4.
Power supply
5.
Power supply cable
Loading the ribbon
1
Open the cover by pulling
the side latches.
Loading the label
1
Adjust the label holder to fix
the label roll.
CUSTOM S.p.A.
D4 102, D4 202, D4 302-K
D4 102, D4 202, D4 302-K
2
Notch
Insert the ribbon roll to
supply hub.
2
Adjust the label sensor to
correct position.
3
Insert the ribbon
take/up core.
3
Under the label
guides
Push the label under the
label guides.
0578200M000024
Rev. 1.20
4
Close the ribbon
cover.
4
Close the ribbon
cover.
Code
5
4
3
2
1
