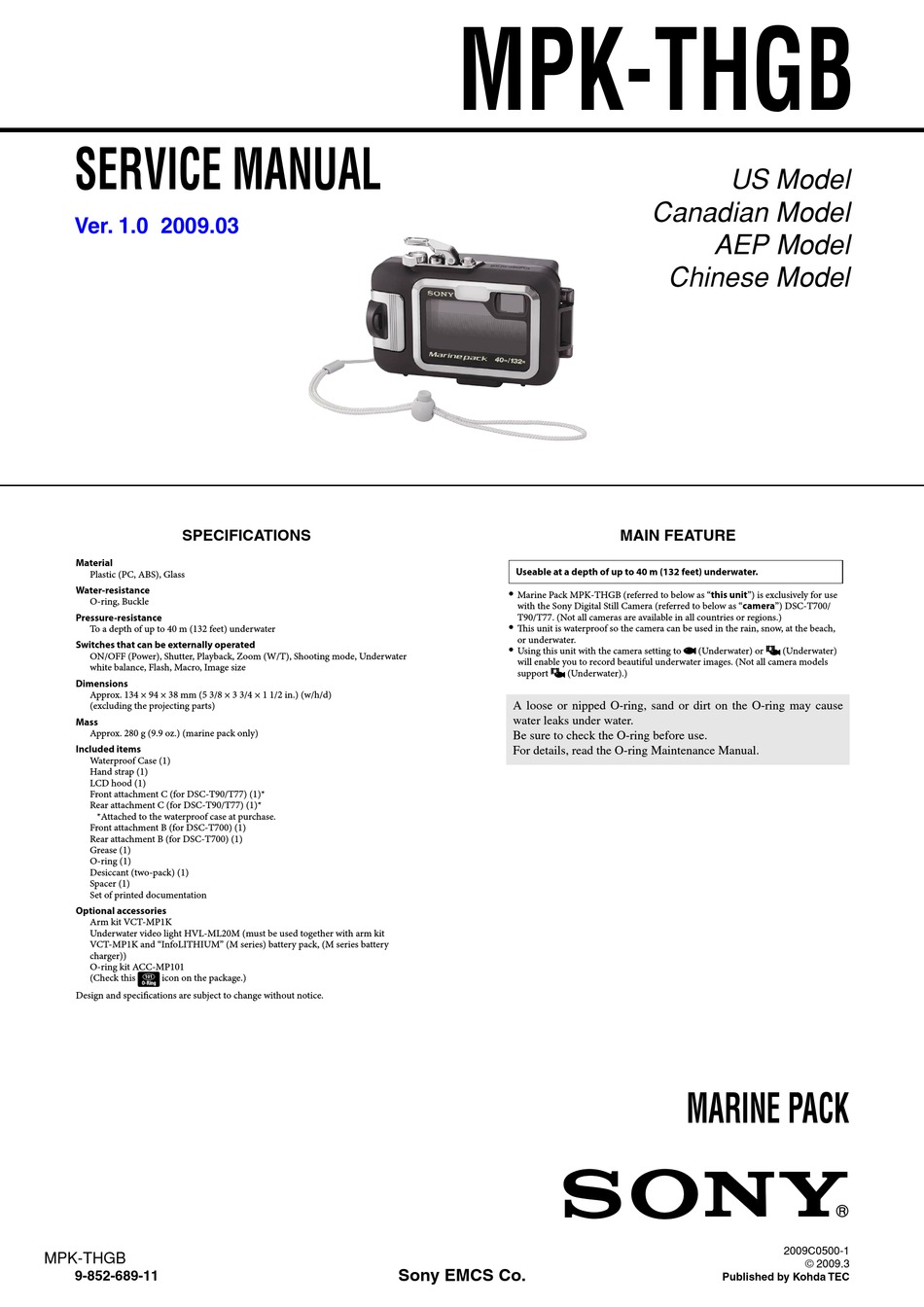

SERVICE MANUAL
Ver. 1.0 2009.03
SPECIFICATIONS
Material
Plastic (PC, ABS), Glass
Water-resistance
O-ring, Buckle
Pressure-resistance
To a depth of up to 40 m (132 feet) underwater
Switches that can be externally operated
ON/OFF (Power), Shutter, Playback, Zoom (W/T), Shooting mode, Underwater
white balance, Flash, Macro, Image size
Dimensions
Approx. 134 × 94 × 38 mm (5 3/8 × 3 3/4 × 1 1/2 in.) (w/h/d)
(excluding the projecting parts)
Mass
Approx. 280 g (9.9 oz.) (marine pack only)
Included items
Waterproof Case (1)
Hand strap (1)
LCD hood (1)
Front attachment C (for DSC-T90/T77) (1)*
Rear attachment C (for DSC-T90/T77) (1)*
*Attached to the waterproof case at purchase.
Front attachment B (for DSC-T700) (1)
Rear attachment B (for DSC-T700) (1)
Grease (1)
O-ring (1)
Desiccant (two-pack) (1)
Spacer (1)
Set of printed documentation
Optional accessories
Arm kit VCT-MP1K
Underwater video light HVL-ML20M (must be used together with arm kit
VCT-MP1K and "InfoLITHIUM" (M series) battery pack, (M series battery
charger))
O-ring kit ACC-MP101
(Check this
icon on the package.)
Design and speci cations are subject to change without notice.
MPK-THGB
9-852-689-11
MPK-THGB
Useable at a depth of up to 40 m (132 feet) underwater.

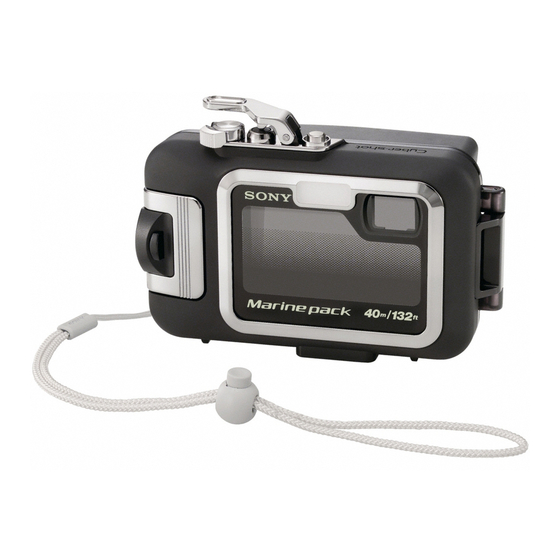

Marine Pack MPK-THGB (referred to below as "this unit") is exclusively for use
with the Sony Digital Still Camera (referred to below as "camera") DSC-T700/
T90/T77. (Not all cameras are available in all countries or regions.)
is unit is waterproof so the camera can be used in the rain, snow, at the beach,
or underwater.
Using this unit with the camera setting to
will enable you to record beautiful underwater images. (Not all camera models
support
(Underwater).)
A loose or nipped O-ring, sand or dirt on the O-ring may cause
water leaks under water.
Be sure to check the O-ring before use.
For details, read the O-ring Maintenance Manual.
Sony EMCS Co.
US Model
Canadian Model
AEP Model
Chinese Model
MAIN FEATURE
(Underwater) or
(Underwater)
MARINE PACK
2009C0500-1
Published by Kohda TEC
© 2009.3
