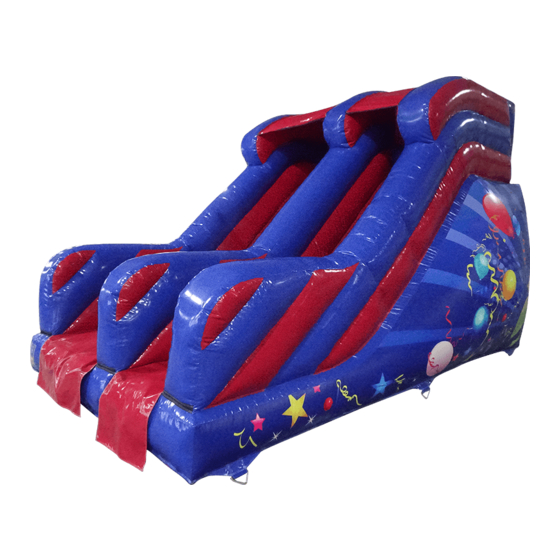

airquee 8M Platform Slide Additional Operating Instructions

airquee 8M Platform Slide Additional Operating Instructions

Advertisement

Quick Links

AS OWNER/OPERATOR IT IS YOUR RESPONSIBILITY TO WRITE AND CARRY OUT
YOUR OWN RISK ASSESSMENT BEFORE ATTEMPTING TO USE THIS PRODUCT.

Site survey:

1. Carry out a survey of the area where the Slide will be located, and check for any
overhead/underground cables. It's important that this is carried out to avoid ground
anchors penetrating underground services, and the Slide coming into contact with
overhead cables when inflated.
2. You should provide an adequate power supply to the fan, this should adhere to
your local power regulations.
3. Check wind speed: The industry recommends a maximum wind speed of Force 5
on the Beaufort scale of 28 - 38 kmph (19-24 mph). Force 5 is a fresh breeze when
small trees in leaf begin to sway.

Included with your Slide:

The Structure
in its bag
Extra equipment needed in addition what is supplied with your inflatable:
• Suitable 240v Power Supply to operate the fan
CAUTION!
prevent electric shock. The blower requires a Ground Fault Protected Circuit
(GFCI). Please read the manufacturer's Instruction Manual before using the blower(s).
Extra equipment you could consider for your new inflatable:
• Ground sheet to protect the underside of your inflatable
• Sandbag covers to anchor your inflatable indoors
8M Platform Slide
IMPORTANT
The Slide
Land Operation
in its bag
Manual
Precautions should be taken during handling and use of the product to
Anchor Pegs
Repair Kit
Page 1 of 5
Anchoring
Straps
4
X

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8M Platform Slide and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for airquee 8M Platform Slide

  • Page 1 8M Platform Slide IMPORTANT AS OWNER/OPERATOR IT IS YOUR RESPONSIBILITY TO WRITE AND CARRY OUT YOUR OWN RISK ASSESSMENT BEFORE ATTEMPTING TO USE THIS PRODUCT. Site survey: 1. Carry out a survey of the area where the Slide will be located, and check for any overhead/underground cables.
  • Page 2 • Forklift to move your inflatable safely • RCD to attach to your extension lead • Crash Mats This inflatable can be set up and packed away by 8 persons who have had proper manual handling training and use the correct equipment to move the inflatable.
  • Page 3 You may start unrolling the Slide. Roll out in the correct direction and unfold it. Please locate and take out all the anchor ropes, making sure all the upper anchors are properly tied with a rope. You won’t be able to reach them after the unit is inflated. If you must connect the 2 parts: there are 4 points to start folding the Dutch Lacing system.
  • Page 4 Connect the Velcro flaps to cover and protect the dutch lacing all around the unit. After inflation please add the supplied webbing anchoring straps as shown on the figure below. Rolling up and folding: Always roll both parts of the unit from the climb sheet. This way at the next event, you will be able to position the slide part exactly where you want the unit to end, especially if you want to connect the slide with other units.
  • Page 5 ENJOY AND HAVE FUN! Airquee reserves the right to change the content of this manual without a prior notice to the customer. The model of your product and the type and number of your inclusions may differ from the one presented in this manual.
