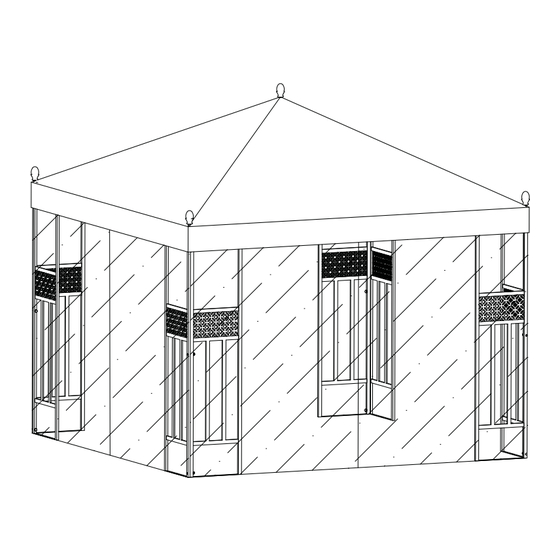

- Page 1 Item #1000-000-000 Model #GFS00323A USE AND CARE GUIDE STEEL GAZEBO Questions, problems, missing parts? Before returning to the store call Customer Service. 8 a.m. - 6 p.m., EST, Monday-Friday 1-888-628-1888 HOMEDEPOT.COM...
-
Page 2: Table Of Contents
In addition, purchased parts are not covered under this warranty. We reserve the right to make the substitutions with similar merchandise, if the model in question is no longer in production. Contact the Customer Service Team at 1-888-628-1888 or visit www.homedepot.com Safety Information... -
Page 3: Pre-Assembly
HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Part Description Quantity M6 Nut Plastic ring M6x12 Bolt Ground spike Hex wrench M6x30 Bolt M6x50 Bolt Wrench Gasket HOMEDEPOT.COM Please contact 1-888-628-1888 for further assistance. -
Page 4: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Front panel Fabric hanger Side panel Canopy hub Cape Left connector bar Right connector bar Decorative ball Top corner inclined tube Canopy fabric Middle top tube Netting... -
Page 5: Assembly
M6x50 bolts (DD) and M6 nuts (AA). Repeat for the remaining sets of the panels (A and B). NOTE: Loosely tighten the bolts with the hex wrench (HH) and wrench (II). HOMEDEPOT.COM Please contact 1-888-628-1888 for further assistance. - Page 6 Assembly (continued) Assembling the connector bars Attach the right connector bar (D) to the left connector bar (C) using M6X12 bolts (BB). Repeat for the remaining sets of the connector bars (C and D). NOTE: Loosely tighten the bolts with the hex wrench (HH).
- Page 7 (C and D) with M6x50 bolts (DD) and M6 Nut (AA). Repeat for the remaining sets of the cape (I). NOTE: Loosely tighten the bolts with the hex wrench (HH) and wrench (II). HOMEDEPOT.COM Please contact 1-888-628-1888 for further assistance.
- Page 8 Assembly (continued) Assembling the canopy Insert the four top corner inclined tubes (E) into the canopy hub (H). Insert the four middle top tubes (F) into the canopy hub (H).
- Page 9 Screw the decorative ball (J) through the canopy fabric (K) onto the canopy hub (H). NOTE: You may opt to tighten all bolts now before the fabric cover is attached to the frame of the gazebo. HOMEDEPOT.COM Please contact 1-888-628-1888 for further assistance.
- Page 10 Assembly (continued) Attaching the canopy to the top of the panel structure Place the structure assembled in step 5 on top of the assembled panel structure from step 3. Insert the top corner inclined tubes (E) into the four capes (I). Secure the middle top tubes (F) to the right connector bars (D) by using M6x12 bolts (BB).
- Page 11 Assembly (continued) Adding the decorative balls Screw the decorative balls (J) through the canopy fabric (K) and into the capes (I) on each corner. HOMEDEPOT.COM Please contact 1-888-628-1888 for further assistance.
- Page 12 Assembly (continued) Attaching the fabric hanger Attach the fabric hanger (G) and the gasket (EE) to the top of the connector bars (C&D) with M6x30 bolts (CC).
- Page 13 Assembly (continued) Hanging the netting Place the plastic rings (FF) onto the fabric hanger (G). Attach the netting (L) to the plastic rings (FF). HOMEDEPOT.COM Please contact 1-888-628-1888 for further assistance.
-
Page 14: Care And Cleaning
Assembly (continued) Grounding the gazebo Pound the ground spikes (GG) through the holes on the flat bars on the bottom of panels (A and B). Care and Cleaning For the best results, clean the frame and fabric with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate. - Page 15 Questions, problems, missing parts? Before returning to the store, call Customer Service. 1-888-628-1888 HOMEDEPOT.COM Retain this manual for future use.
