HOMEDEPOT L-GG029PST Owner's Manual

Hardtop grill gazebo

Advertisement

NOTICE:
Read and follow the instructions in this manual to ensure correct assembly of this product.
Keep children and pets away from assembly area unless they are supervised.
Keep assembly area at least 6 feet from any obstruction such as a fence, garage, house,
overhanging branches, laundry line, or electrical wires.
Some parts may have sharp edges. When assembling and using this product, basic safety
precautions should always be followed to reduce the risk of personal injury and damage to the
product.
Assemble on level ground.
Check all bolts for tightness before use, and periodically check and tighten bolts as necessary.
This unit is heavy. Do not assemble this item alone.

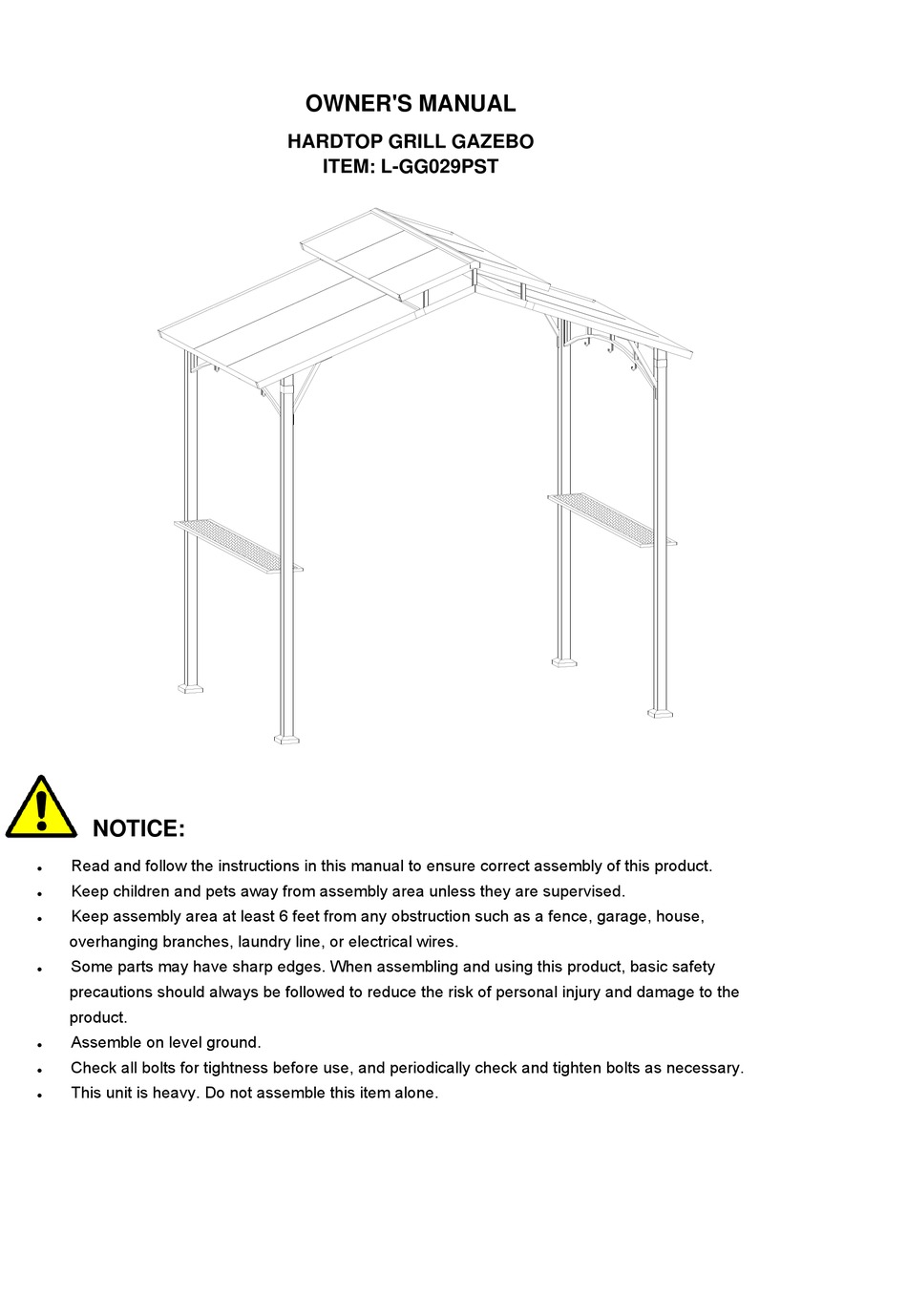

OWNER'S MANUAL
HARDTOP GRILL GAZEBO
ITEM: L-GG029PST

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L-GG029PST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HOMEDEPOT L-GG029PST

  • Page 1 OWNER'S MANUAL HARDTOP GRILL GAZEBO ITEM: L-GG029PST NOTICE: Read and follow the instructions in this manual to ensure correct assembly of this product.  Keep children and pets away from assembly area unless they are supervised.  Keep assembly area at least 6 feet from any obstruction such as a fence, garage, house, ...
  • Page 3 Parts List Roof Vent Base Base Cover Truss Beam (1) Truss Beam (2) Top Connecting Pole Connecting Board 1 Connecting Board 2 Connecting Board 3 Top Hook Roof Cladding – long panel (1) Roof cladding – long panel(2) Roof Cladding – long panel(3)...
  • Page 4 Hardware Pack Used in Step 1 M6X20 Screw 40PCS M6 Washer 40PCS M6 Wrench 2 PCS Fig.1: Attach truss beam D1 (D2) to top roof vent (A), assemble them with baffle (F2) by using screw (AA) and washer (BB). Fig.2: Attach top hook (G) to Top Connecting Pole (E). Fig.3: Attach Top Connecting Pole (E) to top roof vent (A) by using screw (AA) and washer (BB)
  • Page 5 Fig.4: Attach Connecting Board (F3) to top roof vent (A) by using screw (AA) and washer (BB) Fig.5: Attach Truss Beam D1 (D2) to Connecting Board (F3) by using screw (AA) and washer (BB) Fig.6: Attach Connecting Board F1 to Truss Beam D1 (D2) by using screw (AA) and washer (BB) Hardware Pack Used in Step 2 M6 Washer 42PCS...
  • Page 6 Fig.7: Attach the Roof cladding – short panel (I1 I2 I3) to Cover Supporting Board (O) by using screw (CC) and washer (BB) Fig.8: Attach Roof cladding – long panel (H1 H2 H3) to Cover Supporting Board (O) by using screw (CC) and washer (BB) Fig.9: Attach trim cap (J) to Top Connecting Pole by using screw (DD) and washer (BB).
  • Page 7 Hardware Pack Used in Step 3 M6X20 Screw 40PCS M6 Washer 48PCS M6X15 Screw 8PCS Φ8X180 Stake 8 PCS...
  • Page 8 Fig.10: Insert Base cover (C) into Pole (K1&K2), attach Base (B) and Pole K1&K2 by using screw (CC), washer (BB). Fig.11: Lift the assembled top frame, insert into Pole K1&K2, locked them by using screw (AA), washer (BB). Fig.12: Attach Screen (N) to Pole (K1&K2) by using screw (AA), washer (BB). Fig.13: Attach Skew support piece (L) onto Pole K1 (K2) and Truss Beam D1 (D2) by using screw (AA), washer (BB).
