HOMEDEPOT FQS80039 Use And Care Manual

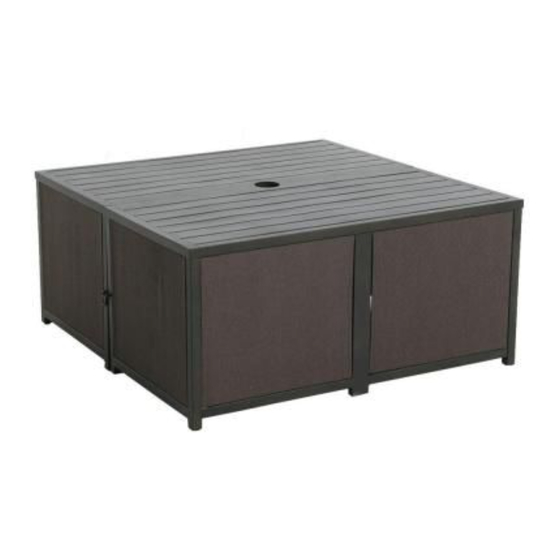

3-in-1 umbrella table, bench, and umbrella base cover
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Item # 000 000
Model # FQS80039
USE AND CARE GUIDE
3-IN-1 UMBRELLA TABLE, BENCH, AND UMBRELLA BASE COVER
Questions, problems, missing parts? Before returning to the store
call Customer Service.
1-877-527-0313
HOMEDEPOT.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FQS80039 and is the answer not in the manual?

Questions and answers

Related Manuals for HOMEDEPOT FQS80039

Summary of Contents for HOMEDEPOT FQS80039

  • Page 1 Item # 000 000 Model # FQS80039 USE AND CARE GUIDE 3-IN-1 UMBRELLA TABLE, BENCH, AND UMBRELLA BASE COVER Questions, problems, missing parts? Before returning to the store call Customer Service. 1-877-527-0313 HOMEDEPOT.COM...

  • Page 2: Table Of Contents

    In addition, purchased parts are not covered under this warranty. We reserve the right to make substitutions with similar merchandise, if the model in question is no longer in production. Contact the Customer Service Team at 1-877-527-0313 or visit www.HomeDepot.com.

  • Page 3: Pre-Assembly

    To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. NOTE: More than one person may be required to assemble this product. HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity M6X30 bolt 20+1 Washer 20+1 Hex wrench HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.

  • Page 4: Package Contents

    Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Table top Right plate Left plate Long side plate Table ring...

  • Page 5: Assembly

    Place the table top (A) upside down on a soft surface. Attach the long side plate (D) to the table top (A) using M6X30 bolts (AA) and washers (BB). NOTE: Loosely tighten all bolts using the Hex wrench (CC). HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
  • Page 6 Assembly (continued) Attaching the right plate to the table top and the long side plate Attach the right plate (B) to the table top (A) and the long side plate (D), using M6X30 bolts (AA) and washers (BB), as shown below. NOTE: Loosely tighten all bolts using the hex wrench (CC).
  • Page 7 Attach the left plate (C) to the table top (A) and the long side plate (D), using M6X30 bolts (AA) and washers (BB), as shown below. Once all bolts are in place, fully tighten all the bolts. HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
  • Page 8 Assembly (continued) Placing the umbrella If using an umbrella, place an umbrella base under the table so that opening in base aligns with the umbrella hole. Place the umbrella ring into the table if using a 7.5ft or a 9ft umbrella, or remove umbrella ring if larger than 9ft umbrella. Insert the umbrella through the hole into the umbrella base.
  • Page 9 If you want to use an umbrella with this item, an umbrella base is required. Do not use this umbrella - table - bench without an umbrella weight. HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.

  • Page 10: Care And Cleaning

    Assembly (continued) Checking the table Ensure all connections are secure before use. NOTE: The umbrella and the umbrella base are not included, but the umbrella base is needed to use this table. If you want to use an umbrella with this item, an umbrella base is required. Do not use this umbrella - table - bench without an umbrella weight.
  • Page 11 Questions, problems, missing parts? Before returning to the store, call Customer Service. 1-877-527-0313 HOMEDEPOT.COM Retain this manual for future use.
