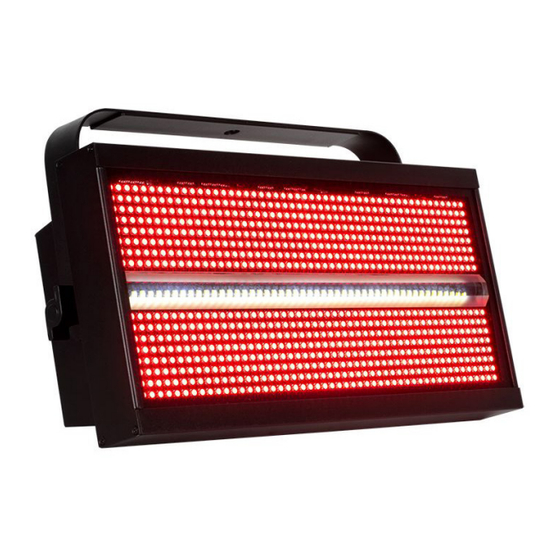

JOLT PANEL FX
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JOLT PANEL FX and is the answer not in the manual?

Questions and answers

Related Manuals for ADJ JOLT PANEL FX

Summary of Contents for ADJ JOLT PANEL FX

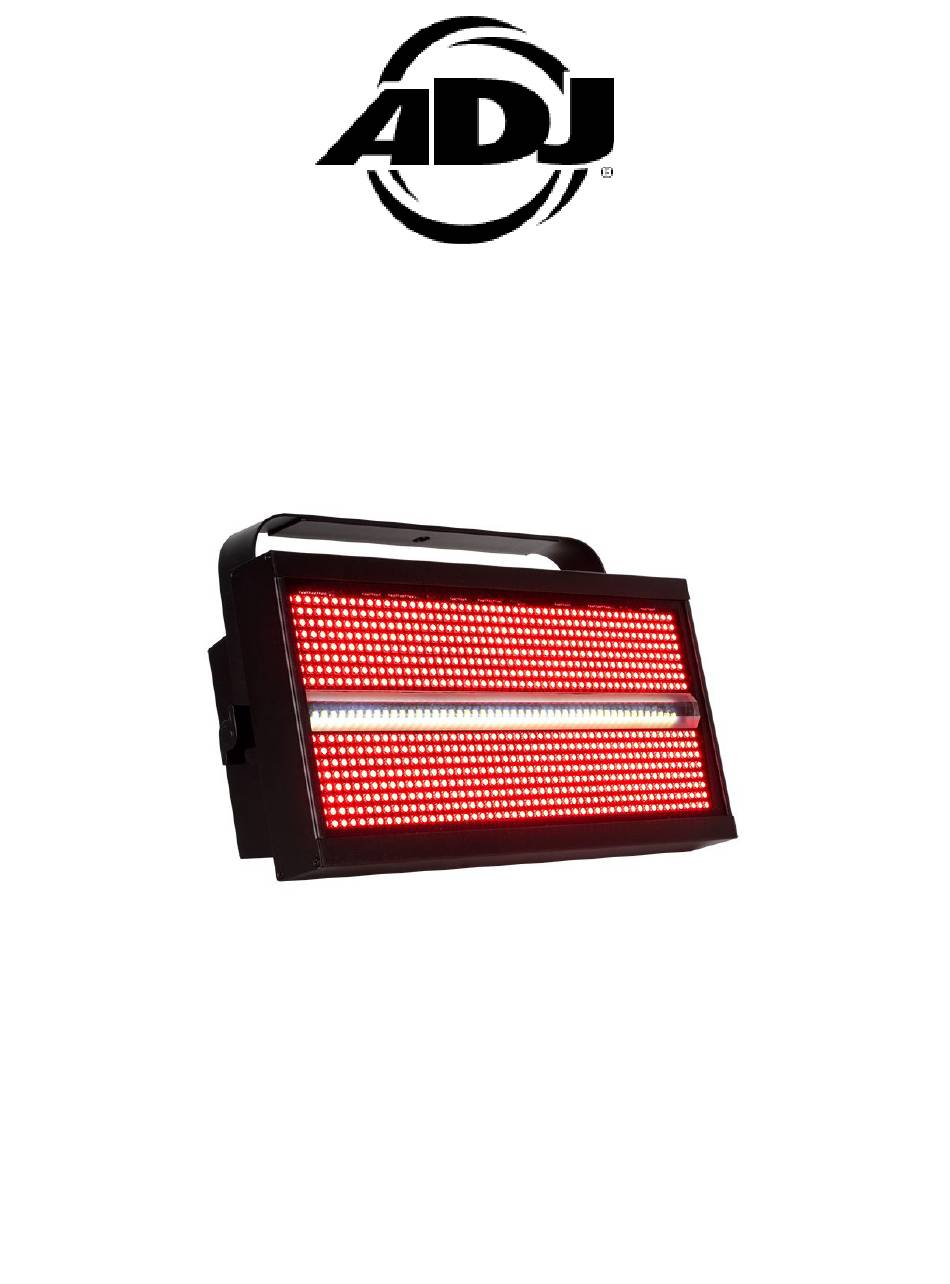

  • Page 1 JOLT PANEL FX User Manual...
  • Page 2 Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Introduction Limited Warranty (USA Only) Warranty Registration | Features Safety Guidelines Overview Installation Remove Device Management Control Panel System Menu DMX Setup DMX Traits LED Pixel Zones Dimmer Modes and Curves Daisy Chain Power Linking | Cleaning and Maintenance Software Update Instructions Dimensional Drawings Specifications...

  • Page 4: Introduction

    INTRODUCTION Unpacking: Thank you for purchasing the Jolt Panel FX by ADJ Products, LLC. Every device has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to have been dam- aged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit have arrived intact.

  • Page 5: Limited Warranty (Usa Only)

    LIMITED WARRANTY (USA ONLY) A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products to be free of manufacturing defects in material and workmanship for a prescribed period from the date of purchase (see specific warranty period on reverse). This warranty shall be valid only if the product is purchased within the United States of America, including possessions and territories.

  • Page 6: Warranty Registration | Features

    WARRANTY REGISTRATION The Jolt Panel FX carries a 2 year limited warranty. Please fill out the enclosed warranty card to vali- date your purchase. All returned service items, whether under warranty or not, must be freight pre- paid and accompanied by a return authorization (R.A.) number. The R.A. number must be clearly writ- ten on the outside of the return package.

  • Page 7: Safety Guidelines

    THIS FIXTURE IS COMPOSED OF SOPHISTICATED ELECTRONIC COMPONENTS. TO GUARANTEE SMOOTH OPERATION, IT IS IMPORTANT TO FOLLOW ALL INSTRUCTIONS AND GUIDELINES IN THIS MANUAL. ADJ PRODUCTS, LLC IS NOT RESPONSIBLE FOR INJURY AND/OR DAMAGES RESULTING FROM THE MISUSE OF THIS FIXTURE DUE TO THE DISREGARD OF THE INFORMATION PRINTED IN THIS MANUAL.

  • Page 8: Overview

    OVERVIEW...

  • Page 9: Installation

    INSTALLATION FLAMMABLE MATERIAL WARNING Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotech- nics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. MINIMUM DISTANCE TO OBJECTS/SURFACES IS 6.6 FEET (2 METERS). MINIMUM DISTANCE OF INFLAMMABLE MATERIALS FROM THE SURFACE IS 1.6 FEET (0.5 METER) DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO!
  • Page 10 INSTALLATION CLAMP INSTALLATION This fixture features a mounting point on the yoke for the attachment of a mounting clamp. There is also a safety cable loop located on the rear of the fixture (see the illustration below). When mounting the fixture to a truss or any other suspended or overhead installation, be sure to secure appropri- ately rated clamps (not included) to the yoke, and attach a separate SAFETY CABLE of the appropri- ate weight rating to the safety cable loop.

  • Page 11: Remove Device Management

    REMOTE DEVICE MANAGEMENT NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems. Remote Device Management (RDM) is a protocol that sits on top of the DMX512 data standard for lighting, and allows the DMX systems of the fixtures to be modified and monitored remotely.

  • Page 12: Control Panel

    CONTROL PANEL The fixture includes an easy to navigate system menu control panel display where all necessary set- tings and adjustments are made. (See image below) • MENU: Leave current menu and return to previous menu level. • UP: Scroll up in currently displayed menu. •...

  • Page 13: System Menu

    SYSTEM MENU 1 - 507 (6ch) 1 - 504 (9ch) 1 - 500 (13ch) 1 - 495 (18ch) DMX Address 1 - 477 (36ch) 1 - 472 (41ch) 1 - 387 (126ch) 1 - 372 (141ch) 13CH 18CH DMX Channel Mode DMX SETTINGS 36CH 41CH...
  • Page 14 SYSTEM MENU Temperature Unit °C / °F High Fan Speed Auto Red1 (000 - 255) Green1 (000 - 255) Blue1 (000 - 255) PERSONALITY (continued) Red2 (000 - 255) White Balance Green2 (000 - 255) Service (Passcode = 011) Blue2 (000 - 255) ON / OFF USB Port Power Yes / No...

  • Page 15: Dmx Setup

    DMX chain. Data Cable (DMX Cable) Requirements (For DMX Operation):The Jolt Panel FX can be controlled via DMX-512 protocol, and features multiple DMX channel modes. Your unit and your DMX control- ler require a 5-pin XLR connector for data input and data output.
  • Page 16 DMX SETUP DMX ADDRESSING All fixtures should be given a DMX starting address when operating with a DMX controller, in order to ensure that the correct fixture responds to the correct control signal. This digital starting address is the channel number from which the fixture starts to “listen” to the digital control signal sent out from the DMX controller.

  • Page 17: Dmx Traits

    DMX TRAITS CHANNEL FUNCTION VALUES 000 - 255 Outer Red, 0% to 100% 000 - 255 Outer Green, 0% to 100% 000 - 255 Outer Blue, 0% to 100% 000 - 255 Inner White, 0% to 100% 000 - 255 Inner White Group 1 000 - 255 Inner White Group 2 000 - 255 Dimmer, 0% to 100% 000 - 255 Dimmer Fine, 0% to 100%...
  • Page 18 DMX TRAITS CHANNEL FUNCTION VALUES Outer Program Macro 000 - 005 No function 006 - 015 Macro1 016 - 025 Macro2 026 - 035 Macro3 036 - 045 Macro4 046 - 055 Macro5 056 - 065 Macro6 066 - 075 Macro7 076 - 085 Macro8 086 - 095 Macro9 096 - 105 Macro10...
  • Page 19 DMX TRAITS CHANNEL FUNCTION VALUES Inner Strobe Effect 000 - 002 Open 003 - 005 Strobe 006 - 050 Ramp up 051 - 100 Ramp down 101 - 150 Ramp up-down 151 - 200 Lightning 201 - 255 Random 000 - 255 Inner Strobe Rate, slow to fast 000 - 255 Inner Strobe Duration, slow to fast Inner Program Macro 000 - 005 No function...
  • Page 20 DMX TRAITS CHANNEL FUNCTION VALUES 000 - 255 Red 5 000 - 255 Green 5 000 - 255 Blue 5 000 - 255 Red 6 000 - 255 Green 6 000 - 255 Blue 6 000 - 255 Red 7 000 - 255 Green 7 000 - 255 Blue 7 000 - 255 Red 8...
  • Page 21 DMX TRAITS CHANNEL FUNCTION VALUES 000 - 255 Blue 16 000 - 255 Red 17 000 - 255 Green 17 000 - 255 Blue 17 000 - 255 Red 18 000 - 255 Green 18 000 - 255 Blue 18 000 - 255 Red 19 000 - 255 Green 19 000 - 255 Blue 19...
  • Page 22 DMX TRAITS CHANNEL FUNCTION VALUES 000 - 255 Green 28 000 - 255 Blue 28 000 - 255 Red 29 000 - 255 Green 29 000 - 255 Blue 29 000 - 255 Red 30 000 - 255 Green 30 000 - 255 Blue 30 000 - 255 Red 31 000 - 255 Green 31...
  • Page 23 DMX TRAITS CHANNEL FUNCTION VALUES 000 - 255 Red 40 000 - 255 Green 40 000 - 255 Blue 40 000 - 255 White 1 000 - 255 White 2 000 - 255 White 3 000 - 255 White 4 000 - 255 White 5 000 - 255 White 6...

  • Page 24: Led Pixel Zones

    LED PIXEL ZONES 6 / 9 / 13 / 18 CHANNEL MODE 36 / 41 CHANNEL MODE 126 / 141 CHANNEL MODE...

  • Page 25: Dimmer Modes And Curves

    DIMMER MODES AND CURVES...

  • Page 26: Daisy Chain Power Linking | Cleaning And Maintenance

    Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer.

  • Page 27: Software Update Instructions

    PLEASE CONTACT ADJ CUSTOMER SERVICE FOR FURTHER INFORMATION 1. Contact ADJ customer service to obtain the updated software. Download the software to a USB flash drive. In order to minimize the risk of downloading the incorrect software to your device, make sure that the desired update files are the only files present on the USB flash drive.

  • Page 28: Dimensional Drawings

    DIMENSIONAL DRAWINGS Dimensions are not drawn to scale.

  • Page 29: Specifications

    SPECIFICATIONS LIGHT SOURCE: • 800 x 0.3W RGB SMD LEDs + 48 x 5W Cool White SMD LEDs • RGB LEDs: 121 Degree Beam Angle • Cool White LEDs: 89 Degree Beam Angle • Color Temperature: Red: 620-630nm. Green: 515-525nm. Blue: 460-470nm. / Cool White: 6500- 7000K •...
