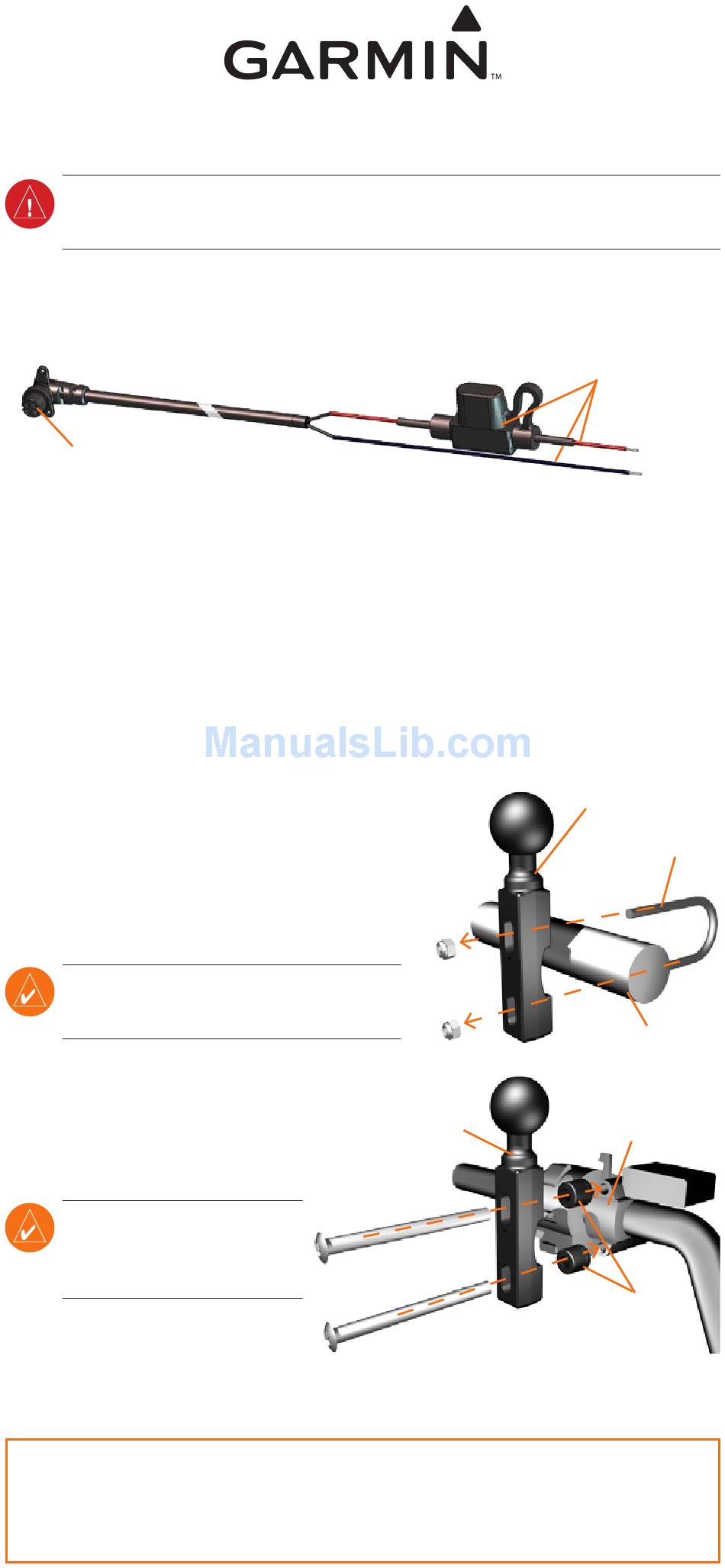

Garmin Zumo 400 Installation Sheet

zūmo
Warning: The terms of the Garmin Warranty require that the power cable with bare wire leads be
installed by experienced installers having the proper knowledge of automotive electrical systems and
skill in the use of special tools or hardware required for installation.
1: Connect Power to the Mount
Select a suitable and secure location to mount the zūmo on your motorcycle based on available
power sources and safe cable routing.
Power connector
About connecting audio
Standard jacks for microphone (2.5 mm) and audio out (3.5 mm) are located on the left side of
the mount (under a weather cap). When connecting your audio system to the zūmo, be sure to
consider the pathways needed to route the necessary cables. For more information, refer to the
zūmo 400/450 Quick Reference Guide and the zūmo 400/450 Owner's Manual on disk.
2: Install the Handlebar Base
The zūmo includes parts for two handlebar installation solutions. Custom mounts can require
additional hardware (www.ram-mount.com).
A) To install the U-bolt and handlebar base:
1. Place the U-bolt around the handlebar, and thread
the ends through the handlebar base.
2. Tighten the nuts to secure the base. Do not
overtighten.
note: The recommended torque is 50in-lb
(5.7 N-m). Do not exceed maximum torque of
80in-lb (9 N-m).
B) To install the handlebar base to
the clutch/brake clamp bracket:
note: Both 1/4" standard and M6
bolts are included. Match the size of
the factory bolts on your clutch/
brake clamp bracket.
1. Remove the two factory bolts on your
clutch/brake clamp bracket.
2. Thread the new bolts through the handlebar base, spacers, and clamp bracket.
3. Tighten the bolts to secure the base.
Garmin is a trademark of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. zūmo
®
trademark of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of
Garmin.
March 2007
400/450 I
™
Part Number 190-00778-03 Rev. B
nstallatIon
Handlebar
base
s
heet
Bare wires with
inline fuse for
power connection
Handlebar base
Handlebar
Clutch/brake
clamp bracket
Spacers
™
Printed in Taiwan
