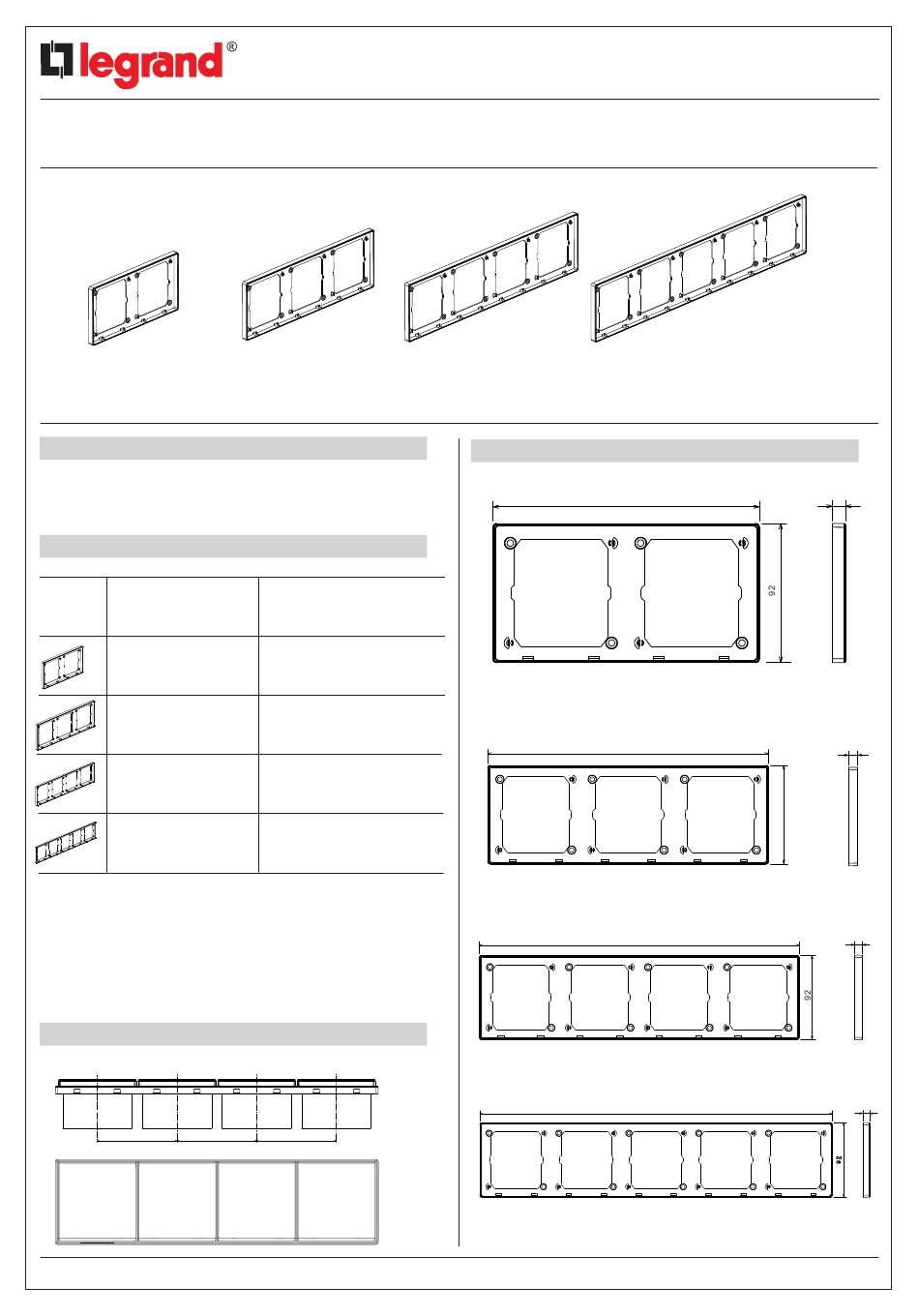

LEGRAND Galion 2 824 72 Quick Start Manual

TM
Galion

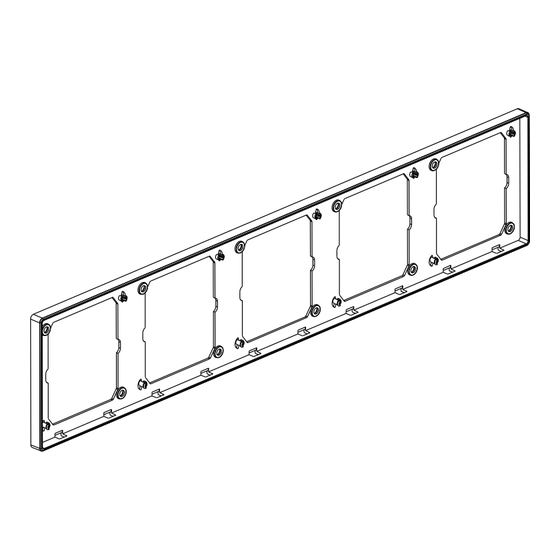

Connection Frame
2 824 72/72m
1. USE
Multi-frame,to be equipped with 2 to 5 products.
(Supplied with M3.5 screws for BS boxes. Flush mounting or Surface
mounting.)
2. RANGE
Designation
2 Gang Frame
3 Gang Frame
4 Gang Frame
5 Gang Frame
Colours
- front: white/rose golden/champagne/dark silver
- rear: white/rose golden/champagne/dark silver
X XXX XX white
X XXX XX-C matt black
X XXX XX-C1 rose golden
X XXX XX-C2 champagne
X XXX XX-C3 dark silver
3.INSTALLATION
3.1 Installation diagram
86
Technical data sheet:F02865EN/01
2 824 73/73m
Cat. No.
2 824 72/72m
2 824 73/73m
2 824 74/74m
2 824 75/75m
86 86
87045 Limoges Cedex
Telephone: (+33) 05 55 06 87 87 - Fax:(+33) 05 55 06 88 88
Cat. No(s): 2 824 72/72m/73/73m/74/74m/75/75m
2 824 74/74m
4. OVERALL DIMENSIONS
2 824 72/72m
Profile Size: 92×176.2 mm
Profile Size: 92×262.4 mm
Profile Size: 92×348.6 mm
Profile Size: 92×434.8 mm
Updated: 13/07/2021
2 824 75/75m
176.2
262.4
2 824 73/73m
348.6
2 824 74/74m
434.8
2 824 75/75m
Created: 20/08/2019
8.7
8.7
92
8.7
8.7
1/2
