No: D000047 – 11/19 rev. 1
Catalog Numbers • Les Numéros de Catalogue • Los Números de Catálogo: SF-T4
Country of Origin: Made in Canada • Pays d'origine: Fabriqué en Canada • País de origen: Hecho en Canadá
Tools Required for Installation:
• Flathead Screwdriver
• Suitable #8 Pan Head Screws
(4 per shade)
• Safety Glasses
• Gloves

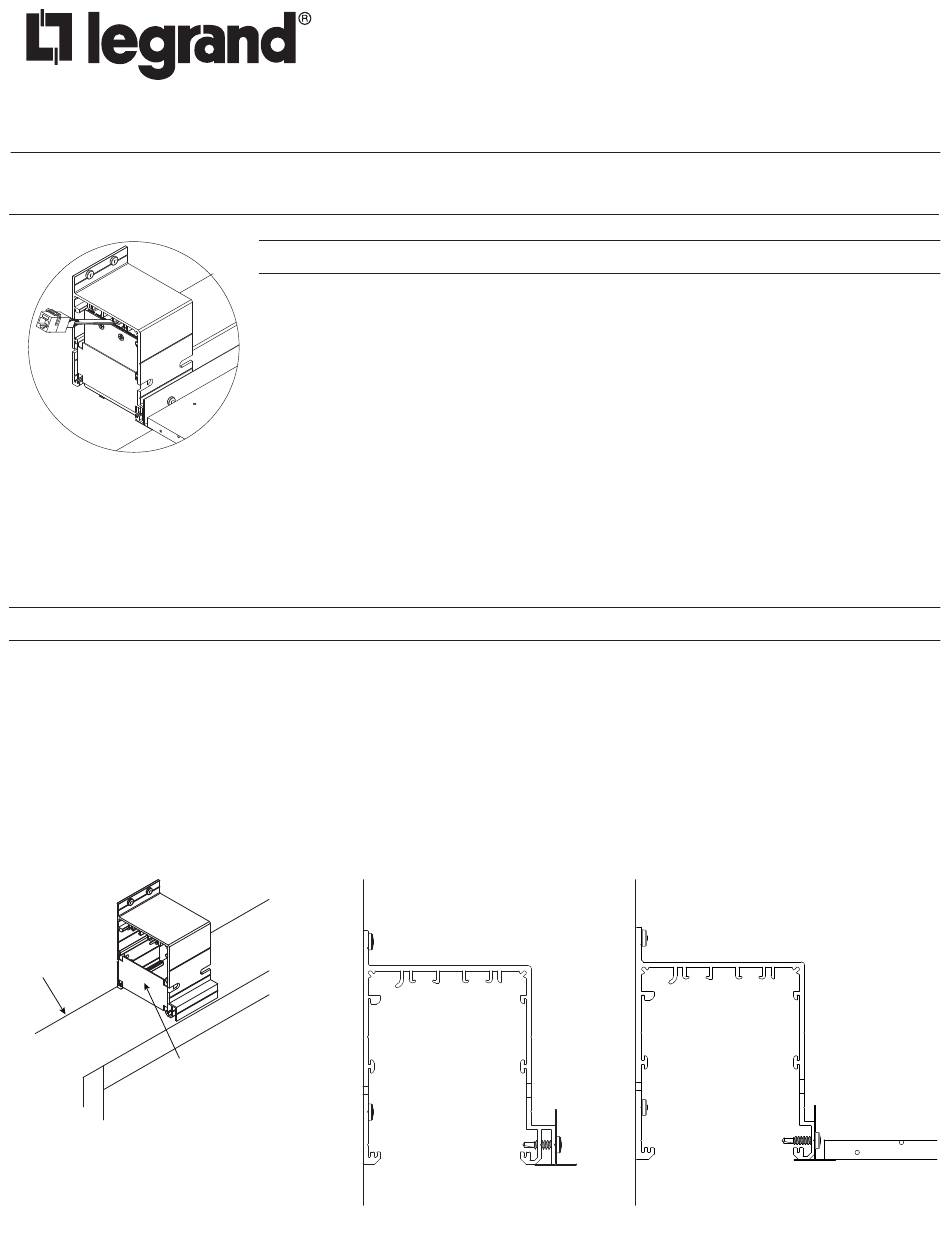

Step 1 Attach Televent Hoods
Attach each Televent Hood with appropriate
fasteners with the bottom edge at the same
height as the bottom of the drop ceiling.
Ensure the middle of hood is even with the
middle of the mullion.
Ceiling line
on wall above
window
Leave spreader in the
hood during installation
to avoid compression
during ceiling installation.
The Televent Shade system is a unitized shade cassette system designed to form a vented pocket
above the ceiling. The Televent system may be either motorized or manual, and is available with the
full range of fabrics and accessories from the Solarfective collection.
CAUTION – Be sure to follow all appropriate safety guidelines, including the use of safety glasses
and ensure to keep the shade fabric clean by using clean gloves whenever touching it.
INSTALLATION
Step 2 Attach Ceiling T-Bar
Screw T-Bar to Televent Hood as
shown.
Solarfective
Televent
Installation Instructions
DESCRIPTION AND OPERATION
®
Step 3 Install Ceiling Tiles
NOTE: Coordinate installation with the
ceiling contractor to ensure ceiling
is installed level prior to attaching
shade hoods.
Bring ceiling tile to T-Bar as shown. The
Televent Hood cannot support any ceiling
weight. Ensure that all ceiling materials are
properly secured with their own support
system, as using the shading as support will
cause mounting system failure.
Advertisement
Table of Contents
Related Manuals for LEGRAND Solarfective SF-T4
Summary of Contents for LEGRAND Solarfective SF-T4
- Page 1 Solarfective ® Televent No: D000047 – 11/19 rev. 1 Installation Instructions Catalog Numbers • Les Numéros de Catalogue • Los Números de Catálogo: SF-T4 Country of Origin: Made in Canada • Pays d’origine: Fabriqué en Canada • País de origen: Hecho en Canadá DESCRIPTION AND OPERATION The Televent Shade system is a unitized shade cassette system designed to form a vented pocket above the ceiling.

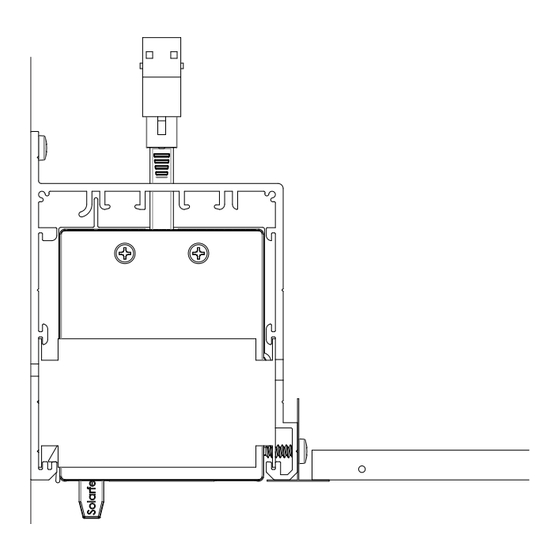

- Page 2 Step 4 Position Televent Shade Step 5 Install the Televent Shade On the Televent unit, push the spring clip out about ½” Push the shade up into the hood until a distinct click before installing the shade, so it will snap into place. is heard.
- Page 3 Product, as evidenced by such Buyer’s proof of purchase, for the time periods set forth below: • For all shade motors, controls, and power supplies manufactured by Legrand: lifetime of the motor, control or power supply •...
