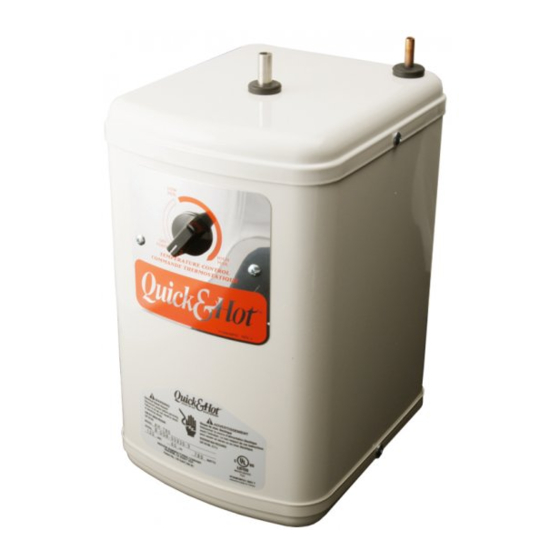

- Page 1 INSTANT HOT SYSTEM INSTALLATION INSTRUCTION & OWNER’S MANUAL Ver3.1 www.FreeDrinkingWater.com All Rights Reserved © APEC Water Systems...
-
Page 2: Before Installation
A). Installing the instant hot system with the RO System If you are installing the instant hot system with the RO system together please follow the RO system manual for RO setup. When you get to Step 4: Mounting The Faucet, please follow the steps indicated in this manual. -
Page 3: Recommended Products
Components included with the Instant Hot System: Make sure you have all these parts before starting installation. Quick Connect 1 Instant Hot Tank Tank Mounting Quick Connect Bracket Fitting 1/4” Fitting w/ Filter and Cap (for installation without RO System) Optional parts below come with APEC Hot &... - Page 4 HOT & COLD FAUCET INSTRUCTION WESTBROOK Drinking Water Faucet Blue Line Clear Line Red Line RO Pure water to cold side of faucet Hot Water Cold Water Output Input ©2021 APEC Water Systems. All rights reserved. v. 2. 2021 www.FreeDrinkingWater.com...
- Page 5 HOT & COLD FAUCET * Hot & Cold Fauce already installed into counter. Step 1: Be sure the dial on the instant hot system is in OFF position during installation. Step 2 A: Install nut on the hot water tubing connector.
- Page 6 Remove black cap on system inlet first. Take the #1 quick connect fitting and connect it to the inlet tube located on top corner of the instant hot sys- tem. Push as far as you can and gently pull back to make sure the connection is secure.
-
Page 7: Step 8: Setting The Temperature
Turn on cold water supply to RO system, turn on the tank ball valve on the RO tank and turn faucet on to fill the instant hot system for about 1 minute. When the instant hot system tank is full, water will flow from faucet. -
Page 8: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS PLEASE READ ALL INSTRUCTIONS VERY CAREFULLY When using eletrical appliances, basic safety precautions should always be followed including the following: 1. Read all instructions. 2. To protect against eletrical shock, do not place cord, plugs, or appliance in water or other liquid. 3. -
Page 9: Cleaning And Maintenance
CLEANING AND MAINTENANCE Seasonal Shutdown To prevent damage when dispenser is exposed to freezing temperatures, water must be drained. 1. Unplug dispenser tank to power supply. 2. Turn thermostat control dial to OFF position (fully counterclockwise). 3. Turn faucet on and run water until water is cold. 4. -
Page 10: Troubleshooting
TROUBLESHOOTING The following situations are not covered by the One Year Warranty. 1. Water is not hot: (assuming cold water supply is connected properly and valve is open) • Check if dispenser is plugged in. • Turn thermostat control dial fully clockwise. This may produce boiling water in approximately 15 mintues and possibly be accompanied by a gurgling sound in the tank and/or water “sputtering”... -
Page 11: Limited Product Warranty
LIMITED PRODUCT WARRANTY Scope APEC takes pride in selling a superb line of products, including this Instant Hot System (“Product”). As such, APEC expressly warrants to the original purchaser that, for a period of one (1) year from the date of purchase, the Product will be reasonably free of defects in materials and workmanship. - Page 12 CONDITIONS THAT RENDER THIS LIMITED PRODUCT WARRANTY VOID THIS LIMITED PRODUCT WARRANTY SHALL BE VOID IF: 1. The Product is not operated in compliance with normal municipal water conditions for which the particular model of this Product is intended. 2. The person seeking to invoke the warranty is not the original purchaser. That is, this Limited Prod- uct Warranty only extends to original purchasers.
- Page 13 Advanced Purification Engineering Corp. 301 Brea Canyon Road City of Industry, CA 91789 For questions or comments please visit our website at: www.FreeDrinkingWater.com For technical support contact us at: Techsupport@freedrinkingwater.com 1-800-880-4808...
