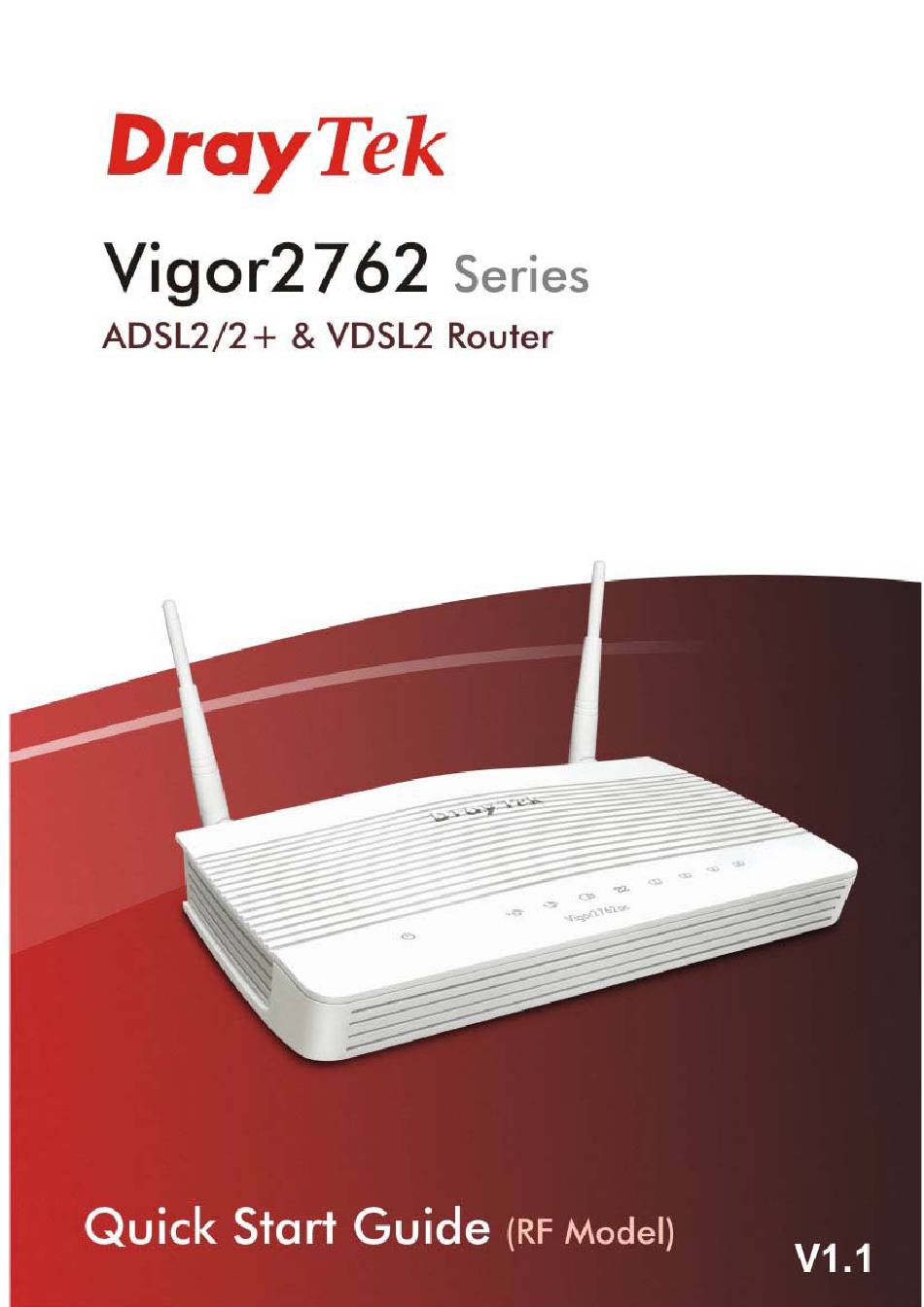

- Page 2 Vigor2762 Series ADSL2/2+ & VDSL2 Router Quick Start Guide Version: 1.1 Firmware Version: V3.8.8 (For future update, please visit DrayTek web site) Date: March 19, 2018...
- Page 3 Intellectual Property Rights (IPR) Information © All rights reserved. This publication contains information that is protected Copyrights by copyright. No part may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders. The following trademarks are used in this document: Trademarks Microsoft is a registered trademark of Microsoft Corp.
- Page 4 Declaration of Conformity Hereby, DrayTek Corporation declares that the radio equipment type Vigor2762 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.draytek.com.tw/ftp/Vigor2762/Document/CE/ Manufacturer: DrayTek Corp. Address: No.
- Page 5 Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. The antenna/transmitter should be kept at least 20 cm away from human body. More update, please visit www.draytek.com.
-
Page 6: Table Of Contents
1. Introduction......................1 2. Package Content ....................2 3. Panel Explanation....................3 4. Hardware Installation ................... 5 4.1 Network Connection ........................5 4.2 Wall-Mounted Installation ......................6 5. Software Configuration ..................7 6. Customer Service ....................12 Be a Registered Owner ........................12 Firmware &... -
Page 7: Introduction

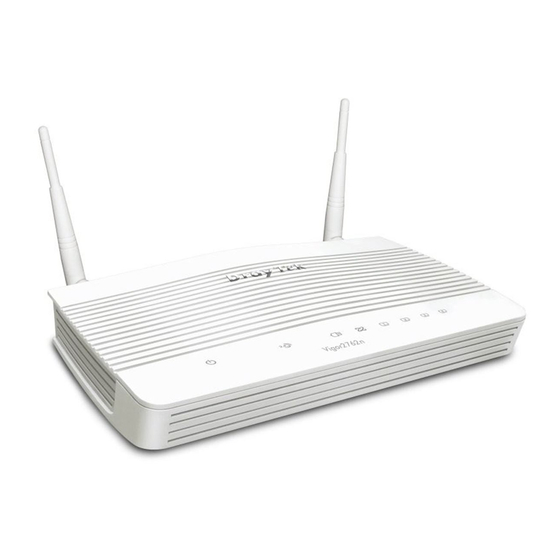

The Vigor2762 series are the routers with high speed in data transmission through DSL port and LAN ports. DrayTek launches Vigor2762 series – high speed router, perfectly complied with VDSL2 environment including Vigor2762n (2.4GHz), Vigor2762ac (2.4GHz/5GHz) and Vigor2762Vac (2.4GHz/5GHz with VoIP feature) for speed-wanted customers. -
Page 8: Package Content
Take a look at the package content. If there is anything missed or damaged, please contact DrayTek or dealer immediately. Vigor router Quick Start Guide RJ-45 Cable (Ethernet) RJ-11 to RJ-11 Cable (Annex A) RJ-11 to RJ-45 Cable (Annex B) RJ-45 to RJ-45 Cable (Annex B) Antenna (for “n”... -
Page 9: Panel Explanation
Status Explanation Blinking The router is powered on and running normally. The router is powered off. (Activity) The phone connected to this port is off-hook. The phone connected to this port is on-hook. (for “V” model) Blinking A phone call comes. On (Green) The wireless access point is ready. - Page 10 (LAN1/2/3/4) Interface Description WLAN WLAN On - Press the button and release it within 2 seconds. When ON/OFF/WPS the wireless function is ready, the green LED will be on. WLAN Off - Press the button and release it within 2 seconds to turn off the WLAN function.
-
Page 11: Hardware Installation
This section will guide you to install the router through hardware connection and configure the router’s settings through web browser. Before starting to configure the router, you have to connect your devices correctly. Connect the DSL interface to the land line jack with a DSL line cable. Connect one port of 4-port switch to your computer with a RJ-45 cable. -
Page 12: Wall-Mounted Installation
Vigor2762 wireless series has keyhole type mounting slots on the underside. A template is provided on the Vigor2762 packaging box to enable you to space the screws correctly on the wall. Place the template on the wall and drill the holes according to the recommended instruction. -
Page 13: Software Configuration
To access Internet, please finish basic configuration after completing the hardware installation. The Quick Start Wizard is designed for you to easily set up your router for Internet access. You can directly access the Quick Start Wizard via Web Configurator. Make sure your PC connects to the router correctly. - Page 14 Now, the Main Screen will pop up. Click Wizards>>Quick Start Wizard. Note The home page will change slightly in accordance with the router you have. The first screen of Quick Start Wizard is entering login password. After typing the password, please click Next.
- Page 15 On the next page as shown below, please select the WAN interface that you use. If DSL interface is used, please choose WAN1; if Ethernet interface is used, please choose WAN2; if 3G USB modem is used, please choose WAN3. Then click Next for next step.
- Page 16 After finished the above settings, simply click Next. Please manually enter the Username/Password provided by your ISP. Then click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet.
- Page 17 Choose WAN1 as WAN Interface and click the Next button; you will get the following page. Please type in the IP address/mask/gateway information originally provided by your ISP. Then click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown.
-
Page 18: Customer Service
If the router cannot work correctly after trying many efforts, please contact your dealer/DrayTek for further help right away. For any questions, please feel free to send e-mail to “support@draytek.com”. Web registration is preferred. You can register your Vigor router via http://www.draytek.com.
