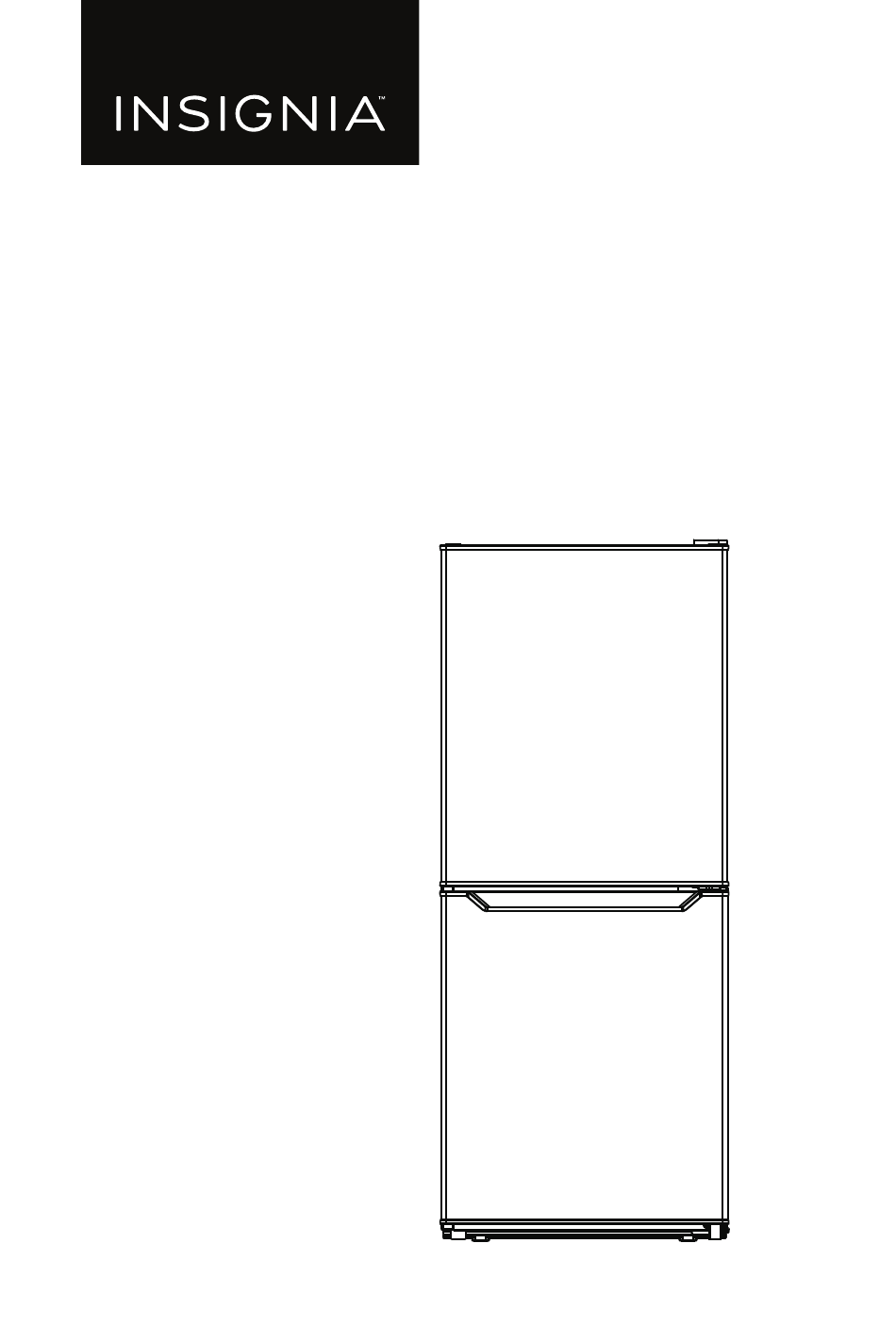

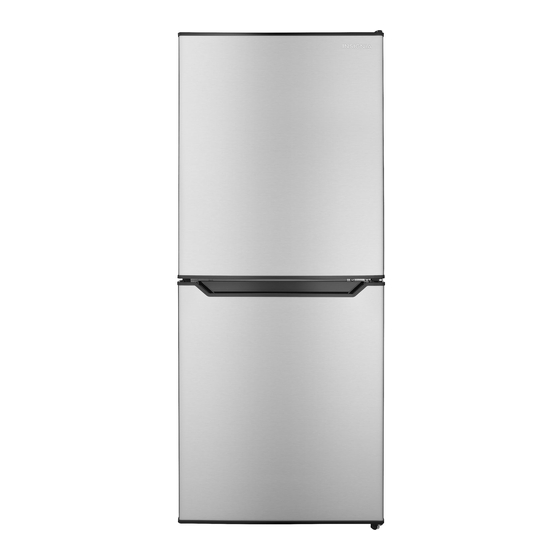

- Page 1 USER GUIDE 4.9 Cu. Ft. Bottom Mount Compact Fridge NS-CF49BMSS2/NS-CF49BMSS2-C Before using your new product, please read these instructions to prevent any damage.
-
Page 2: Table Of Contents
Specifications ............21 ONE-YEAR LIMITED WARRANTY - INSIGNIA ......22... -
Page 3: Important Safety Instructions
4.9 Cu. Ft. Bottom Mount Compact Fridge IMPORTANT SAFETY INSTRUCTIONS WARNING: To reduce the risk of fire, explosion, electric shock, or injury when using your refrigerator, follow these basic safety precautions: Read all instructions before using the refrigerator. WARNING--Risk or child entrapment. Never allow children to operate, play with, or crawl inside the refrigerator. - Page 4 Do not use an extension cord or ungrounded, two-prong adapters with this appliance. If the power cord is too short, have a qualified electrician install an outlet near the appliance. Use of an extension cord can negatively affect the unit’s performance. Firmly grasp the plug and pull it out of the outlet to disconnect this appliance.
-
Page 5: Grounding Requirement
4.9 Cu. Ft. Bottom Mount Compact Fridge CAUTION: To reduce the risk of injury when using your refrigerator, follow these basic safety precautions. • Do not clean glass shelves or covers with warm water when they are cold. Glass shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping or dropping. -
Page 6: Features
Features • 4.9 cu ft (.13 cu m) storage capacity provides space for all your essentials • Two shelves (one adjustable) help organize your items • Separate lower freezer compartment stores frozen snacks, entrees, and more • Freestanding design, reversible doors, and an adjustable foot allow for versatile placement options •... -
Page 7: Refrigerator Parts
4.9 Cu. Ft. Bottom Mount Compact Fridge Refrigerator parts Outside Top hinge Refrigerator door Freezer door handle Freezer door Leveling foot Inside Temperature control knob Door trays Shelf Vegetable crisper Freezer drawers Leveling foot www.insigniaproducts.com... -
Page 8: Installing Your Refrigerator
Installing your refrigerator Before using your refrigerator • Remove the exterior and interior packaging. • Wash the inside with a damp, warm cloth and a baking soda solution (two tablespoons in a quart of water), then wipe dry with a dry cloth. Do this periodically to keep your refrigerator looking new. -
Page 9: Providing Correct Ventilation
4.9 Cu. Ft. Bottom Mount Compact Fridge Providing correct ventilation Allow at least 3.9 in. (10 cm) between the left and right sides of your refrigerator and surrounding walls, at least 3.9 in. (10 cm) between the back of your refrigerator and the surrounding wall, and 11.8 in. -
Page 10: Connecting Power
Connecting power Check your local power source. Your refrigerator requires a 115 V, 60 Hz power supply. Use a receptacle that accepts the grounding prong. The power cord is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from your refrigerator. -
Page 11: Reversing The Door
4.9 Cu. Ft. Bottom Mount Compact Fridge Reversing the door CAUTION: If you lay your refrigerator on its back or side for any length of time, wait for six hours after you stand it up again before you plug it in. Otherwise, you may damage internal components. - Page 12 Remove the center hinge assembly from the center right side of your refrigerator and the screw hole caps from the center left side of your refrigerator, then remove the freezer door and set it aside. Center hinge assembly Screw Screws hole caps Remove the bottom hinge assembly from the bottom right side of your refrigerator and the adjustable foot from the bottom left side of your...
- Page 13 4.9 Cu. Ft. Bottom Mount Compact Fridge Remove the door stopper from the bottom right side of the freezer door and install it on the bottom left side of the freezer door. Freezer door Door stopper Put the freezer door on the bottom hinge and tape it into place temporarily. Install the center hinge assembly on the center left side of your refrigerator and the screw hole caps on the center right side of your refrigerator.
-
Page 14: Leveling Your Refrigerator
Place the refrigerator door on the middle hinge and tape it into place, then install the upper hinge and hinge cover on the upper left side of the refrigerator, and the screw hole cover on the upper right side of the refrigerator. -
Page 15: Using Your Refrigerator
4.9 Cu. Ft. Bottom Mount Compact Fridge Using your refrigerator Turning on your refrigerator for the first time CAUTIONS: • If you run your refrigerator below the coldest temperature (if the ambient temperature is below 50° F [10° C]), it may not operate consistently. For example, the freezer temperature may become too warm and the contents may defrost. -
Page 16: Adjusting The Shelf
Adjusting the shelf Your refrigerator has one adjustable shelf. Open the refrigerator or freezer compartment door all the way. Lift the back of the shelf, then pull it out. To reinstall the shelf, align the shelf above the shelf rails with the back of the shelf tilted up. -
Page 17: Removing The Crisper
4.9 Cu. Ft. Bottom Mount Compact Fridge Removing the crisper Note: You can remove the freezer drawer in the same way that you remove the crisper drawer. The crisper is designed to store fruits and vegetables. Putting fruits and vegetables inside the crisper helps avoid losing moisture and prevents flavor from getting into other foods. -
Page 18: Defrosting Your Refrigerator
Make sure that you keep the door gaskets (seals) clean so that the door seals tightly. This helps your refrigerator run efficiently. CAUTION: Make sure that the door gaskets are completely dry before you plug your refrigerator into the power outlet. Dry all surfaces and removable parts before putting them back into place. -
Page 19: Troubleshooting
4.9 Cu. Ft. Bottom Mount Compact Fridge • Wrap foods correctly and wipe containers dry before placing them in your refrigerator. This cuts down on frost build-up inside your refrigerator. • Organize and label food to reduce door openings and extended searches. •... - Page 20 PROBLEM SOLUTION A layer of frost occurs in • If the freezer is opened frequently or kept open too one of the long, a layer of frost may occur on the compartment’s compartments. interior walls. • Make sure that the air outlets are not blocked by food.
-
Page 21: Specifications
4.9 Cu. Ft. Bottom Mount Compact Fridge PROBLEM SOLUTION Water condenses on the • Condensation on the exterior surface and door seal is outside of my normal when the room humidity is high. refrigerator. • When you open the door, warm, moist outside air meets the cold dry air inside your refrigerator. -
Page 22: One-Year Limited Warranty - Insignia
Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. - Page 23 • Damage due to incorrect operation or maintenance • Connection to an incorrect voltage or power supply • Attempted repair by any person not authorized by Insignia to service the Product • Products sold “as is” or “with all faults”...
- Page 24 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. V1 ENGLISH ©2021 Best Buy. All rights reserved.
