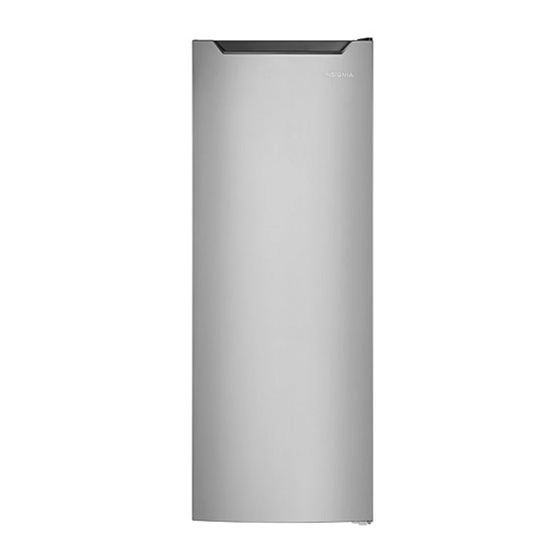

USER GUIDE 7 Cu. Ft. Convertible Upright Freezer NS-UZ70SS4/NS-UZ70WH4/NS-UZ70SS4-C/NS-UZ70WH4-C Before using your new product, please read these instructions to prevent any damage.
ONE-YEAR LIMITED WARRANTY ..............18 Introduction Congratulations on your purchase of a high-quality Insignia product. Your NS-UZ70SS4, NS-UZ70WH4, NS-UZ70SS4-C, or NS-UZ70WH4-C represents the state of the art in upright freezer design and is designed for reliable and trouble-free performance.
7 Cu. Ft. Convertible Upright Freezer IMPORTANT SAFEGUARDS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your freezer. This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your freezer.
WARNING Electric Shock Hazard Failure to follow these instructions can result in electric shock, fire, or death. 1 WARNING–Keep ventilation openings, in both your freezer and the built-in structure, clear of obstruction. 2 WARNING–Do not touch the interior of your freezer with wet hands. This could result in frostbite. 3 WARNING–Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
7 Cu. Ft. Convertible Upright Freezer Features Package contents • 7 Cu. Ft. Convertible Upright Freezer • Left-Side Hinge Component (for reversing the door) • User Guide Dimensions 56 1/8 in. (142.5 cm) www.insigniaproducts.com...
7 Cu. Ft. Convertible Upright Freezer Interior Temperature control Glass shelves Crisper drawer Leveling feet Setting up your freezer CAUTION: • This freezer is heavy (94.8 lbs. (43 kg)). We recommend that two people be used to move it. • Before connecting this freezer to a power source, let it stand for approximately six hours to reduce the possibility of a malfunction in the cooling system.
Providing correct ventilation Allow at least 2 in. (5 cm) between the left and right sides and top of your freezer and surrounding walls and at least 5 in. (12.7 cm) between the back of your freezer and the back wall. 2 in.
7 Cu. Ft. Convertible Upright Freezer Providing the correct power source Check your local power source. Your freezer requires a 115V, 60Hz power supply. WARNINGS: Make sure that: • The power outlet accepts a 3-prong grounding plug. The third prong on the power cord plug grounds your freezer to minimize the possibility of electric shock.
Reversing the freezer door CAUTION: If you lay your freezer on its back or side for any length of time, wait for six hours after you stand it up again before you plug it in. Otherwise, you may damage internal components. You will need the following tools to reverse the freezer door: Tool B: Flat head screwdriver Tool A: Phillips head screwdriver...
Page 11
7 Cu. Ft. Convertible Upright Freezer 6 Move the hole cover from the top left side of the door to the top right side. (Tool needed: B) 7 Remove the freezer door from the freezer by lifting it off the bottom hinge pin, then rest it on a pad to prevent scratching or damage.
Page 12
11 Remove the bottom hinge pin from the bottom hinge bracket, rotate the hinge bracket 180 degrees clockwise, and replace the bottom hinge pin into the bottom hinge bracket. (Tool needed: D) 12 Install the bottom hinge bracket on the left bottom of your freezer, then replace both leveling feet. Do not fully tighten the bottom hinge bracket at this time.
7 Cu. Ft. Convertible Upright Freezer Using your freezer CAUTIONS: • If you run your freezer in an ambient temperature below 50° F, it may not operate consistently, it may not operate consistently. For example, the freezer temperature may become too warm and the contents may defrost. •...
Maintaining your freezer Cleaning your freezer CAUTIONS: To prevent damage to the finish: • Do not use gasoline, benzine, thinner, or other similar solvents. • Do not use abrasive cleaners. • Do not use sharp objects because they are likely to scratch the surface. We recommend that you do the following every time you clean your freezer to keep it running odor-free and efficiently: 1 Unplug your freezer from the power outlet.
7 Cu. Ft. Convertible Upright Freezer Tips on saving energy • Locate your freezer in the coolest area of the room, away from heat producing appliances or heating ducts and out of direct sunlight. • Let hot foods cool to room temperature before placing them in your freezer. Overloading your freezer forces the compressor to run longer.
Troubleshooting CAUTION: Do not try to repair your freezer yourself. Doing so invalidates the warranty. PROBLEM SOLUTION • Make sure that your freezer is securely plugged into a working outlet. • Make sure that your power source has the correct voltage. Your freezer’s voltage My freezer does not work.
7 Cu. Ft. Convertible Upright Freezer PROBLEM SOLUTION The compressor runs longer if: • The room temperature is high. • You just added a large amount of food. Wait for the food to freeze, then check again. The compressor runs for a long •...
During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts.
