QUICK SETUP GUIDE
WiFi Connected

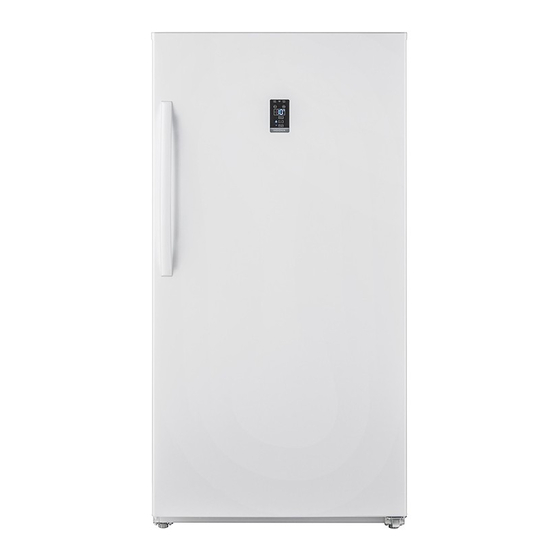

17 / 21 Cu.Ft.
Upright Freezer
NS-UZ17XWH7 / NSUZ21XWH7
PACKAGE CONTENTS
• 17 or 21 cubic foot upright freezer with WiFi connection
• Door handle, screws, and hex wrench
• Quick Setup Guide
FIND YOUR USER GUIDE ONLINE!
Go to www.insigniaproducts.com, enter your model in the search box,
then press ENTER. Next to Features, click Support & Downloads, then
next to User Guide, click the language you want.
SETTING UP YOUR FREEZER the freezer and the wall, and 11.8 inches (30 cm) between
the top of the freezer and the ceiling.
Before using your freezer
• If you locate the freezer next to a fixed wall, allow sufficient
• Remove the exterior and interior packing.
space on the hinge side for the door to swing open.
• Let the freezer stand upright for approximately two hours
• Locate the freezer away from direct sunlight and sources of
before connecting it to power.
heat, such as a stove, heater, or radiator. Direct sunlight may
• Wipe the inside.
affect the acrylic coating and heat sources may increase
• When moving your freezer, do not tilt it beyond 45° from
electrical consumption. Extremely cold temperatures may
upright.
also prevent the freezer from performing properly.
• Avoid locating the freezer in moist areas.
Finding a suitable location
• This freezer is designed to be free standing only, and should
Leveling your freezer
not be recessed or built-in.
• If the feet are not adjusted during installation, the doors
• Place your freezer on a floor that is strong enough to support
may not close or seal properly, causing cooling, frost, or
the freezer when it is fully loaded.
moisture problems.
• If your freezer is located too far from your WiFi router, the
• To level your freezer, rotate the leveling feet clockwise (to
signal may be too weak for a good connection. If that's the
raise) the freezer or counter-clockwise (to lower). The front
case, a WiFi range extender should improve connectivity.
of the freezer may be slightly higher than the back.
• Allow 7.9 inches (20 cm) of space between the sides of the
freezer and the walls, 3.9 inches (10 cm) between the back of
Before using your new product, please read these instructions to prevent any damage.
Installing the door handle USING YOUR FREEZER
1 Unplug the freezer.
1 Plug in your freezer. Wait for 30 minutes, then open the
2 Screw the extended-head screws into the door holes with
freezer door to determine if the freezer is working properly.
2 Press and hold the Lock button for three seconds, then + or
a Phillips screwdriver. Do not overtighten. The screw heads
– to set the temperature inside the freezer. A beep sounds
should extend above the surface of the door.
when the maximum or minimum temperatures are reached.
Using the Lock button
• To prevent accidental activation, the control panel
automatically locks after 30 seconds of inactivity. To use the
control panel, press and hold the Lock button for three
seconds.
Switching between Freezer and Refrigerator modes
This freezer has an advanced design feature that lets you
change it from a freezer to a refrigerator. You can only use the
control panel to switch modes. You cannot use the Insignia
Connect App to switch modes.
1 Press and hold the Lock button for three seconds.
2 Press and hold the Freezer/Fridge button for three seconds.
The panel beeps and the indicator changes to the new
mode.
Quick Freezing foods
• The quick freeze mode lowers the temperature below the
normal operating temperature to quickly freeze foods. You
3 Loosen the hex screws on the top and bottom of the
can only use the control panel to quick freeze foods. You
handle with the hex wrench (provided) so that you can fit
cannot use the Insignia Connect App.
the handle over the extended head screws in the door.
1 Press and hold Lock for three seconds.
2 Press the Quick Freeze button to enter quick freeze
mode. The blue snowflake turns on.
• The quick freeze mode turns off after three hours if the
temperature falls below -13° F (-25° C). If the temperature
does not fall below -13° F (-25° C), the quick freeze mode
turns off after 24 hours. You can press the button a second
time to exit quick freeze mode.
Switching between Fahrenheit and Celsius
Using the control panel on the freezer
Hex screws are here.
Extra hex screws are provided.
1 Press and hold Lock for three seconds to unlock the control
panel.
2 Press and hold + and – for three seconds to switch settings.
Using the App
• Tap Edit, then tap the slider next to Temperature Unit.
4 Place the door handle over the heads of the screws, then
tighten the hex screws.
INTRODUCING THE INSIGNIA CONNECT APP
Download the Insignia Connect app to use additional features such as
open-door and temperature alerts.
App download is optional – your freezer works normally without it!
CONNECTING YOUR FREEZER TO WIFI (OPTIONAL)
1 Make sure that your mobile device is connected to your preferred WiFi network.
2 Download and open the free Insignia Connect Device app from the App Store or Google Play.
(Apple: iOS 9 or later, Android: 6.0.1 Marshmallow or later)
3 Log in or sign up for a Best Buy or Insignia Connect Device account.
4 On your freezer, press and hold Lock to unlock the control panel.
5 Press and hold – and Lock at the same time until you hear a beep and see "0" on the control panel.
6 Press + once. "AP" is displayed.
7 In the app, tap Set Up Device, then follow the on-screen directions to complete setup.
Note: The control panel will display the temperature after ten seconds, but WiFi pairing mode will remain active.
• You may need to repeat steps 4-6 to put the freezer back into AP
mode if the app cannot find your freezer.
• Your freezer uses the 2.4GHz WiFi spectrum. If your router provides
both 2.4GHz and 5GHz, select the 2.4GHz band.
