- Page 1 H3TS USER MANUAL...
-
Page 3: Packing List

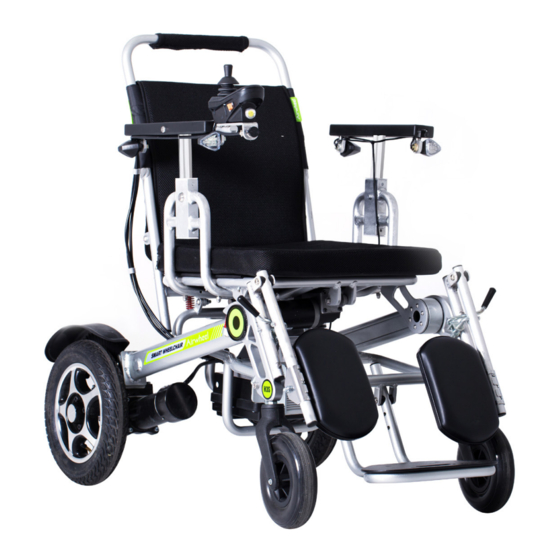

Diagram Backrest Controller Armrest Indicator light Rear light Frame Battery foot backer Clutch Motor Footrest Front wheel Rear wheel Packing list H3TS 1 unit Charger 1 piece Instruction 1 unit Accessory 1 set - 3 -... -
Page 4: Turn On The Main Power
User Instructions: 1.Take out the accessory box at the Tie rod of clutch rear of the wheelchair Open the wheelchair carton, take out the Electric wheelchair and place it gently on the floor, then mode take out the accessory box at the rear of the wheelchair (see Picture1-1) and remove the cardboard near the motor lock. - Page 5 Notes: If the wheelchair cannot be folded automatically due to a malfunction of the electrical parts, please use the given tools to remove the screws located at the rear of the wheelchair Screw (see Picture 4-1) to fold/unfold it manually. Please connect the charger to the wheelchair before connecting it to the AC power while charging.
-
Page 6: Installation And Usage
Installation and usage 1. Joystick installation Insert the joystick into the armrest slot, tighten the screws and fix the wiring with cable ties. 2. Armrest installation Unscrew the screw on the armrest bracket, insert the armrest, then tighten the screw. Screw Tip: Please turn off power to prevent the battery from over-discharging if riders don't use it. -
Page 7: Specifications
Specifications Main Technical Parameters Size 1100X620X980mm Item weight ~37kg Folding size 960X620X680mm Max. load 130kg Rotation radius 1.2m Frame Aluminum alloy 6061 Standard max. speed 6Km/h Climbing capacity about 8° Braking performance ≤ 1.5m Slope capacity about 8° Charging time about 5H Battery lithium 25.2V 524Wh... -
Page 8: Controller Instruction
Please turn on the power on the battery box first, In the power-off state, press the button over 2 unfold the wheelchair, and turn on the power switch seconds, the H3TS enters the extending/contracting on the controller to be ready to drive. mode. Release it to contract. -
Page 9: Speed Indicator
Stop folding / unfolding In the power-off state, press the button over In the extending/contracting mode, click the button to 2 seconds, the H3TS enters the extending/ stop extending or contracting. It enters the shutdown contracting mode. Release it to extend. -
Page 10: How To Use The Controller
Similarly, turn the rod to left or right, H3TS will turn left or right. Pushing more left or right, the faster the speed towards left or right. Release the rod to slow down and when fully released, the rod is reset and H3TS stops and is in the braking state. - Page 11 Pull the tie rod to the open position, then the brake of H3TS will not work, the weelchair can be pushed by people(no matter the H3TS is power on or power off, people can do it), when people pulf the tie rod to the close position, nobody can push the H3TS.
- Page 12 Armrest operation instructions Press button ① and hold，slide armrest ① forward and backward Press button ② and hold，draw up and down to an appropriate position, then release the ② button, fine tuning until the lifter is stuck. Foot backer instrustions Foot backer lever Retract foot backer: push the lever to the direction of vehicle tail, at the meantime push the foot backer to the direction of Figure 6-1;...
- Page 13 Indicator light/rear light instructions Turn on the power switch and the rear light is on all the time. When the Indicator light switch is turned to arrow ① , the left indicator turns on and blinks When the Indicator light switch is turned to arrow ② , the ①...
-
Page 14: Important Note
Important Note: You need lots of practice to grasp the skill before you ride H3TS safely. If you are not skilled, or fail to follow the user guide of this product, it may cause rider or others injury or property loss. Our company only takes the responsibility for product defects or damage, and we are NOT responsible for physical injury or property loss related with using products. - Page 15 Do not drive the H3TS after you drink, are exhausted or are not consciously clear to guarantee your safety. Please confirm that the operator of this H3TS is not suffered from any mental disease or other diseases that may attack during driving and result in the driver's incompetence of driving the vehicle safely.
- Page 16 When moving backward, pay attention to road conditions and pedestrians at a slow speed. Drive at a slow speed when getting out of door or elevator. It is not permitted to sit on the H3TS on escalator. Keep highly concentrated, fasten the safety belt and drive straightly at a slow speed when driving uphill or downhill.
-
Page 17: Battery Usage
When you release the operation handle during driving and the handle has returned to the central position, but the H3TS does not stop, please lock the electrical door as soon as possible and contact the nearest dealer. Attentions after Operation: If you are not going to use the H3TS for over 48 hours, Please turn off the power switch. - Page 18 Press the starting button and then the 5-scale charge volume display will be on or twinkles slowly, Push the rocker slowly forward until you hear the sound of electromagnetic brake. At this time, the H3TS should move forward. Similarly, push or pull the rocker backward/leftward/rightward, the H3TS will move backward/leftward/rightward.
-
Page 19: Assemble The Stand
Same process for assembling the other stand (see Picture 7-5). The use of H3TS stand (see Picture 7-4) Backpack (optional) The four corners' Velcro are tied to the frame respectively (see right Figure), to complete the installation, and it can also be removed. - Page 20 *Applicable to Android 4.3 or higher, iOS 7.0 or higher. APP Instructions 1. Turn on H3TS power button, and start App as well as Bluetooth. 2. Click the search button and do as the follows to connect (verify password is 11111111).
- Page 21 System is normal System is normal System is normal Power on and enter Click the headlight button When H3TS is powered off, click When the icon-H3TS the home page to turn on the headlight . the contracting button and it...
- Page 22 (only for battery chargers) position Protection class-II It's not suitable to be the seat of motor vehicle TYPE CE certification Product model Changzhou Airwheel Technology Co.,Ltd. Email:business@airwheel.net Tel: +86-519 88295800 Airwheel Europe S.A. MP: +32 494 26 71 78 - 22 -...
- Page 23 - 23 -...
