A6S
USER MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the A6S and is the answer not in the manual?

Questions and answers

Summary of Contents for Airwheel A6S

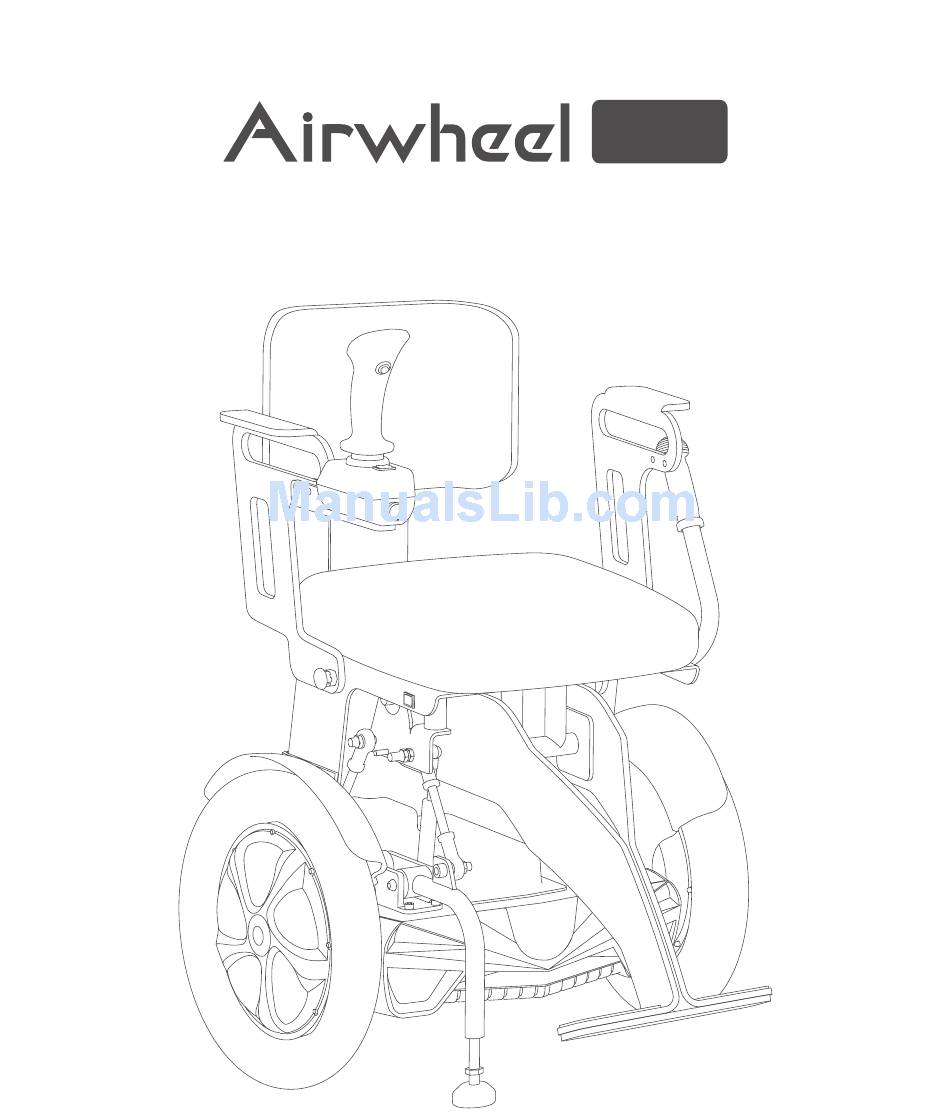

  • Page 1 USER MANUAL...
  • Page 2: Check Packing Contents

    Check Packing Contents Backrest components Body Instruction Tools Packing list Body 1pcs Instruction 1unit Adjustable operating arm 1pcs Tools 1unit Backrest components 1unit - 01 -...
  • Page 3 Diagram Backrest Electronic Handlebar controller brake Headlight switch Headlight Armrest Adjustable operating arm Cushion Index plunger Main power switch Frame Motor Main engine Foot rest Kickstand Charge Speed Display Battery Brake light Mileage - 02 -...
  • Page 4 Figure 2 Figure 5 Take A6S from the packing container.Align the screws on backrest hinge to the screw holes and body holes, tighten screws (see Figure 1) and stick saddle to frame(see Figure 2). Pull outward and rotate the index plunger (see Figure 3) and get the mount stuck and loosen the index plunger (see Figure 4); rotate the armrests to horizontal position(see Figure 5 - arrow).
  • Page 5: Specifications

    Adjust the kickstand height Adjust the kickstand height according to riders' actual usage Turn left Turn right to to loose making the kickstand and tires in the same level. Loosen tighten the kickstand nut (turn left to loose and right to tighten). Kickstand nut Rotate the kickstand up and down to the right position and tighten the nut (see Figure 9).
  • Page 6 Electronic brake: during riding, you can long press the electronic brake switch to decelerate and brake. When A6S decelerates or brakes, please release the electronic brake switch. Electronic...
  • Page 7 Important Note: You need lots of practice to grasp the skill before you ride A6S safely. If you are not skilled, or fail to follow the user guide of this product, it may cause rider or others injury or property loss. Our company only takes the responsibility for product defects or damage, and we are NOT responsible for physical injury or property loss related with using products.
  • Page 8 Do not frequently turn on or turn off the power switch. Do not lend A6S to anyone who is not familiar with or has never used this vehicle. Do not let children play with the power switch or handlebar controller.
  • Page 9 Foldable Adjustable Index plunger operating arm Figure Screw Index plunger Figure Figure Figure Loosen the set setscrew (see Figure 11) to remove the adjustable operating arm from the body. Pull outward and rotate the index plunger (see Figure 12) and get the mount stuck and loosen the index plunger (see Figure 13);...
  • Page 10: Download App

    Scan QR code to download *Applicable to Android 4.3 or higher, iOS 7.0 or higher. APP Instructions 1. Turn on A6S power button, and start App and Bluetooth. 2. Click the search button and do as the follows to connect (verify password is 11111111).
