Summary of Contents for Airwheel H3S

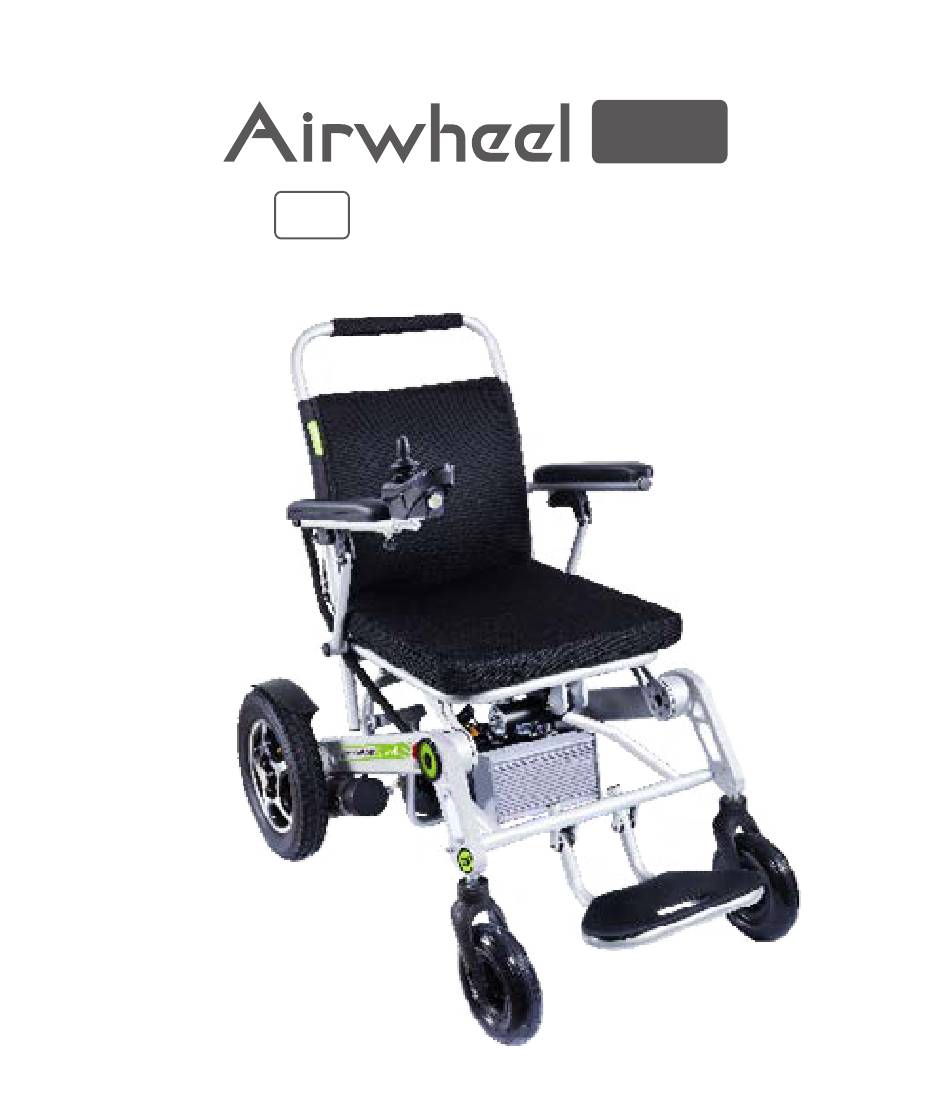

- Page 1 USER MANUAL...
- Page 3 Diagram Controller Backrest Liftable armrest Frame Battery Clutch Footrest Motor Front wheel Rear wheel Packing list 1 unit Charger 1 piece Instruction 1 unit - 01 -...
-
Page 4: Product Introduction
The reducer with dual back drivers is used to ensure the stability and reliability of driving. Advanced controller, easy operation system. Seat design complying with Human Engineering provide user with enough coziness. The whole H3S could be folded and the pedals could be dismantled, easy for package, delivery and storage in household. Installation and usage 1.Controller installation... -
Page 5: Specifications
Specifications Main Technical Parameters Size 1100X620X980mm Item weight ~33kg 890X620X400mm （controller size not Folding size Max. load 130kg included） A l u m i n u m a l l o y Rotation radius 1.2m Frame 6061 about 8 ° Standard max. -
Page 6: Controller Instruction
Guidance Horn Button Power on/off Press the button the buzzer will buzz; Release the In the power-off state, the H3S is not folded button, the buzzer stop buzzing. completely, click the switch to enter the ready mode. In the ready mode, remote control mode, riding mode and pushing mode, click the switch to enter the power-off state. - Page 7 2-scale light is on, it is advisable to charge the Press the higher speed once and the speed will be H3S, which is better for the battery duration.When only increased by one level. 1-scale light is on, it warns that battery is under low charge condition.
-
Page 8: How To Use The Controller
After turn on the switch button, push the rod forward vertically and H3S moves forward. More forward, the faster the speed. Release the rod to slow down and when fully released, the rod is reset and H3S stops and is in the braking state. Pull the rod backward, H3S moves backwards, more backward, the faster the speed to backward.Release the rod to slow down... -
Page 9: Important Note
Important Note: You need lots of practice to grasp the skill before you ride H3S safely. If you are not skilled, or fail to follow the user guide of this product, it may cause rider or others injury or property loss. Our company only takes the responsibility for product defects or damage, and we are NOT responsible for physical injury or property loss related with using products. -
Page 10: Battery Usage
Do not frequently lock or unlock the electrical door. Do not frequently start or stop the H3S. Do not lend your H3S to anyone who is not familiar with or has never used this vehicle. Do not fet children paly with electrical door lock or operational handle. - Page 11 H3S is braking steadily. Pay attention to surrounding conditions when moving backward. Slowly pull the rocker backward and the H3S will move backward. Airwheel reserves the right of final interpretation of all the terms and conditions of this User Manual. - 09 -...
- Page 12 Notes on folding armrest manually ① ② When folding upward the armrest manually When unfolding downward the armrest (see step ① ), please be careful and do manually, push the support rod downward (see step ② ) to make it easier to unfold. not overexert or exceed the limit.
- Page 13 Operate tie rod of clutch Pull the tie rod to the open position, then the brake of H3S will not work, the weelchair can be pushed by people(no matter the H3S is power on or power off, people can do it), when people pulf the tie rod to the close position, nobody can push the H3S.
-
Page 14: App Instructions
*Applicable to Android 4.3 or higher, iOS 7.0 or higher. APP Instructions 1. Turn on H3S power button, and start App as well as Bluetooth. 2. Click the search button and do as the follows to connect (verify password is 11111111). - Page 15 APP remote control operation (optional) km/h km/h km/h 10.0 forward forward remote left right left right control Current mileage backward backward System is normal Click the main interface Click the button in the Move the button to operate Slide the control speed button to open the sidebar to open the remote...
- Page 16 Please be careful when going downhill in the neutral position It’s not suitable to be the seat of motor vehicle TYPE Product model Changzhou Airwheel Technology Co.,Ltd. Email:business@airwheel.net Tel: +86-519 88295800 Airwheel Europe S.A. MP: +32 494 26 71 78...
