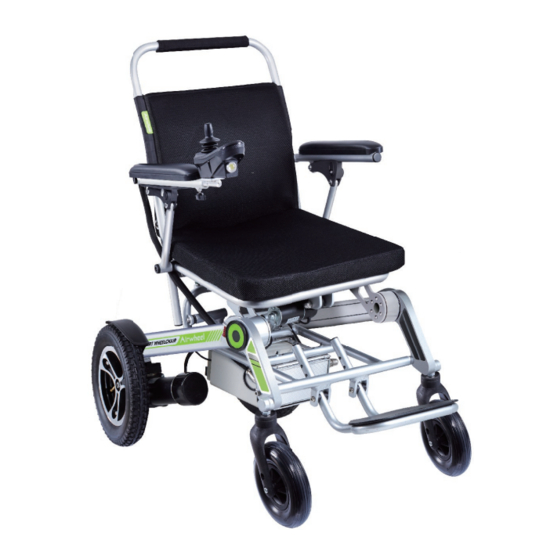

Airwheel H3T User Manual

Hide thumbs

Advertisement

Table of Contents

H3T
USER MANUAL
EN
- 1 -
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H3T and is the answer not in the manual?

Questions and answers

Related Manuals for Airwheel H3T

Summary of Contents for Airwheel H3T

  • Page 1 USER MANUAL - 1 - - 1 -...

  • Page 2: Packing List

    Diagram Controller Backpack (optional) Armrest Backrest Handrail button Battery Frame Footrest Clutch Front wheel Motor Rear wheel Rear foot (optional) Packing list 1 unit Charger 1 piece Instruction 1 unit Accessory 1 set - 2 -...

  • Page 3: Turn On The Main Power

    User Instructions: 1.Take out the accessory box at the Tie rod of rear of the wheelchair clutch Electric mode Open the wheelchair carton, take out the wheelchair and place it gently on the fl oor, then take out the accessory box at the rear of the wheelchair (see Picture1-1) and remove the cardboard near the motor lock.

  • Page 4: Installation And Usage

    4.Unfold the wheelchair ④ Power Switch Press and hold the up/extension button 1 on the controller for 3 seconds in the off state (as shown in Figure 4-1). When the controller panel lights up. Release the button when the “Drip” sound appears, ②...

  • Page 5: Main Power Switch

    2.Main power switch When the indicator is on, H3T is powered on, and when it's off,H3T is powered off. Tip: Please turn off power to prevent the battery from over-discharging if riders don’t use it. 3.Battery charging instructions Please connect the charger to the wheelchair before connecting it to...

  • Page 6: Specifications

    Specifications Main Technical Parameters ~29.6kg（without battery） Size 1076X620X987mm Item weight 842X620X420mm Folding size Max. load 130kg （ ） controller size not included Rotation radius 1.2m Frame Aluminum alloy 6061 Standard max. speed 6Km/h Climbing capacity about 9° Braking performance ≤1.5m Slope capacity about 9°...

  • Page 7: Controller Instruction

    In the power-off state, press the button over 2 seconds, and turn on the power switch on the controller to be ready the H3T enters the extending/contracting mode. Release it to drive. to contract.

  • Page 8: Speed Indicator

    Stop folding / unfolding In the power-off state, press the button over 2 seconds, In the extending/contracting mode, click the button to stop the H3T enters the extending/contracting mode. extending or contracting. It enters the shutdown state. Release it to extend.
  • Page 9 After turn on the switch button, push the rod forward vertically and H3T moves forward. More forward, the faster the speed. Release the rod to slow down and when fully released, the rod is reset and H3T stops and is in the braking state. Pull the rod backward, H3T moves backwards, more backward, the faster the speed to backward.Release the rod to slow down and when...
  • Page 10 Pull the tie rod to the open position, then the brake of H3T will not work, the weelchair can be pushed by people(no matter the H3T is power on or power off, people can do it), when people pulf the tie rod to the close position, nobody can push the H3T.
  • Page 11 Rear support leg (optional) vertical tube Rear support leg button Rear support leg rear support Install the legs: Press down on the rear leg button and hold it (Figure 8-1), insert the leg into the riser (Figure 8-2), and release the rear leg button When the rear leg hole is aligned with the vertical tube hole.
  • Page 12 Important Note: You need lots of practice to grasp the skill before you ride H3T safely. If you are not skilled, or fail to follow the user guide of this product, it may cause rider or others injury or property loss. Our company only takes the responsibility for product defects or damage, and we are NOT responsible for physical injury or property loss related with using products.
  • Page 13 Do not drive the H3T after you drink, are exhausted or are not consciously clear to guarantee your safety. Please confirm that the operator of this H3T is not suffered from any mental disease or other diseases that may attack during driving and result in the driver's incompetence of driving the vehicle safely.
  • Page 14 H3T is not intended to be used for moving or loading cargos. The operator should sit on the seat and grip the handle for operation. Do not drive in a zigzag manner, take a sudden turn at high speed or incline your body to prevent H3T inclination to one side.

  • Page 15: Battery Usage

    When you release the operation handle during driving and the handle has returned to the central position, but the H3T does not stop, please lock the electrical door as soon as possible and contact the nearest dealer. Attentions after Operation: If you are not going to use the H3T for over 48 hours, Please turn off the power switch.
  • Page 16 Press the starting button and then the 5-scale charge volume display will be on or twinkles slowly, Push the rocker slowly forward until you hear the sound of electromagnetic brake. At this time, the H3T should move forward. Similarly, push or pull the rocker backward/leftward/rightward, the H3T will move backward/leftward/rightward.
  • Page 17 Handrail precautions Normal use state Handrail button Press and hold the armrest Reset the armrest down and button (see Figure 9-1) while complete the fi xing (see Figure pulling the armrest up 90° (see 9-3), which is normal use Figure 9-2) state.

  • Page 18: Bluetooth Remote Control

    Bluetooth remote control( if have this optional Joystick Indicator light @ (pairing) Power button C (gear-high) ① Upper side A (fold-extension) big button (horn) B (folding-shrinking) ② Lower side big D (gear-low) button (headlights) Remote control blutooth pairing 1.Put AAA battery into the handle, power on, The green light flashes once in an instant; 2.Let the remote control close to the wheelchair in 1 meter, Short press "Power button", The green light is always on, then press the “@”...
  • Page 19 3.After the pairing is successful, the green light flashes quickly. After a few seconds, turn on the wheelchair and enters the remote control mode. Now the remote control stops flashing, and it lights 0.5s and then goes off. How to use the blutooth remote control Push the joystick, it could control the wheelchair to run, stop and turn normally, and the remote control indicator light goes off, short press the “upper side big button”, the horn sounds, short press the “downside big button”, the headlights turn on;...
  • Page 20 *Applicable to Android 4.3 or higher, iOS 7.0 or higher. APP Instructions 1. Turn on H3T power button, and start App as well as Bluetooth. 2. Click the search button and do as the follows to connect (verify password is 11111111).
  • Page 21 System is normal System is normal System is normal Power on and enter the Click the headlight button to When H3T is powered off, click When the icon-H3T home page turn on the headlight . Click the contracting button and it...
