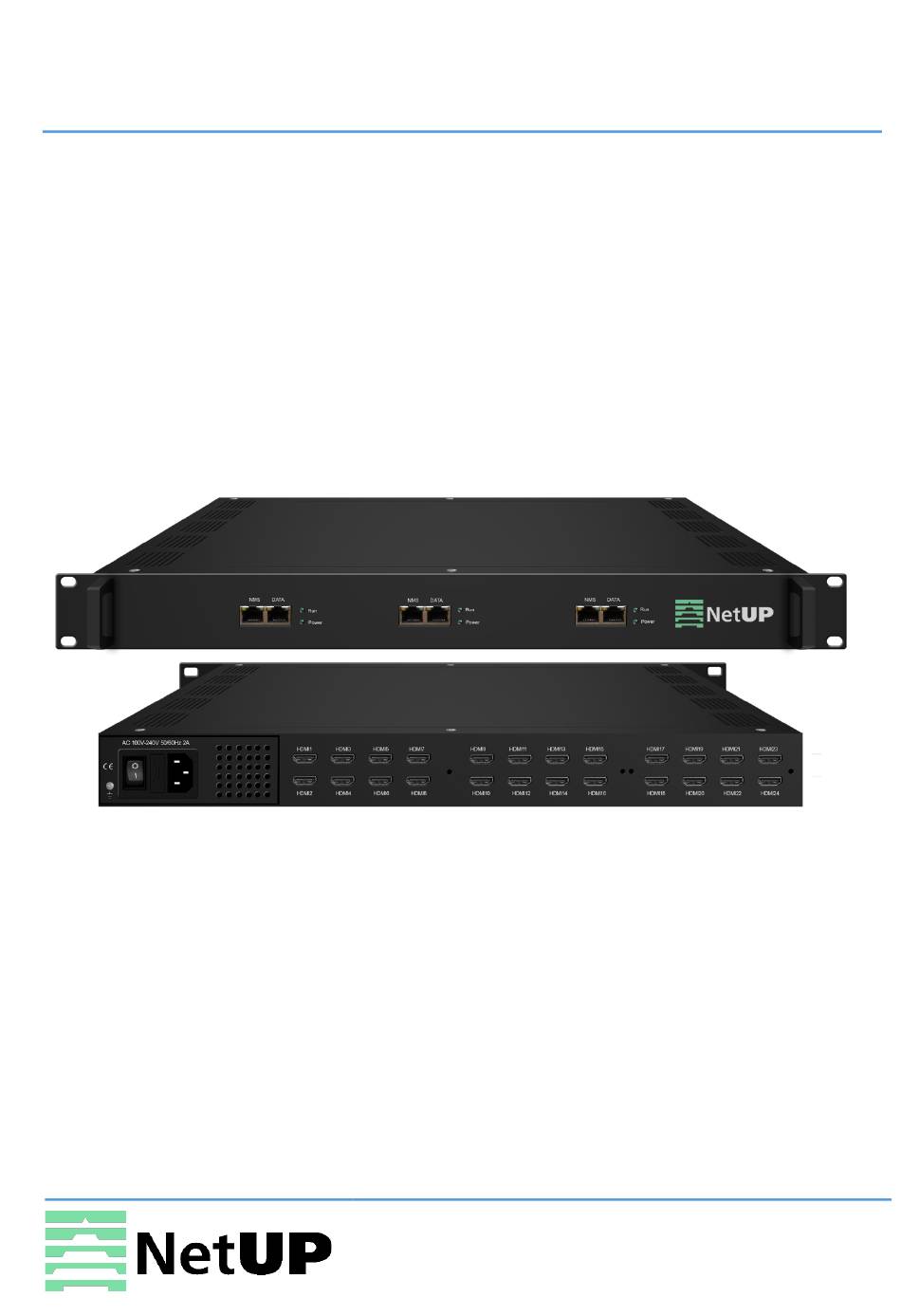

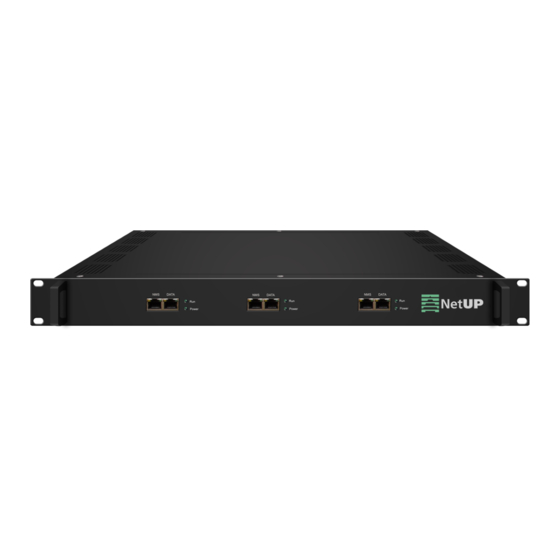

- Page 1 NetUP Streamer HDMI 8-24x v3 User manual 26.10.2020 1/7, Ulofa Palme str., Moscow, Russia +7 (495)510-1025 | info@netup.tv | http://netup.tv...
-
Page 2: Table Of Contents
NetUP Streamer HDMI 8-24x v3. User manual DIRECTORY Chapter 1 Product Introduction ................3 1.1 Outline ....................... 3 1.2 Main Features ....................3 1.3 Principle Chart (Each Encoder Module) ............3 1.4 Technical specification ................... 4 1.5 Order Information .................... 5 1.6 Appearance and Illustration ................ -
Page 3: Chapter 1 Product Introduction
NetUP Streamer HDMI 8-24x v3. User manual Chapter 1 Product Introduction 1.1 Outline Streamer HDMI 8-24 v3 is a professional HD/SD audio & video encoding device. It has 8/16/24 HDMI inputs for option. Every 8 HDMI ports share one encoder module with each module supporting 1MPTS and 8SPTS output. -
Page 4: Technical Specification
NetUP Streamer HDMI 8-24x v3. User manual 1.4 Technical specification Input 8/16/24 HDMI inputs 1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, input 1280×720_60P, 1280×720_50P, 720 x 576_50i,720 x 480_60i Resolution 1920×1080_30P, 1920×1080_25P, Output 1280×720_30P, 1280×720_25P, Video 720 x 576_25P, 720 x 480_30P Encoding MPEG-4 AVC/H.264... -
Page 5: Order Information
NetUP Streamer HDMI 8-24x v3. User manual 1.5 Order Information HDMI 8x v3 HDMI 16x v3 HDMI 24x v3 8 HDMI Inputs with 8 SPTS and 1 MPTS out (1 encoder board+1 NMS port+1 DATA Port) 16 HDMI Inputs with 16 SPTS or 2... -
Page 6: Chapter 2 Installation Guide
NetUP Streamer HDMI 8-24x v3. User manual Chapter 2 Installation Guide 2.1 Acquisition Check When users open the package of the device, it is necessary to check items according to packing list. Normally it should include the following items: ⚫ Streamer HDMI 8-24 v3 ⚫... - Page 7 NetUP Streamer HDMI 8-24x v3. User manual 2.2.2 Environment Requirement Item Requirement When user installs machine frame array in one Machine Hall machine hall, the distance between 2 rows of Space machine frames should be 1.2~1.5m and the distance against wall should be no less than 0.8m.
-
Page 8: Wire's Connection
NetUP Streamer HDMI 8-24x v3. User manual metal housing of device. ⚫ Grounding conductor must adopt copper conductor in order to reduce high frequency impedance, and the grounding wire must be as thick and short as possible. ⚫ Users should make sure the 2 ends of grounding wire well electric conducted and be antirust. -
Page 9: Signal Cable Connection
NetUP Streamer HDMI 8-24x v3. User manual 2.4 Signal Cable Connection The signal connections include the connection of input signal cable and the connection of output signal cable. The details are as follows: 2.4.1 HDMI input cable illustration: 2.4.2 Network Cable illustration (CAT5):... -
Page 10: Chapter 3 Web Nms Operation
NetUP Streamer HDMI 8-24x v3. User manual Chapter 3 WEB NMS Operation Streamer HDMI 8-24 v3 does not support front buttons and LCD, users can only control and set the configuration in computer by connecting the device to web NMS Port. User should ensure that the computer’s IP address is different from the Streamer’s IP address;... - Page 11 NetUP Streamer HDMI 8-24x v3. User manual Parameters →Encoder Encode Channel 1-8: From the menu on upper side of the web page, clicking “Enc CH 1-8”, it will display the each encode channel information of the program from the HDMI input port.
- Page 12 NetUP Streamer HDMI 8-24x v3. User manual Click this button to apply the modified parameters. Parameters →IP Stream Streamer HDMI 8-24 v3 supports TS to output in IP (1MPTS and 8 SPTS) format through the DATA port. When users click “IP Stream”, it will display the interface where to set IP out parameters. (For Data 1000M GE port) Parameters →OSD...
- Page 13 NetUP Streamer HDMI 8-24x v3. User manual Clicking “Account”, it will display the screen where to set the login account and password for the web NMS. Both the current username and password are “admin”. System → Configuration: Clicking “Configuration”, it will display the screen where to save/ restore/factory set/ backup/ load your configurations.
-
Page 14: Chapter 4 Troubleshooting
NetUP Streamer HDMI 8-24x v3. User manual Chapter 4 Troubleshooting Prevention Measure ⚫ Installing the device at the place in which environment temperature between 0 to 45 °C ⚫ Making sure good ventilation for the heat-sink on the rear panel and other heat-sink bores if necessary ⚫...
