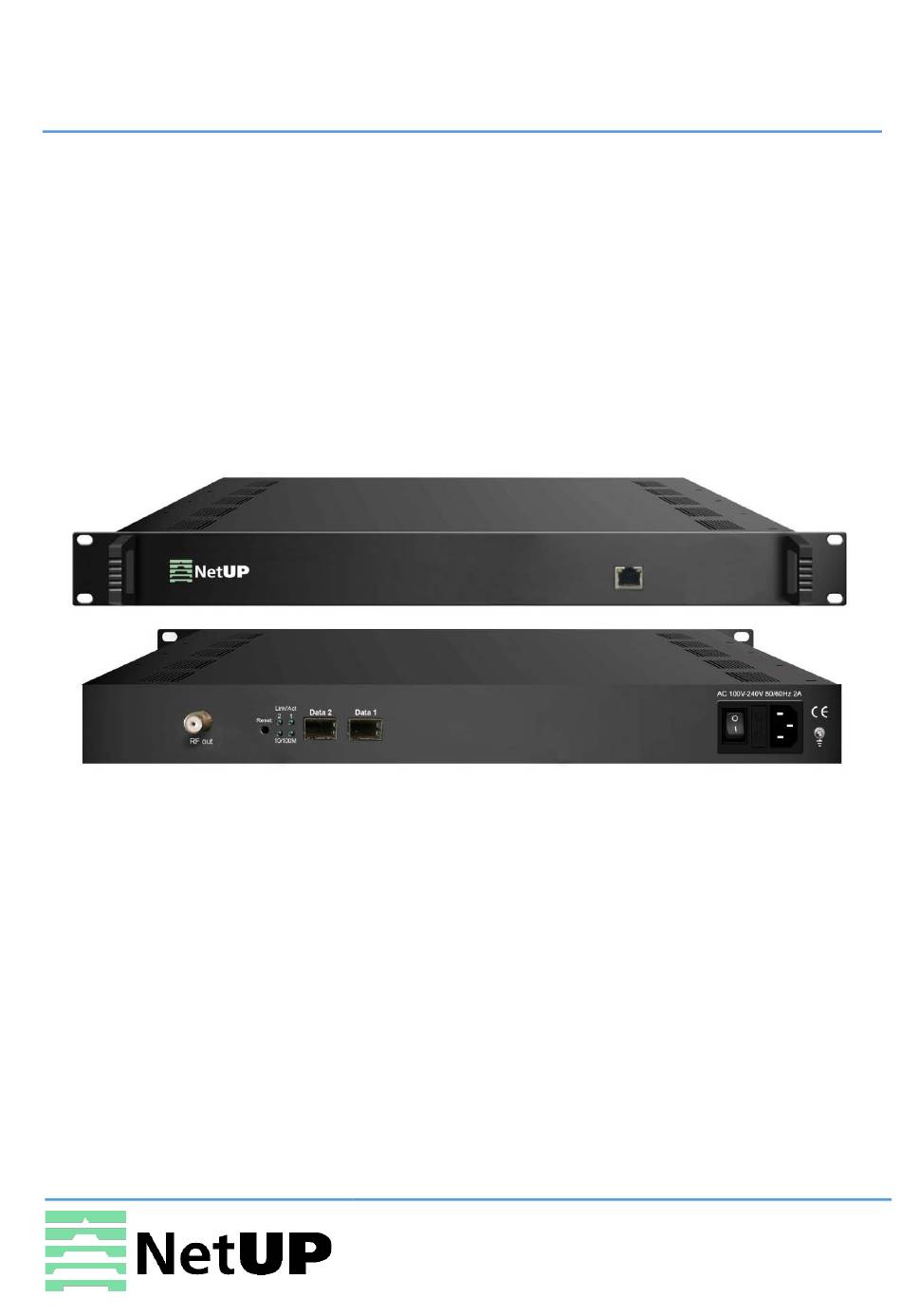

- Page 1 NetUP Streamer 16xC User manual 9 April 2019 1/7, Ulofa Palme str., Moscow, Russia +7 (495)510-1025 | info@netup.tv | http://netup.tv...
-
Page 2: Table Of Contents
NetUP Streamer 16xC. User manual Contents Introduction ................3 Appearance and illustration ....................3 Specifications ......................... 4 Installation guide ..............5 Device’s installation flow chart ....................5 Packing list check ........................5 Safety instructions ......................... 5 Environment requirement ..................... 6 Grounding requirement ...................... -
Page 3: Introduction
NetUP Streamer 16xC – is the latest generation Mux-scrambling-modulating all-in-one device developed by NetUP. It has 16 multiplexing channels, 16 scrambling channels and 16 QAM (DVB-C) modulating channels, and supports maximum 1024 IP input through the GE port and 16 non-adjacent carriers (50MHz~960MHz) output through the RF output interface. -
Page 4: Specifications
NetUP Streamer 16xC. User manual Specifications Input 512×2 IP input, 2 100/1000M Ethernet Port (SFP) Transport Protocol TS over UDP/RTP/RTSP, unicast and multicast, IGMP Input stream V2/V3 Transmission Rate Max 840Mbps for each GE input Input Channels 1024 Output Channels... -
Page 5: Installation Guide
NetUP Streamer 16xC. User manual Installation guide Device’s installation flow chart Connecting Packing list Installing grounding Connecting Setting Running check device wire and signal cable parameter device power cord Before installing and connecting the device, carefully read the environment and... -
Page 6: Environment Requirement
NetUP Streamer 16xC. User manual Environment requirement Item Requirement Room space When installing a rack in the room, make sure the distance between two rows of racks is 1.2~1.5m and the distance to the wall is at least 0.8m. Room floor Electric isolation. -
Page 7: Web Nms Operation
IP conflict The default IP address of NetUP Streamer 16xC is 192.168.0.136 or 10.0.0.103. Thus, set the computer’s IP address to 192.168.0.X or 10.0.0.X, where X can be from 0 to 255, except 136 or 103. -
Page 8: Summary → Status
NetUP Streamer 16xC. User manual Summary → Status After login, you will get the Status page which displays the current system status (Figure-2). Use this menu to navigate between the interface pages System information Figure-2 Parameters → TS Config Use the TS Config page to configure the TS output parameters and select one of the following tabs: Output TS, Stream Select, General, PID Bypass. - Page 9 NetUP Streamer 16xC. User manual Stream Select Select the Stream Select tab to select streams that should be sent to Mux out (Figure-4). Change the channel information (Figure-5) Output area Input area Operation area Parse programs Figure-4 Confirm changes Figure-5...
- Page 10 NetUP Streamer 16xC. User manual General Select the General tab to edit common parameter for output streams (Figure-6). Add an NIT descriptor Figure-6 Figure-7 PID Bypass Select the PID Bypass tab to edit the list of PIDs that should pass through (Figure-8).
-
Page 11: Parameters → Scrambler
NetUP Streamer 16xC. User manual Parameters → Scrambler Use the Scrambler page to manage scrambling options and select programs to scramble (Figure-9). Select a channel Green means normal state, while means communication error or no communication Check programs that should be... -
Page 12: Parameters → Ip Stream
NetUP Streamer 16xC. User manual Figure-11 Figure-12 Parameters → IP Stream NetUP Streamer 16xC supports TS IP output (16×MPTS) via the DATA port. Use the IP Stream page to set IP output parameters (Figure-13). Click to edit parameters (Figure-14) Figure-13... -
Page 13: System → Network
NetUP Streamer 16xC. User manual Figure-14 System → Network Use the Network page to edit networking parameters (Figure-15). Figure-15... -
Page 14: System → Password
NetUP Streamer 16xC. User manual System → Password Use the Password page to change current password and username (Figure-16). Figure-16 System → Configuration Use the Configuration page to save or restore system configuration, to revert to factory settings, to work with backups or to load configurations (Figure-17). -
Page 15: System → Log
NetUP Streamer 16xC. User manual System → Log Use the Log page to see system logs (Figure-19). Figure-19... -
Page 16: Troubleshooting
NetUP Streamer 16xC. User manual Troubleshooting Check the following before troubleshooting: • Whether the server room is well ventilated and hot air from the back panel of the device is effectively removed? • Does the supply voltage meet the power requirements of the device? •...
