NetUP Streamer HDMI 8x
User manual
1/7, Ulofa Palme str., Moscow, Russia
+7 (495)510-1025 |
info@netup.tv |
http://netup.tv
9 April 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Streamer HDMI 8x and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NetUP Streamer HDMI 8x

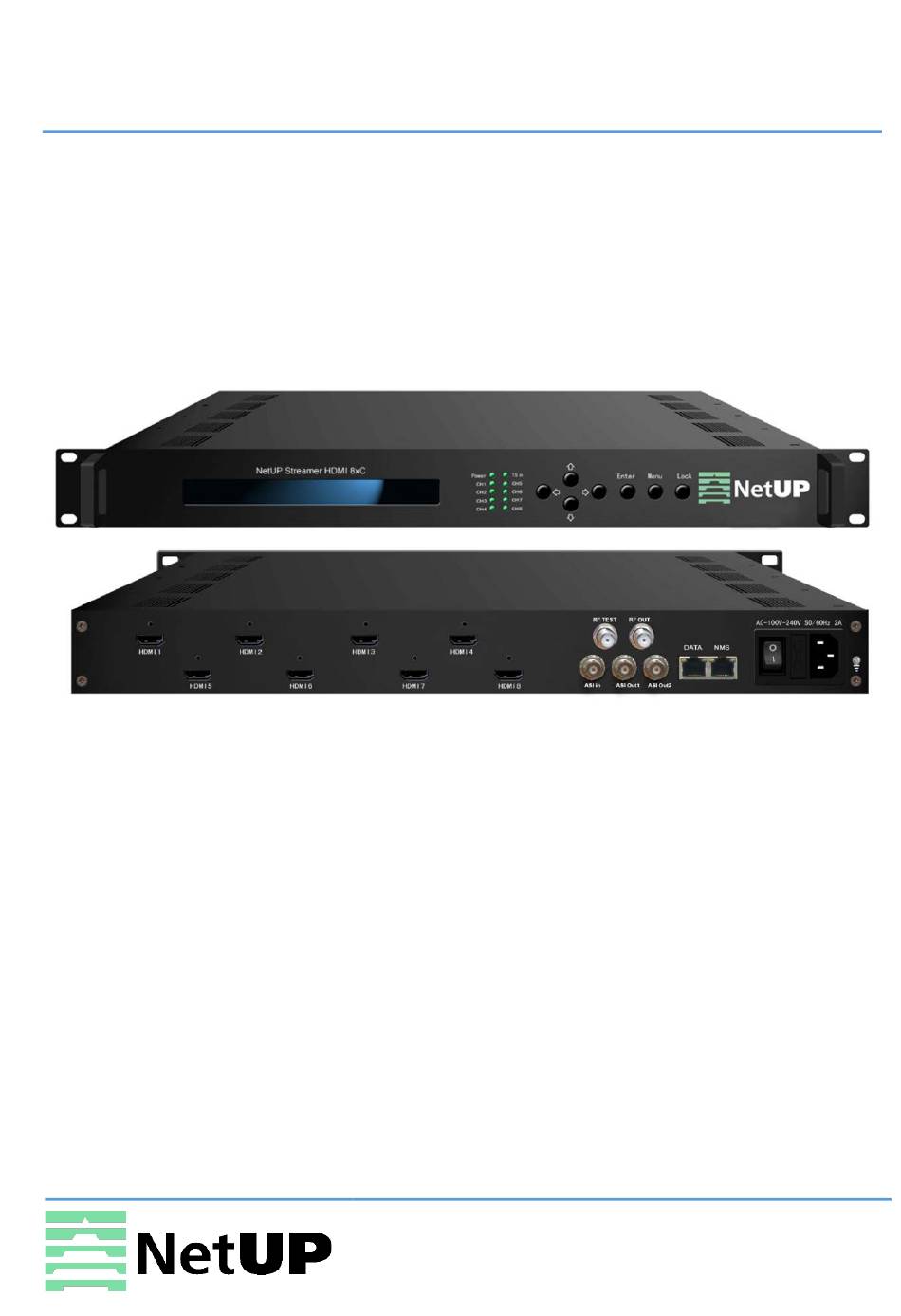

  • Page 1 NetUP Streamer HDMI 8x User manual 9 April 2019 1/7, Ulofa Palme str., Moscow, Russia +7 (495)510-1025 | info@netup.tv | http://netup.tv...
  • Page 2: Table Of Contents

    NetUP Streamer HDMI 8x. User manual Contents Introduction ................3 Appearance and illustration ....................3 Specifications ......................... 5 Installation guide ..............6 Device’s installation flow chart ....................6 Packing list check ........................6 Safety instructions ......................... 6 Environment requirement ..................... 7 Grounding requirement ......................
  • Page 3: Introduction

    NetUP Streamer HDMI 8x. User manual Introduction NetUP Streamer HDMI 8x is an all-in-one device, that integrates encoding, (MPEG-4/AVC H.264) multiplexing and modulation functions in a 1U case. It is capable of converting 8 HDMI signals and 1 ASI input to 2 DVB-T RF outputs in the frequency range of 30~999MHz. It is also equipped with 2 ASI ports and an IP port.
  • Page 4 NetUP Streamer HDMI 8x. User manual Rear panel: HDMI ports RF test port RF output port ASI input port ASI output ports DATA port (for IP signal output) NMS (Network management port) Power switch Fuse Power socket Grounding pole...
  • Page 5: Specifications

    NetUP Streamer HDMI 8x. User manual Specifications Input 8×HDMI and 1×ASI Encoding MPEG-4 AVC/H.264 Resolution 1920×1080_60p,1920×1080_50p 1920×1080_60i, 1920×1080_50i 1280×720_60p, 1280×720 _50p 720×576_50i, 720×480_60i Video Bitrate 0.8Mbps~19Mbps (each channel) Rate control VBR/CBR GOP Structure IBBP Advanced Pretreatment Deinterlacing, Noise reduction, Sharpening...
  • Page 6: Installation Guide

    NetUP Streamer HDMI 8x. User manual Installation guide Device’s installation flow chart Connecting Packing list Installing grounding Connecting Setting Running check device wire and signal cable parameter device power cord Before installing and connecting the device, carefully read the environment and...
  • Page 7: Environment Requirement

    NetUP Streamer HDMI 8x. User manual Environment requirement Item Requirement Room space When installing a rack in the room, make sure the distance between two rows of racks is 1.2~1.5m and the distance to the wall is at least 0.8m.
  • Page 8: Lcd Screen Feature Description

    NetUP Streamer HDMI 8x. User manual LCD screen feature description NetUP Streamer HDMI 8x has the LCD screen and keys on its front panel. You can use them to control and configure the device. Here is the description of keys’ functions:...
  • Page 9: System Param

    NetUP Streamer HDMI 8x. User manual 1 System Param The System Param menu contains eight submenus, one for each of the eight encoding channels: 1.1 Channel 1 ------------------ 1.8 Channel 8 Select a channel and press ENTER to get to the submenu:...
  • Page 10: Modulator

    NetUP Streamer HDMI 8x. User manual 2 Audio Param The Audio Param menu gives you access to the following settings: Item Valid values 2.1 Audio Bitrate range from 64 to 384 Kbps [1] 64 Kbps 2.2 Audio Format MPEG1 Layer II, LC-AAC and HE-AAC...
  • Page 11: Output Settings

    NetUP Streamer HDMI 8x. User manual 3 Output Settings The Output Settings menu contains nine submenus, eight items for each of the SPTS outputs and one item for the ASI output: Output 1 ------------------ Output 8 ASI Output Select one of the SPTS outputs and press ENTER to get access to the following settings:...
  • Page 12: Network Setting

    NetUP Streamer HDMI 8x. User manual 1) Press ENTER to open a list for editing. 2) Use UP / DOWN to select program that should be routed to the selected RF. 3) Use LEFT / RIGHT to select “Add” (add to list) or “Del” (remove from list).
  • Page 13: Configuration Setting

    NetUP Streamer HDMI 8x. User manual 6 Configuration Setting The Configuration Setting menu gives access to following settings: Save Config ►Yes Restore Configuration ►Yes Factory Set ►Yes Select the Factory Set item and press ENTER to reset to factory settings...
  • Page 14: Web Nms Operation

    NetUP Streamer HDMI 8x. User manual WEB NMS Operation In addition to the buttons on the front panel, you can use the web interface to control NetUP Streamer HDMI 8x. Login Connect a personal computer and the device with net cable, and use ping command to confirm they are on the same network segment.
  • Page 15: Status

    NetUP Streamer HDMI 8x. User manual Status After login, you will get the Status page which displays the current system status (Figure-2). Use this menu to navigate between the interface pages States of the HDMI inputs and the ASI input Output TS indicator.
  • Page 16: Encoder

    NetUP Streamer HDMI 8x. User manual Encoder Open the Encoder page to set coding parameters for each channel (Figure-3). Select a channel parameters See the channel’s input resolution, encoding status and bitrate Confirm changes Figure-3...
  • Page 17: Mux

    NetUP Streamer HDMI 8x. User manual Open the MUX page to set program multiplexing parameters (Figure-4). Parse the program list HDMI input programs Open a window to modify program information ASI input programs Operation Output area Input area area Select the output...
  • Page 18 NetUP Streamer HDMI 8x. User manual Program modification window Select a program and click on Edit to modify program information (Figure-5). Parameters that can be changed Confirm changes Figure-5...
  • Page 19: Modulator

    NetUP Streamer HDMI 8x. User manual Modulator Use the Modulator page (Figure-6) to configure the following parameters: Bandwidth 6 MHz, 7 MHz, 8 MHz Constellation QPSK, 16QAM, 64QAM 2K, 8K Guard Interval 1/4, 1/8, 1/16, 1/32 Code Rate 1/2, 2/3, 3/4, 5/6, 7/8 RF1-2 Frequency 30…960 MHz...
  • Page 20 NetUP Streamer HDMI 8x. User manual IP Out Settings Use the IP Out Settings tab to set up SPTS outputs (Figure-7). "Green" indicates that the output bitrate is normal. "Red" indicates that the output bitrate overflow Press the button to...
  • Page 21 NetUP Streamer HDMI 8x. User manual DATA IP Settings Use the DATA IP Settings tab to set network parameters (Figure-8). Confirm changes Figure-8 ASI Output Use the ASI Output tab to select TS output from ASI (Figure-9). Confirm changes Select the...
  • Page 22: Ts Config

    NetUP Streamer HDMI 8x. User manual TS Config Use the TS Config page contains the output TS, NIT and VCT settings for each of the output channels (Figure-10). Select the channel Add a program descriptor to NIT Network information table...
  • Page 23: System

    NetUP Streamer HDMI 8x. User manual Descriptor settings Confirm changes System Use the System page to save or restore the system configuration, return to the factory settings and load the configuration file (Figure-11). Figure-11...
  • Page 24: Network

    NetUP Streamer HDMI 8x. User manual Network Use the Network page to edit networking parameters (Figure-12). Confirm changes Figure-12 Password Use the Password page to change current password and username (Figure-13). Confirm changes Figure-13...
  • Page 25: Troubleshooting

    NetUP Streamer HDMI 8x. User manual Troubleshooting Check the following before troubleshooting: Whether the server room is well ventilated and hot air from the back panel of the device is • effectively removed? Does the supply voltage meet the power requirements of the device? •...
