Summary of Contents for NetUP Streamer HDMI 1x

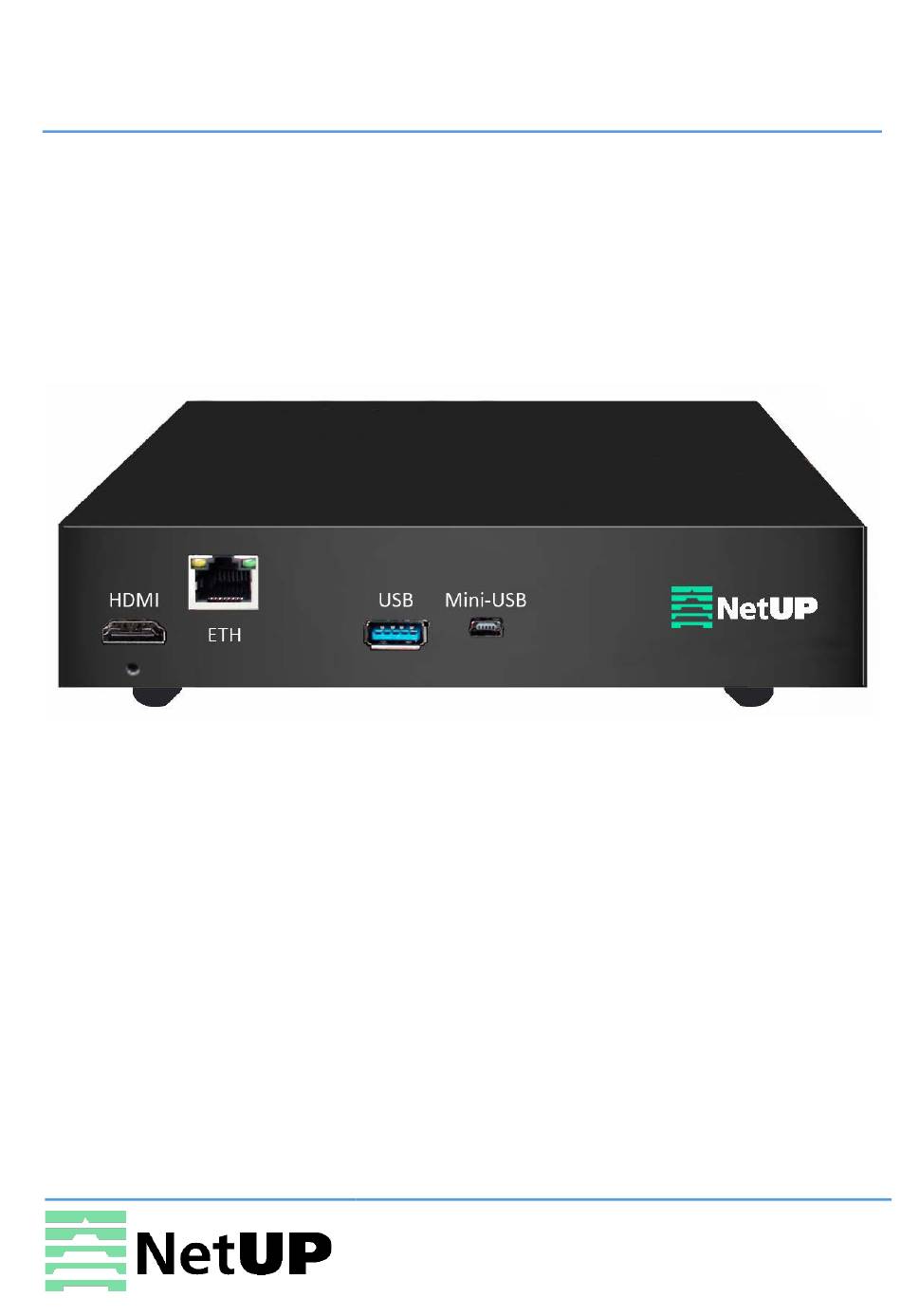

- Page 1 NetUP Streamer HDMI 1x User manual 20 March 2019 1/7, Ulofa Palme str., Moscow, Russia +7 (495)510-1025 | info@netup.tv | http://netup.tv...
-
Page 2: Table Of Contents
NetUP Streamer HDMI 1x. User manual Contents Introduction ................3 Specifications ......................... 3 Installation guide ..............4 Device’s installation flow chart ....................4 Packing list check ........................4 Safety instructions ......................... 4 Grounding requirement ......................5 WEB NMS Operation ............... 6 Login ............................ -
Page 3: Introduction
STB, PC, TV, etc., and broadcast a live stream through the Internet or LAN. The live stream then can be received on a PC, phone, tablet, etc. NetUP Streamer HDMI 1x lets one access an IP STB, PC or TV anywhere, whether in the same building or across the globe. -
Page 4: Installation Guide
• HDMI cable • Network cable Safety instructions NetUP Streamer HDMI 1x power supply voltage should be DC12V • Before installing and connecting the device make sure that the device was not damaged during delivery. • Install the device in an appropriate place. The device is designed to work in a clean and dry room. -
Page 5: Grounding Requirement
NetUP Streamer HDMI 1x. User manual Grounding requirement • Connect the ground wire to the grounding hardware on the device. Ground resistance should be no more than 1 Ω. Grounding is essential for device’s functionality, surge and electronic interference protection Keep proper contact with the metal housing of the device •... -
Page 6: Web Nms Operation
IP conflict The default IP address of NetUP Streamer HDMI 1x is 192.168.200.64. Thus, set the computer’s IP address to 192.168.200.X, where X can be from 0 to 255, except 64. Open a web browser, enter the device’s IP address in the browser address bar and press Enter. -
Page 7: Status Information
Figure-2 Param setting NetUP Streamer HDMI 1x supports up to three output streams simultaneously (different bitrate, resolution, protocol, etc.). Use the Param setting page to access the encoding and broadcasting settings of each of the three available output streams (Figure-3). -
Page 8: Save/Restore Config
NetUP Streamer HDMI 1x. User manual Save/Restore config Use the Save/Restore config page to save current settings or restore from saved ones or from factory settings. The encoder applies saved settings after each reboot, therefore discarding any unsaved changes (Figure-4). -
Page 9: System → Upgrade
NetUP Streamer HDMI 1x. User manual System → Upgrade Use the Upgrade page to upgrade device’s firmware (Figure-6). Figure-6 System → Usrinfo Use the Usrinfo page to change current password and username (Figure-7). Confirm changes Figure-7 System → Setting Use the Setting page to setup port and channel name for http output (CH1, CH2, CH3). -
Page 10: System → Network
NetUP Streamer HDMI 1x. User manual System → Network Use the Network page to setup device’s network adapter (Figure-8). Figure-8 System → RTMP Flash Player Use the RTMP Flash Player page to open the built-in RTMP player (Figure-9). Replace “localhost” with the IP address of the server, “my stream”... -
Page 11: Usage Examples
2. Make sure the source resolution is in the list of supported resolutions (see Specifications). 3. Connect NetUP Streamer HDMI 1x to a Wi-Fi router (make sure that the device’s IP address and router’s IP address are in the same network segment). -
Page 12: Set Up To Receive Video And Audio On Phones, Tablets Or Computers
NetUP Streamer HDMI 1x. User manual Set up to receive video and audio on phones, tablets or computers What software is required to receive a video stream from NetUP Stream HD 1x: Mobile devices 1 – web browser Protocol IP STB... - Page 13 NetUP Streamer HDMI 1x. User manual Open VLC Enter an settings address...
-
Page 14: Troubleshooting
NetUP Streamer HDMI 1x. User manual Troubleshooting Check the following before troubleshooting: Whether the server room is well ventilated and hot air from the back panel of the device is • effectively removed? Does the supply voltage meet the power requirements of the device? •...
