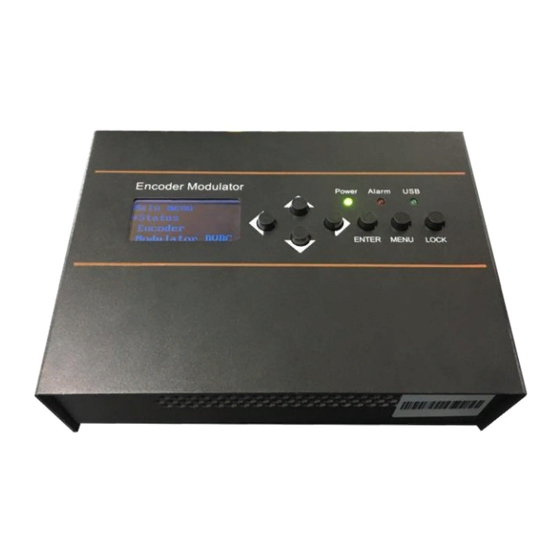

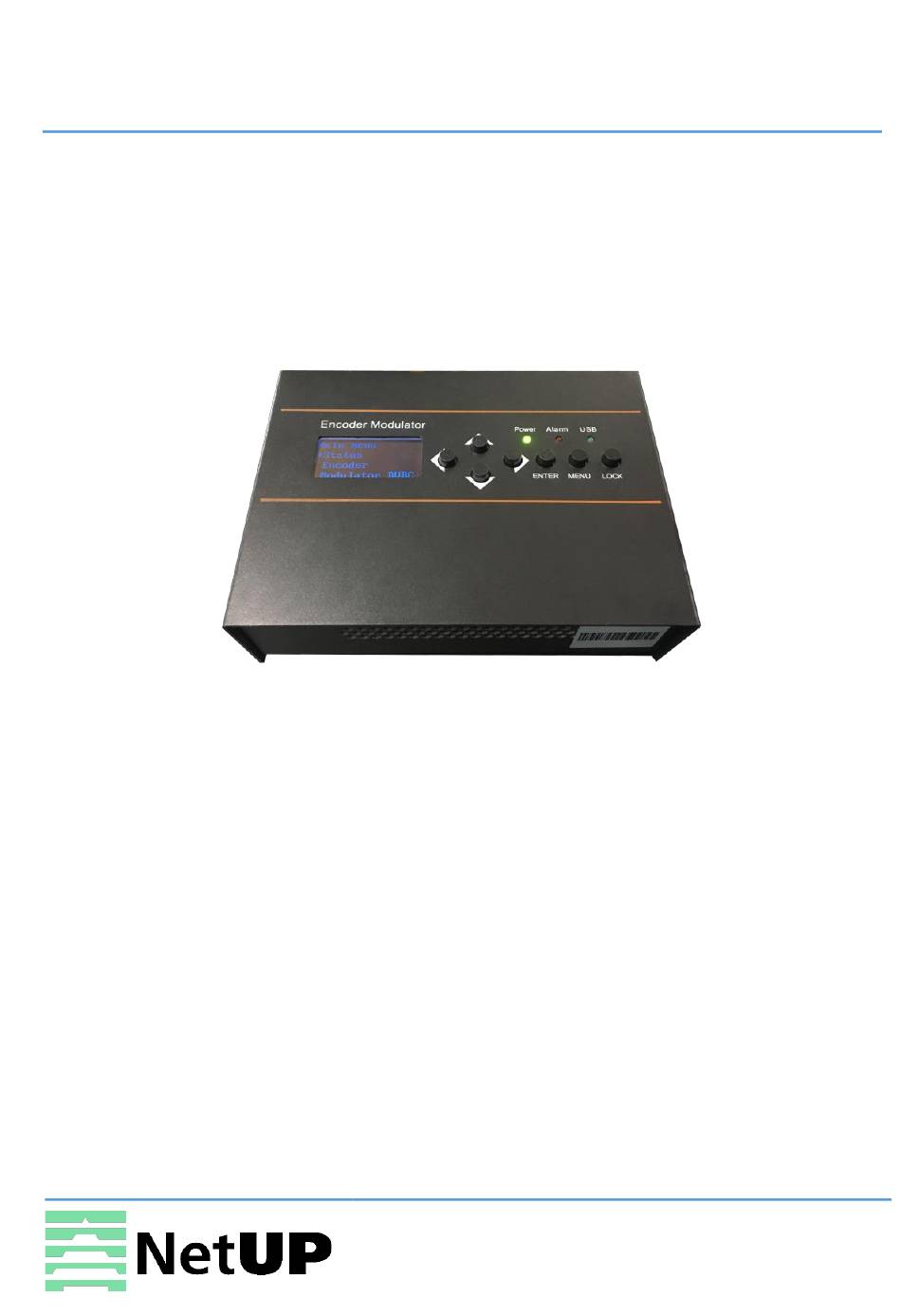

- Page 1 NetUP Streamer HEVC User manual 26.10.2020 1/7, Ulofa Palme str., Moscow, Russia +7 (495)510-1025 | info@netup.tv | http://netup.tv...
-
Page 2: Table Of Contents
NetUP Streamer HDMI 1x v2. User manual Directory CHAPTER 1 Product Introductions ................3 General Description ....................3 System Connection Chart ................... 3 Technical Specifications ..................... 4 CHAPTER 2 Safety Instruction and Installations ............6 Safety Instructions ..................... 6 Installations ....................... 7 Cascade Installation .................... -
Page 3: Chapter 1 Product Introductions
NetUP Streamer HDMI 1x v2. User manual CHAPTER 1 Product Introductions General Description Grounding: to connect the earth cable DC 12V: power input USB: USB Port for Video Record, Save and Playback HDMI: HDMI stream input supporting FHD signals RF in: RF Loop-through input (10 dB attenuation) RF out: RF output to distribute modulated signal (30-960 MHz, 71~91 dbµV) -
Page 4: Technical Specifications
NetUP Streamer HDMI 1x v2. User manual Technical Specifications Encoding Section HDMI Video Encoding HEVC/ H.265 , MPEG 4 AVC/H.264 Interface HDMI*1 Resolution 1920*1080_60P, 1920*1080_50P; 1920*1080_59.94P, 1920*1080_59.94i; 1920*1080_60i, 1920*1080_50i; 1280*720_60p, 1280*720_59.94 1280*720_50P Bit rate 1Mbps~15Mbps Audio Encoding MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2; AC3... - Page 5 NetUP Streamer HDMI 1x v2. User manual Code rate: 1/2, 2/3, 3/4, 5/6, 7/8 RF frequency: 100~900MHz, 1KHz step RF output level: -63~ -16dBm, 1dB step ATSC (optional) Standard ATSC A/53 ≥35dB RF frequency 100~900MHz, 1KHz step RF output level...
-
Page 6: Chapter 2 Safety Instruction And Installations
NetUP Streamer HDMI 1x v2. User manual CHAPTER 2 Safety Instruction and Installations Safety Instructions WARNING: Hot plug is not allowed since it may cause system halted. To prevent fire or electrical shock, do not expose the device to rain or moisture. -
Page 7: Installations
NetUP Streamer HDMI 1x v2. User manual Installations RISK OF damage to the unit Mechanically handling the unit may result in damage. Do not connect the unit to the power supply before or during assembly. Connect the unit as below instructed. -
Page 8: Chapter 3 Devices Operations And Management
NetUP Streamer HDMI 1x v2. User manual CHAPTER 3 Devices Operations and Management Device is controlled and managed through the key board and LCD display. LCD Display – It presents the selected menu and the parameter settings. The backlight in the display is on when the power is applied. - Page 9 NetUP Streamer HDMI 1x v2. User manual Initializing Enter Down Menu Lock Encoder modulator 192.168.0.xxx Main Menu Alarm Status Update time Video Video format Main Menu Encoder Video bitrate Encoder Video Rate Mode Profile Gop structure Gop size Color space...
- Page 10 NetUP Streamer HDMI 1x v2. User manual Main Menu IP Stream Enable IP Stream Enable IP Stream IP address IP address 224.2.2.2 IP Stream Port Port 3333 IP Stream Protocol Protocol UDP RTP/RTSP IP Stream Pkt length Pkt length Null Plct Filter...
- Page 11 NetUP Streamer HDMI 1x v2. User manual 7) RF Frequency: Adjust it at range of 100 to 900 MHz. Set it according your regional situation or inquire your local services. 8) Channel 1 Level: Adjust it at range of -20~ -5dBm.
-
Page 12: Chapter 4 Operations Of Record Ts And Play Ts Through Usb Disk
NetUP Streamer HDMI 1x v2. User manual Chapter 4 Operations of Record TS and Play TS through USB Disk Encoder modulator has the functions of: 1. USB Stature xxxMb is the total capacity of USB pen driver, xxMb is available capacity of this USB pen driver 2. -
Page 13: Chapter 5 Operations Of Web-Server
NetUP Streamer HDMI 1x v2. User manual Chapter 5 Operations of Web-server In addition to using front buttons to control the encoder modulator and USB device, users can also perform the same operation in an easier way with the web Brower in the PC (Personal Computer). - Page 14 NetUP Streamer HDMI 1x v2. User manual Select the Video format, bitrate, Profile and other details For configuring the Audio and program feature Figure-3 Parameters → TS Config: From the menu on left side of the webpage, clicking “TS Config”, it displays the interface where users can configure the parameters for the transport stream as prompt.
- Page 15 NetUP Streamer HDMI 1x v2. User manual Parameters → IP stream: From the menu on left side of the webpage, clicking “IP stream”, it displays the interface where users can configure current the IP stream parameters (Figure-6). Pls note: RTMP protocol only can be configuration in the webpage management...
- Page 16 NetUP Streamer HDMI 1x v2. User manual File Name: Users can enter this menu to edit name for the *.ts files to be recorded. For example, if users name it “Record- ”, it will give name to the saved *.ts files “Record-001.ts”, “Record-002.ts” “Record-00N.ts”.
- Page 17 NetUP Streamer HDMI 1x v2. User manual Figure-11 System → Firmware: Click “Firmware” from the menu it will display the screen. Here user can update the device by using the update file. Click “Browse” to find the path of the device update file for this device then click “Update” to update the device.
