- Page 1 TD310 Operating manual European catalogue number: EU connection: 620-2644 Version: 1.0 Issued: 18.06.2019...
-
Page 2: Table Of Contents
Qualified personnel.......................... 8 Description ............................ 9 Scope of delivery .......................... 9 Job description............................ 9 The product at a glance ........................ 10 The TD310............................ 10 Display elements .......................... 10 Operating elements .......................... 10 Connections............................ 10 Support stand ............................. 11 Operation............................ 12 Commissioning ........................... - Page 3 Table of contents Disposal............................. 20 Technical data........................... 21 Service ............................... 22 12.1 Online resources.......................... 22 12.2 Sales partners............................. 23 B-H86.0.04.DB201-1.0 3 / 24...
-
Page 4: Legal Address Of The Manufacturer
1 | Legal address of the manufacturer TD310 1 Legal address of the manufacturer VWR International bvba Researchpark Haasrode 2020 Geldenaaksebaan 464 B-3001 Leuven Phone: + 32 16 385011 http://be.vwr.com 4 / 24 B-H86.0.04.DB201-1.0... -
Page 5: About This Documentation
VWR guarantees that this product will remain free from material and production de- fects for a period of two (2) years from the time of delivery. If there is a defect, VWR shall decide on its own discretion whether to repair or replace the product free of charge or to provide the customer with a refund of the purchase price of the product, insofar as it is sent back during the warranty period. -
Page 6: Correctness Of Content
2 | About this documentation TD310 2.5 Correctness of content The contents of this document were checked for corrected and are subject to a con- tinuous correction and updating process. This does not rule out potential errors. In the event that errors are discovered or in case of suggestions for improvement, please in- form us immediately via the indicated contact information in order to help us make this document even more user-friendly. -
Page 7: Safety
TD310 Safety | 3 3 Safety 3.1 Explanation of safety symbols DANGER This symbol warns of imminent danger which can result in death, severe bodily injury, or severe property damage in case of non-observance. CAUTION This symbol warns of potential dangers or harmful situations which can cause damage to the device or to the environment in case of non-observance. -
Page 8: Intended Use
3 | Safety TD310 CAUTION Erratic behaviour! On suspicion that the product can no longer be operated without danger, it must be decommissioned and prevented from recommissioning with appropriate labelling. The safety of the user can be impaired by the device if, for example, if it shows visible damage, it no longer works as specified or if it was stored for an extended period of time under unsuitable conditions. -
Page 9: Description
TD310 Description | 4 4 Description 4.1 Scope of delivery Please check to ensure the completeness of the product after opening the package. You should find the following components: – Quick reference guide – Handheld measuring device, ready for operation, including batteries 4.2 Job description... -
Page 10: The Product At A Glance

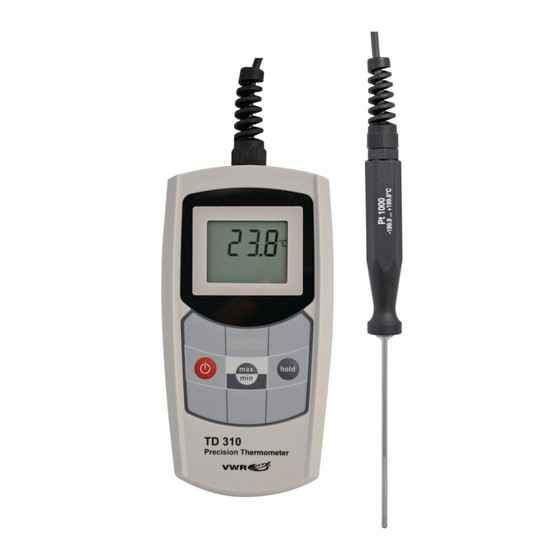

5 | The product at a glance TD310 5 The product at a glance 5.1 The TD310 TD310 5.2 Display elements Display Main display Measurement of the current temperature Auxiliary display Measurement of the temperature of min/max or for min/max/hold 5.3 Operating elements... -
Page 11: Support Stand
TD310 The product at a glance | 5 5.5 Support stand Description The stand is provided as a means to prop up or support the device in a stable surface, for hanging on the wall or for attachment to a belt. -
Page 12: Operation
6 | Operation TD310 6 Operation 6.1 Commissioning 6.1.1 Explanation Description The product is switched on with the On/Off button. It may be necessary to configure the product after switching on. See Configuration [} p. 12]. Prerequisite – Sufficiently full batteries are inserted in the product. -
Page 13: Configuring Parameters Of The Configuration Menu
TD310 Operation | 6 Outcome of an action Press the On/Off button after the last parameter to save the settings. The Configura- tion menu is closed and the product is restarted with a segment test. NOTE The Configuration menu is cancelled if no button is pressed for 2 minutes. Changes made prior to that are not saved. -
Page 14: Opening The Adjustment Menu
6 | Operation TD310 NOTE The configuration is closed if no button is pressed for 2 minutes. Any changes made up to that point are not saved. 6.2.4 Opening the adjustment menu Description The temperature input can be adjusted with the zero point correction and the gradient correction. - Page 15 TD310 Operation | 6 Representation Parameter Values Meaning Zero point correction OFFS No zero point correction -2.5 .. 2.5 Zero point correction in °C. and/or at °F -4.50 .. 4.50 Gradient correction of the temperature S(AL No gradient correction Gradient correction in % -5.00 ..
-
Page 16: Bases For Measurement
7 | Bases for measurement TD310 7 Bases for measurement 7.1 Sensor/device accuracy The product has high system accuracy. This is achieved by calibrating the temperat- ure sensor with the product when it is manufactured. This is achieved with precise measuring technology and high-quality Pt1000 sensors. -
Page 17: Maintenance
TD310 Maintenance | 8 8 Maintenance 8.1 Operating and maintenance notices NOTE The product and temperature probe must be handled with care and used in accord- ance with the technical data. Do not throw or strike. NOTE If the product is stored at a temperature above 50 °C, or is not used for an extended period of time, the batteries must be removed. - Page 18 8 | Maintenance TD310 NOTE Read the following handling instructions before replacing batteries and follow them step by step. If disregarded, the product could be damaged or the protection from moisture could be diminished. Description Proceed as follows to replace the batteries.
-
Page 19: Error And System Messages
TD310 Error and system messages | 9 9 Error and system messages Display Meaning Possible causes Remedy Battery depleted Battery depleted Replace battery Measuring range ex- Measurement too The measurement is above ERR.1 ceeded high the permissible range Measuring probe or... -
Page 20: Disposal
10 | Disposal TD310 10 Disposal 20 / 24 B-H86.0.04.DB201-1.0... -
Page 21: Technical Data
TD310 Technical data | 11 11 Technical data Measuring range temperature 199.9°C .. 200.0°C (-199.9°F) .. 392.0°F) Accuracy temperature -20 .. +100 °C: ± 0.1°C ± 1 Digit -70.0 200.0 °C: +/-0.1 % of measured value +/-2 digits Resolution 0.1 °C / 0.1 °F Response time T90 water (0.4 m/s) -
Page 22: Service
