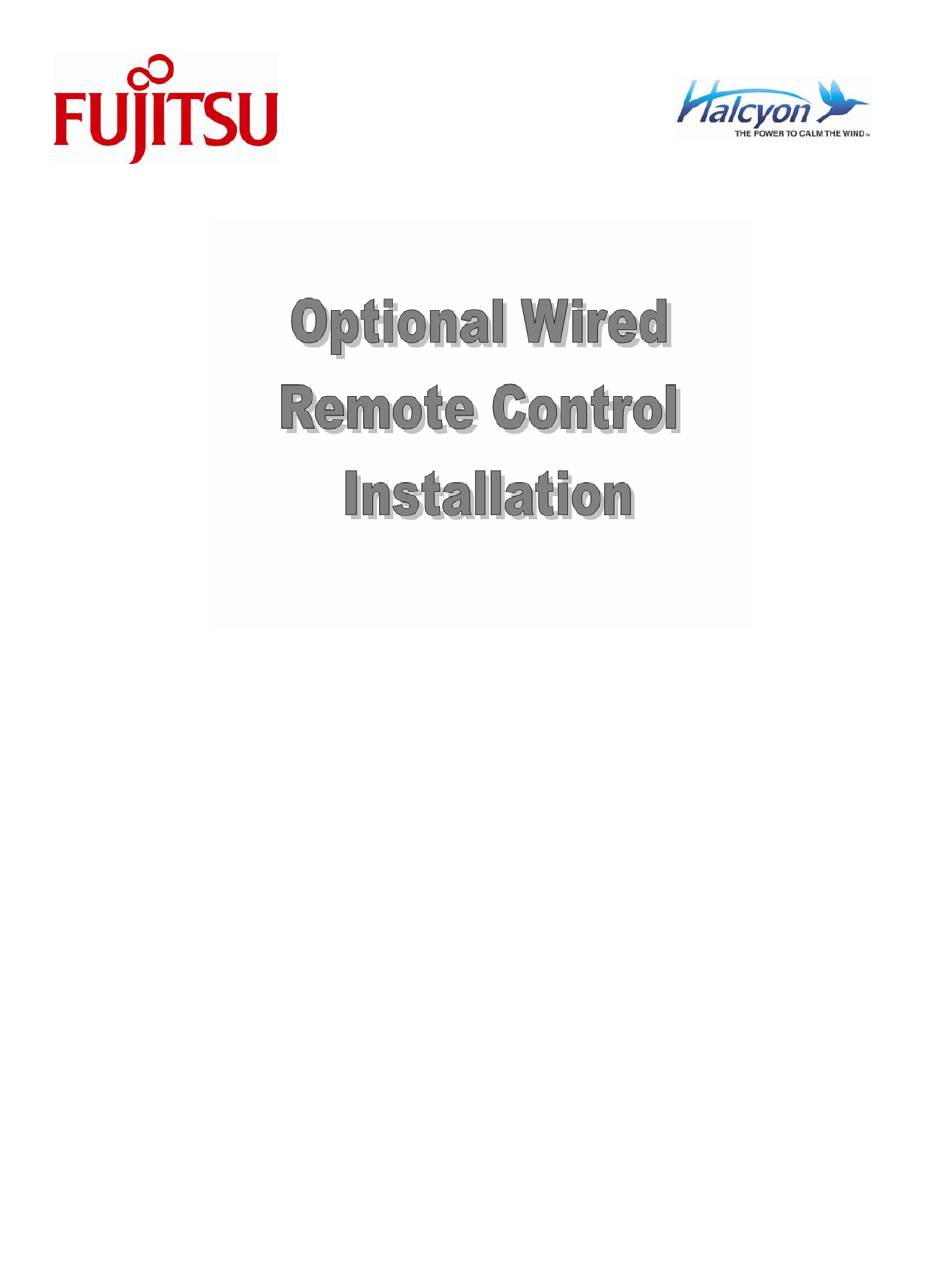

Fujitsu ASU12RMLQ Installation Manual

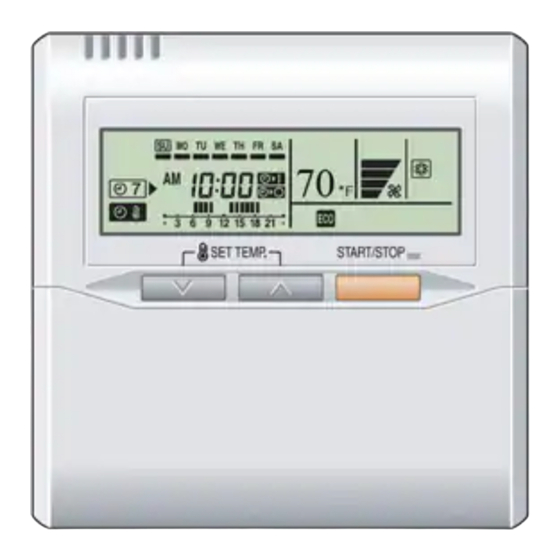

Optional wired remote control
Hide thumbs
Also See for ASU12RMLQ:
- Installation instructions manual (6 pages) ,
- Service instruction (145 pages) ,
- Manual (80 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Fujitsu ASU12RMLQ
Summary of Contents for Fujitsu ASU12RMLQ
- Page 1 Model shown on this installation is ASU12RMLQ. Other models may be slightly different.
- Page 2 Unlatch the front cover on each side and remove the front cover Remove Air & Plasma Filter Remove screws holding the front cabinet (3 or 4) Remove front cabinet by snapping it out from the...
- Page 3 Unplug all Plug In wires Remove all three screws holding the Controller box in place.
- Page 4 Slide out the controller box Plug in hard wire remote to terminal & re-assemble the unit.
- Page 5 Remoter control cord and terminal cord Remote control Cord Terminal cord Part# 9372714010 Part# 9705932012 Remote control Terminal cord Cord Insulated Connection...
- Page 6 Remove the two screws & remove and the back cover Connect wire to terminal and close remote...
