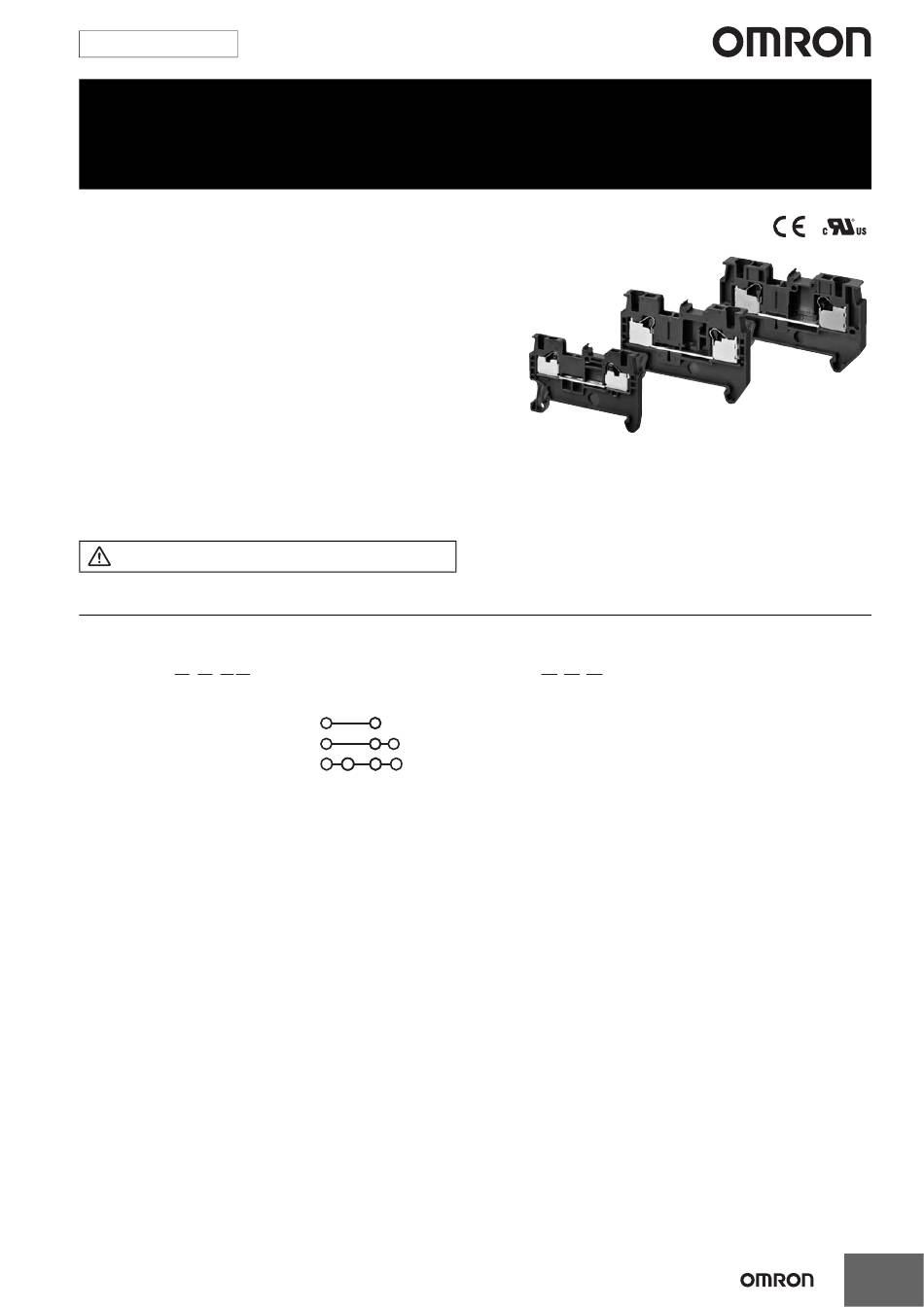

DIN Track Push-in Terminal Blocks
XW5T
Push-in Plus Terminal Blocks to
Downsize Control Panels and Save
Work
• Push-in Plus terminal blocks are more compact than traditional
screw terminal blocks.
No loosening means maintenance-free application.
• Slim models available down to a width of 3.5 mm to help
downsize control panels.
• Light insertion force and strong holding strength to achieve
both less wiring work and high reliability.
• 'Hands-free' structure that holds an inserted screwdriver to
achieve better workability when wiring stranded wires without
crimp terminals.
Refer to Safety Precautions on page 17.
Model Number Legend
Feed Through Terminal Blocks
XW5T - P @ - @ - @@
(1) (2) (3)
(4)
(1) Maximum Applicable
Stranded Wire
1.5: 1.5mm
2
2.5: 2.5mm
2
4.0: 4.0mm
2
Grounding Terminal Blocks
(3) Number of Tiers
(2) Wiring
1: 1 tier
1.1: 1:1
2: 2 tiers
1.2: 1:2
2.2: 2:2
For the most recent information on models that have been
certified for safety standards, refer to your OMRON website.
XW5G - P@ - @ - @
(1) (2) (3)
(4) Color
Blank: Dark gray
BL: Blue
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XW5T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Omron XW5T

  • Page 1 For the most recent information on models that have been certified for safety standards, refer to your OMRON website. • 'Hands-free' structure that holds an inserted screwdriver to achieve better workability when wiring stranded wires without crimp terminals.
  • Page 2 XW5T Part Names and Configuration DIN Track Terminal Block (Top Surface) Basic Configuration Short Bar Nameplate or Labels Terminal (insertion) hole Release hole (to release wire) Short Bar insertion holes • You can attach a Short Bar to either of the two holes.
  • Page 3 0.08 to 1.5 XW5G-P1.5-2.2-1 0.14 to 2.5 13.8 XW5G-P2.5-2.2-1 0.2 to 4.0 16.7 XW5G-P4.0-2.2-1 * For stranded wires. Accessories Short Bars For XW5T-P1.5-@ Appearance No. of poles Colors Model* Application XW5S-P1.5-2@ XW5S-P1.5-3@ Red (RD) Blue (BL) XW5S-P1.5-4@ Used for cross-over wiring between Terminal Blocks.
  • Page 4: Table Of Contents

    XW5T For XW5T-P4.0-@ Appearance No. of poles Colors Model* Application XW5S-P4.0-2@ XW5S-P4.0-3@ Red (RD) Blue (BL) XW5S-P4.0-4@ Used for cross-over wiring between Terminal Blocks. Yellow (YL) XW5S-P4.0-5@ XW5S-P4.0-10@ * Replace the box (@) in the model number with the code for the covering color. Specify the color: RD = red, BL = blue, YL = yellow...
  • Page 5 XW5T Ratings and Performance Ratings Feed Through Terminal blocks Standard terminals Model XW5T-P1.5-1.1-1 (BL) XW5T-P2.5-1.1-1 (BL) XW5T-P4.0-1.1-1 (BL) 1 tier, 1:1 1 tier, 1:1 1 tier, 1:1 Appearance and internal wiring Stranded wire 0.08 mm to 1.5 mm 0.14 mm to 2.5 mm...
  • Page 6 XW5T Feed Through Terminal blocks Multi tiers terminal Model XW5T-P1.5-1.1-2 (BL) XW5T-P2.5-1.1-2 (BL) XW5T-P4.0-1.1-2 (BL) 2 tiers, 1:1 2 tiers, 1:1 2 tiers, 1:1 Appearance and internal wiring Stranded wire 0.08 mm to 1.5 mm 0.14 mm to 2.5 mm 0.2 mm...
  • Page 7 XW5T Feed Through Terminal blocks Multi conductor terminals Model XW5T-P1.5-1.2-1 (BL) XW5T-P2.5-1.2-1 (BL) XW5T-P4.0-1.2-1 (BL) 1 tier, 1:2 1 tier, 1:2 1 tier, 1:2 Appearance and internal wiring Stranded wire 0.08 mm to 1.5 mm 0.14 mm to 2.5 mm 0.2 mm...
  • Page 8 XW5T Model XW5T-P1.5-2.2-1 (BL) XW5T-P2.5-2.2-1 (BL) XW5T-P4.0-2.2-1 (BL) 1 tier, 2:2 1 tier, 2:2 1 tier, 2:2 Appearance and internal wiring Stranded wire 0.08 mm to 1.5 mm 0.14 mm to 2.5 mm 0.2 mm to 4.0 mm Solid wire 0.14 mm...
  • Page 9 Note: Use a conductive DIN Track when using a Grounding Terminal Block. OMRON does not offer conductive DIN Tracks. Please use a commercially available product. *1. For the recommended applicable wire ranges, refer to page 17 for solid and stranded wires, and to page 19 for ferrules.
  • Page 10 Note: Use a conductive DIN Track when using a Grounding Terminal Block. OMRON does not offer conductive DIN Tracks. Please use a commercially available product. *1. For the recommended applicable wire ranges, refer to page 17 for solid and stranded wires, and to page 19 for ferrules.
  • Page 11 Note: Use a conductive DIN Track when using a Grounding Terminal Block. OMRON does not offer conductive DIN Tracks. Please use a commercially available product. *1. For the recommended applicable wire ranges, refer to page 17 for solid and stranded wires, and to page 19 for ferrules.
  • Page 12 Note: Use a conductive DIN Track when using a Grounding Terminal Block. OMRON does not offer conductive DIN Tracks. Please use a commercially available product. *1. For the recommended applicable wire ranges, refer to page 17 for solid and stranded wires, and to page 19 for ferrules.
  • Page 13 XW5T Dimensions (Unit: mm) DIN Track Terminal Blocks XW5T-P1.5-1.1-1 (BL)/XW5G-P1.5-1.1-1 XW5T-P1.5-1.2-1 (BL)/XW5G-P1.5-1.2-1 54.1 24.5 24.5 30.5 30.5 XW5T-P1.5-2.2-1 (BL)/XW5G-P1.5-2.2-1 XW5T-P1.5-1.1-2 (BL)/XW5G-P1.5-1.1-2 65.4 63.2 35.1 41.1 24.5 24.5 30.5 30.5 XW5T-P2.5-1.1-1 (BL)/XW5G-P2.5-1.1-1 XW5T-P2.5-1.2-1 (BL)/XW5G-P2.5-1.2-1 48.8 60.5 29.4 29.4 35.3 35.3 XW5T-P2.5-2.2-1 (BL)/XW5G-P2.5-2.2-1 XW5T-P2.5-1.1-2 (BL)/XW5G-P2.5-1.1-2...
  • Page 14 XW5T XW5T-P4.0-1.1-1 (BL)/XW5G-P4.0-1.1-1 XW5T-P4.0-1.2-1 (BL)/XW5G-P4.0-1.2-1 56.1 66.5 29.4 29.4 35.3 35.3 XW5T-P4.0-2.2-1 (BL)/XW5G-P4.0-2.2-1 XW5T-P4.0-1.1-2 (BL)/XW5G-P4.0-1.1-2 76.9 45.9 29.4 29.4 35.3 35.3 Short Bars XW5S-P1.5-@ 3.5×(No. of poles-1)+2.3 Model P (mm) XW5S-P1.5-2@ XW5S-P1.5-3@ 18.2 XW5S-P1.5-4@ 10.5 XW5S-P1.5-5@ 14.0 XW5S-P1.5-10@ 31.5 XW5S-P2.5-@ 5.2×(No.
  • Page 15: Xw5E-P1.5-1.1-1

    XW5T End Cover XW5E-P1.5-1.1-1 XW5E-P1.5-1.2-1 54.1 24.5 24.5 XW5E-P1.5-2.2-1 XW5E-P1.5-1.1-2 65.4 63.2 35.1 24.5 XW5E-P2.5-1.1-1 XW5E-P2.5-1.2-1 48.8 60.5 29.4 29.2 XW5E-P2.5-2.2-1 XW5E-P2.5-1.1-2 78.8 72.2 39.8 29.2...
  • Page 16: Xw5E-P4.0-1.1-1

    XW5T XW5E-P4.0-1.1-1 XW5E-P4.0-1.2-1 66.5 56.1 29.4 29.2 XW5E-P4.0-2.2-1 XW5E-P4.0-1.1-2 76.9 39.8 29.2 End Brackets/Separator Plates XW5Z-EP12 (Separator Plates) XW5Z-EP6 (End Brackets) 33.5 40.2...
  • Page 17 XW5T Safety Precautions Warning Indications Precautions for Correct Use Precautions Supplementary comments on what to do or 1. Precautions for Correct Use for Safe Use avoid doing, to use the product safely. • Always mount End Covers to the following locations when you use...
  • Page 18 XW5T 3. Removing Wires from the Push-In Plus Connecting Stranded Wires Use the following procedure to connect the wires to the terminal block. Terminal Block 1. Hold a flat-blade screwdriver at an angle and insert it into the Use the following procedure to remove wires from the terminal block.
  • Page 19 AI 0,75-8 H0.75/14 216-202 9900 (-2.5×75 Vessel 0.75 AI 0,75-10 H0.75/16 216-242 * OMRON's exclusive purchase model XW4Z-00B is available to order as SZF 0-0,4×2,5 (manufactured by Phoenix Contact). AI 1-8 H1.0/14 216-203 1/1.25 18/17 AI 1-10 H1.0/16 216-243 AI 1,5-8 H1.5/14...
  • Page 20 XW5T Equivalent Labels from Other Companies and 6. Using the Accessories Recommended Label Printers Short Bars Mounting Method Use the following label printer. The following table gives the manufacturer’s model number as of March 2017. Phoenix Manufacturer Omron Weidmuller Cembre...
  • Page 21 XW5T Installation Side-surface Labels You can bend and cut off any of the middle pins with a tool when you use a Short Bar. Bend. Cut. If a Short Bar that has the required pins is not available, you can combine more than one Short Bar to short the required Terminal Blocks.
  • Page 22 XW5T End Brackets Mounting Method The mounting and removal methods for DIN Track are the same as those for the Terminal Blocks. Separator Plate Mounting Method Use a flat-blade screwdriver to tighten the screw in the middle of the top surface to mount the Separator Plate.
  • Page 23 Data presented in Omron Company websites, catalogs and other materials is provided as a guide for the user in determining suitability and does not constitute a warranty. It may represent the result of Omron’s test conditions, and the user must correlate it to actual application requirements.
  • Page 24 The Netherlands Hoffman Estates, IL 60169 U.S.A. Tel: (31)2356-81-300/Fax: (31)2356-81-388 Tel: (1) 847-843-7900/Fax: (1) 847-843-7787 © OMRON Corporation 2016-2021 All Rights Reserved. OMRON (CHINA) CO., LTD. OMRON ASIA PACIFIC PTE. LTD. In the interest of product improvement, Room 2211, Bank of China Tower, No.
