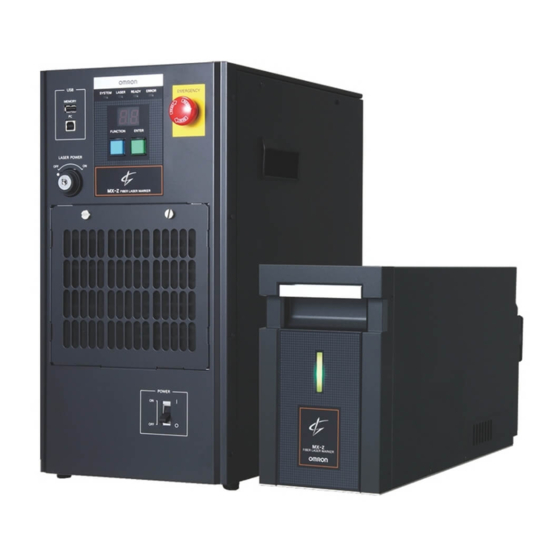

- Page 1 Fiber Laser Marker MX-Z2000H-V1 series User’s manual Z416-E1-01...
- Page 2 MX-Z2000H-V1 series. Take heed of the following when using the MX-Z2000H-V1 series: - The MX-Z2000H-V1 series should be handled by experts with knowledge of electrical engineering. - Read this manual carefully and understand the content fully to ensure the correct use.
-
Page 3: Terms And Conditions Agreement
(a) Exclusive Warranty. Omron’s exclusive warranty is that the Products will be free from defects in materials and workmanship for a period of twelve months from the date of sale by Omron (or such other period expressed in writing by Omron). Omron disclaims all other warranties, express or implied. -
Page 4: Performance Data
Performance Data. Data presented in Omron Company websites, catalogs and other materials is provided as a guide for the user in determining suitability and does not constitute a warranty. It may represent the result of Omron’s test conditions, and the user must correlate it to actual application requirements. -
Page 5: Notes On Safety
Safety Labels and Definitions In this manual, the precautions are indicated with the following labels and symbols so that MX-Z2000H-V1 series can be used safely. The precautions described here contain information critical to ensuring safety. Be sure to observe them. The labels and symbols are as follows. - Page 6 A serious personal injury may result in some extreme circumstances. Never forcibly continue to operate the product when an error or failure occurs as doing so may result in smoke generating or igniting accident. Fiber Laser Marker MX-Z2000H-V1 series User’s Manual (Z416)
- Page 7 This product must be controlled and operated using the procedures specified in this manual. A serious personal injury may result. Wear protective glasses when emitting laser beam. Laser beam, if it hits the eye, may cause blindness. Do not look into it. Fiber Laser Marker MX-Z2000H-V1 series User’s Manual (Z416)
- Page 8 When transporting the marker head, be sure to hold the concaved section in front and handle at the back with both hands. If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. Fiber Laser Marker MX-Z2000H-V1 series User’s Manual (Z416)
-
Page 9: Safety Points
(peak 42.4 V or 60 V (DC)) even in single failure condition. "Fiber Laser Marker MX-Z2000H-V1 series Setup Manual" (Z415) 4. Interlock The product is equipped with the shutter interlock function. Use it for remote interlocks, etc. -
Page 10: Notes On Operation
• If you feel a sense of error, immediately stop using the product and turn off the power supply, and contact your OMRON representative. • Do not move the product with the cable still attached. • Do not cut the fiber cable. If the fiber cable is cut accidentally, please stop using the product and consult your OMRON representative. - Page 11 • Refer to the previous item, "Storage," for details of storing the product that is packed and is in transit. The aforementioned items do not guarantee any unforeseen situations that may arise from packing or transporting of the product. Fiber Laser Marker MX-Z2000H-V1 series User’s Manual (Z416)
-
Page 12: Applicable Standards
"Masking set" (MX-9190) that helps you easily change the exterior of your laser marker. 2.UL standards We have confirmed and received certification that this product satisfies the requirements of the UL standard on the basis of UL 61010-1. Fiber Laser Marker MX-Z2000H-V1 series User’s Manual (Z416) - Page 13 • EN61010-1:2010 "Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements" • EN60825-1:2014 "Safety of laser products - Part 1: Equipment classification and requirements" UL, CSA Standards UL61010-1, CAN/CSA C22.2 No.61010-1 GB Standards GB7247.1 EN 55011:2009 +A1:2010, EN 55032:2012 Fiber Laser Marker MX-Z2000H-V1 series User’s Manual (Z416)
- Page 14 Also, install the controller in a location not being exposed to laser beams. "Fiber Laser Marker MX-Z2000H-V1 series Setup Manual" (Z415) (5) Management of the keys to operate the laser devices While a laser device is not in use, be sure to remove the system key and pass it to the safety manager for safekeeping in order to keep the laser from being operated by unauthorized personnel or without permission.
-
Page 15: Laser Information
Indicates the distance from the source at which the beam radiation intensity or radiation exposure becomes equal to the maximum permissible exposure for the cornea. The value is calculated with the exposure time set to 10 seconds. Fiber Laser Marker MX-Z2000H-V1 series User’s Manual (Z416) - Page 16 Item Specification Remarks MX-Z2000H-V1 MX-Z2050H-V1 MX-Z2055H-V1 Wavelength 655 nm Visible laser Laser medium Semiconductor laser Maximum output 1 mW Laser oscillation type CW (continuous wave) Class Fiber Laser Marker MX-Z2000H-V1 series User’s Manual (Z416)
- Page 17 Safety Functions of Laser Marker This product is equipped with the following safety functions. • Controller • Marker head Fiber Laser Marker MX-Z2000H-V1 series User’s Manual (Z416)
- Page 18 Igniting or explosion warning label Igniting or explosion warning label (page 18) Name plate Name plate (page 19) Standard label Standard label (page 19) Caution label for fall hazards Caution label for fall hazards (page 19) Fiber Laser Marker MX-Z2000H-V1 series User’s Manual (Z416)
