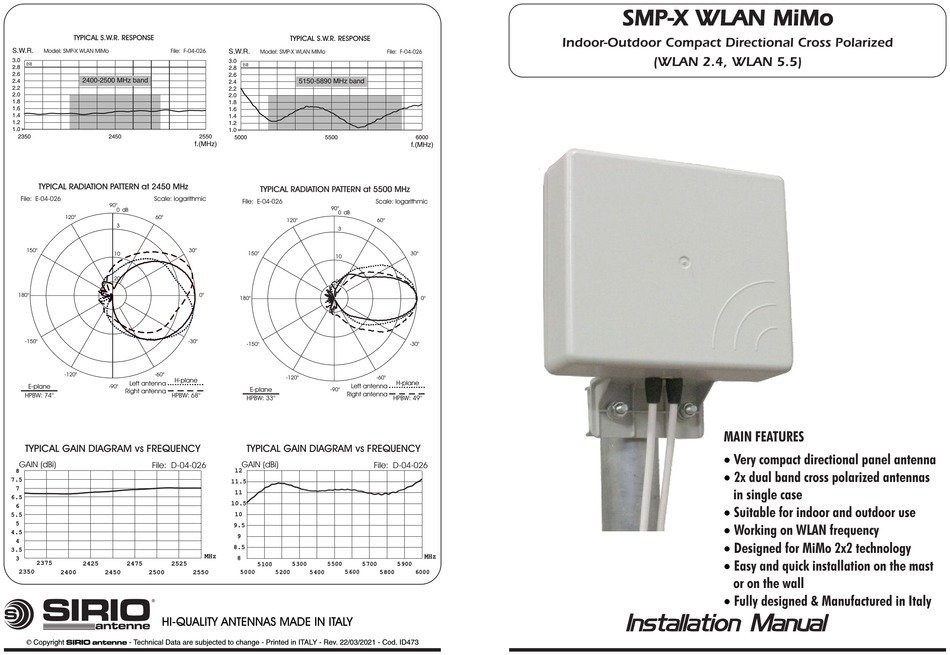

Sirio Antenne SMP-X WLAN MiMo Installation Manual

TYPICAL S.W.R. RESPONSE
S.W.R.
Model: SMP-X WLAN MiMo File: F-04-026
3.0
2.8
2.6
2400-2500 MHz band
2.4
2.2
2.0
1.8
1.6
1.4
1.2
1.0
2350 2450
TYPICAL RADIATION PATTERN at 2450 MHz
File: E-04-026 Scale: logarithmic
90°
0 dB
120° 60°
3
150°
10
20
180°
-150°
-120° -60°
H-plane
Left antenna
E-plane -90°
Right antenna
HPBW: 74° HPBW: 68°
TYPICAL GAIN DIAGRAM vs FREQUENCY
GAIN (dBi)
File: D-04-026
8
7.5
7
6.5
6
5.5
5
4.5
4
3.5
3
2375
2425 2475 2525
2350 2400 2450 2500
SIRIO
S
HI-QUALITY ANTENNAS MADE IN ITALY
antenne
B Copyright SIRIO antenne - Technical Data are subjected to change - Printed in ITALY - Rev. 22/03/2021 - Cod. ID473
TYPICAL S.W.R. RESPONSE
S.W.R.
Model: SMP-X WLAN MiMo
3.0
2.8
2.6
5150-5890 MHz band
2.4
2.2
2.0
1.8
1.6
1.4
1.2
1.0
2550
5000 5500
f.(MHz)
TYPICAL RADIATION PATTERN at 5500 MHz
File: E-04-026
90°
0 dB
120°
3
30°
150°
10
20
0°
180°
-30°
-150°
-120°
Left antenna
E-plane -90°
Right antenna
HPBW: 33°
TYPICAL GAIN DIAGRAM vs FREQUENCY
GAIN (dBi)
12
11.5
11
10.5
10
9.5
9
8.5
MHz
8
5100 5300 5500 5700
2550 5000 5200 5400 5600
File: F-04-026
6000
f.(MHz)
Scale: logarithmic
60°
30°
0°
-30°
-60°
H-plane
HPBW: 49°
File: D-04-026
MHz
5900
5800 6000

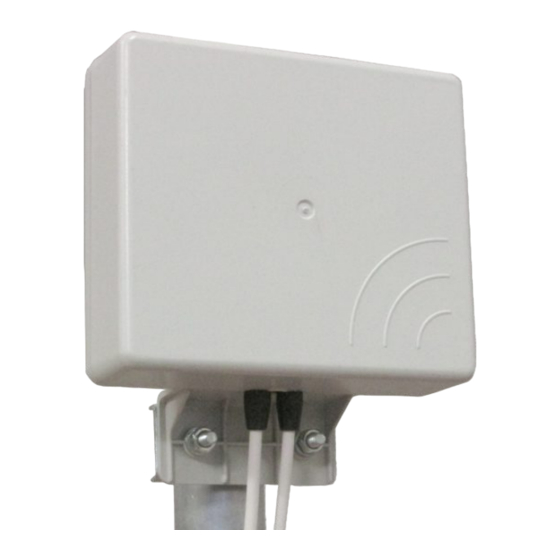

SMP-X WLAN MiMo
Indoor-Outdoor Compact Directional Cross Polarized
(WLAN 2.4, WLAN 5.5)
MAIN FEATURES
Very compact directional panel antenna
·
2x dual band cross polarized antennas
·
in single case
Suitable for indoor and outdoor use
·
Working on WLAN frequency
·
Designed for MiMo 2x2 technology
·
Easy and quick installation on the mast
·
or on the wall
Fully designed & Manufactured in Italy
·
