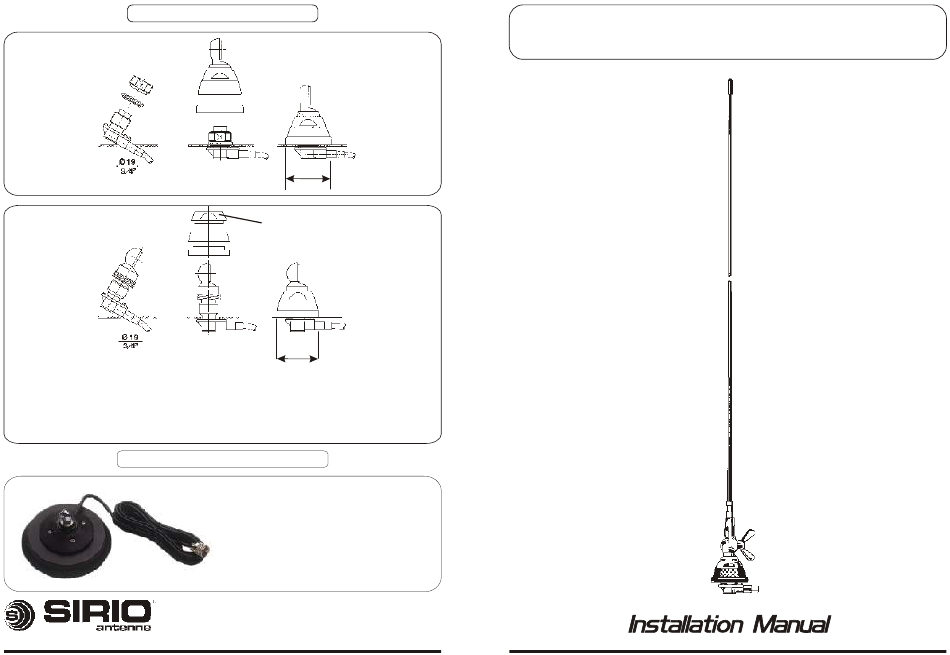

MOUNT INSTALLATIONS
MOUNT INSTALLATIONS
"S" Mount
"SL" Mount
REMARK: Be careful during installation do not use too much strenght but tighten the metal
ring A by means of the suitable tool. TIGHTENING TORQUE: 4 Nm ± 10%
ATTENZIONE: Porre attenzione durante l'installazione. Non serrare con troppa forza ma avvitare
l'anello metallico A utilizzando la chiave adeguata. COPPIA DI SERRAGGIO: 4 Nm ± 10%
ALTERNATIVE MOUNT TYPE
ALTERNATIVE MOUNT TYPE
HI-QUALITY ANTENNAS MADE IN ITALY
B Copyright SIRIO antenne - Technical Data are subjected to change - Printed in ITALY - Rev. 15/06/2006 - Cod. ID374
∅ 42 mm
∅ 1"-3/5
A
∅ 39 mm
∅ 1"-1/2
MAG 125 S:
Frequency Range: from DC to 500 MHz
Overall Size: Ø 127 mm
Materials: Chromed Brass, Nylon, Rubber
Cable: 3.6 m RG 58 / PL 259 R male
Antenna connection: UHF-female
P/N 2502602.01 MAG 125 S
SM 66-88
SM 66-88

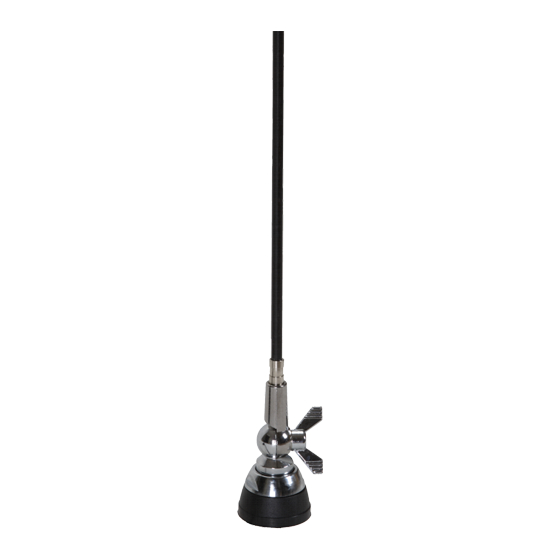

VHF Mobile Antennas 66...88 MHz or 140...175 MHz Fiberglass whip
SM 140-175
SM 140-175
