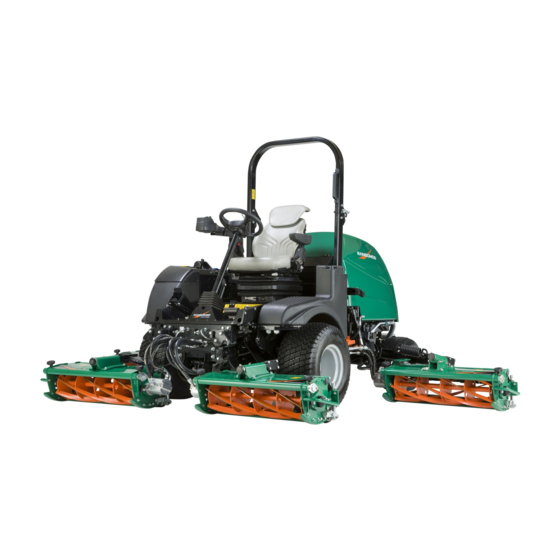

Ransomes MP655 Quick Start Manual
Ride on rotary mower with rops
Hide thumbs
Also See for MP655:
- Safety, operation & maintenance manual/parts list (116 pages) ,
- Safety, operation & maintenance manual/parts list (118 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Ransomes MP655
Summary of Contents for Ransomes MP655
- Page 1 QUICK START GUIDE Ransomes MP655 Ride on Rotary Mower With ROPS STARTING THE ENGINE SEAT ADJUSTMENT CONTROLS DRIVING MOWING VISUAL DISPLAY Refer To The Safety, Operation And Maintenance Manual For Full Operating Instructions. RJL 100 September 2015 United Kingdom 25114G-GB (rev.0)
- Page 2 QUICK START GUIDE Ransomes Jacobsen Limited reserves the right to make design changes without obligation to make these changes on units previously sold and the information contained in this manual is subject to change without notice. © 2015 , Ransomes Jacobsen Limited. All Rights Reserved...
-
Page 3: Starting The Engine
QUICK START GUIDE STARTING THE ENGINE BEFORE YOU OPERATE FOR THE FIRST TIME • Check and adjust tyre pressure, if necessary, see Safety, Operation and Maintenance manual. • If necessary, add diesel fuel to tank. • Check engine oil and if necessary fill. •... -
Page 4: Seat Adjustment
QUICK START GUIDE SEAT ADJUSTMENT SEAT (GRAMMER MSG85) C. WEIGHT ADJUSTMENT To Adjust Adjustments to the seat can be made for leg The position of the operator weight adjust reach, backrest angle and operator weight to lever (C) is on the front of the seat. To give a good position to operate the machine. -
Page 5: Steering Wheel Adjustment
QUICK START GUIDE STEERING WHEEL ADJUSTMENT STEERING TILT CONTROL When the operators seat is in the correct position to operate the traction pedal comfortably. Push the small foot pedal (A) at the base of the steering column. Tilt the column backward or forward to the correct position. - Page 6 QUICK START GUIDE CONTROLS Starter Key Switch Hazard Warning Switch Throttle Control Lever Right Side Unit Lift and Lower Parking Brake Switch Centre Unit Lift and Lower Backlap Switch Left Side Unit Lift and Lower Cutter Switch The Cutting Unit is engaged Beacon Right side cutting unit in cutting 4 WD In Reverse...
-
Page 7: Starter Key Switch
QUICK START GUIDE CONTROLS STARTER KEY SWITCH PARKING BRAKE SWITCH Move the orange button back and press the switch to engage the parking brake. Turn the starter key to the right to start the When the engine is stopped, the parking engine. -
Page 8: Horn Button
QUICK START GUIDE CONTROLS HORN BUTTON BEACON SWITCH For machines without the lighting kit. The horn button (A) is on the control panel. If the lighting kit is fitted, the horn is found on the end of the indicator stalk. Operates the vehicles rotating beacon CUTTER SWITCH 4 WHEEL DRIVE IN REVERSE SWITCH... -
Page 9: Cruise Control
QUICK START GUIDE CONTROLS BACKLAP SWITCH) DIESEL PATRTICULATE FILTER SWITCH Reverses the direction of blade rotation to With the switch in the center position allow the backlap. (default) it allows automatic Active Regen. Operation of the mower is not changed Find the orange button, move backward and during Active Regen. -
Page 10: Indicator Lamps
QUICK START GUIDE CONTROLS ARM REST POD LIFT/LOWER SWITCH’S Right wing unit Centre three units Left wing unit To lower the cutting unit move the switch lever forward. To raise the cutting unit move the switch lever rearwards NOTE: If the cutter is engaged when the unit is lowered the green led will illuminate when the unit is below 400mm from the ground The yellow PTO LED will illuminate when the... -
Page 11: How To Drive
QUICK START GUIDE DRIVING HOW TO DRIVE • Set the throttle to maximum engine speed. • Release the parking brake before you move in a forward or reverse direction. • Forward - Carefully press the top of the Traction pedal to engage forward drive. •... - Page 12 QUICK START GUIDE MOWING HOW TO MOW Release any transport locks and lower the cutting units with the joysticks. To engage the cutting mechanism, press the upper half of the cutting unit switch, found on the control panel. Release the parking brake and drive in a forward direction.
-
Page 13: Visual Display
QUICK START GUIDE VISUAL DISPLAY START UP SCREEN FIRST SCREEN MODE When the ignition key is turned to the start This screen shows the cutter switch in the position, this screen is shown. OFF position, the transport lock engaged, The hour meter will show total hours of the TST is in operation and speed mode. -
Page 14: Engine Will Not Start
QUICK START GUIDE VISUAL DISPLAY ENGINE WILL NOT START WARNING SLOPE ANGLE 19° 0° Slopes > = 18° in either x or y When the ignition key is turned to the start If the slope angle reaches 19º the screen will position this screen is shown. -
Page 15: Warning Oil Pressure Fault
QUICK START GUIDE VISUAL DISPLAY WARNING OIL PRESSURE FAULT WARNING ENGINE FAULT OIL PRESSURE FAULT When this screen is shown, the engine oil When this screen is shown, there is an pressure has decreased below the normal engine fault.Stop the engine as soon as level. -
Page 16: Warning Battery Fault
QUICK START GUIDE VISUAL DISPLAY WARNING BATTERY FAULT WARNING HRDRAULIC OIL LEVEL LOW When this screen is shown, the battery is not When this screen is shown, the hydraulic oil charging or there is a charge circuit fault. level is low. Press the button below the ... - Page 17 QUICK START GUIDE VISUAL DISPLAY WARNING SOLENOID FAULT WARNING MAXIMUM SLOPE ANGLE EXCEEDED FAULT SOLENOID 0° Slopes > = 22° in either x or y When this screen is shown, there is a hydraulic circuit solenoid fault. When this screen is shown, the maximum- slope angle has been exceeded.
- Page 20 Europe & Rest of The World Except North & South America Ransomes Jacobsen Limited West Road, Ransomes Europark, Ipswich, IP3 9TT English Company Registration No. 1070731 www.ransomesjacobsen.com North & South America Jacobsen, A Textron Company 11108 Quality Drive, Charlotte, NC 28273, USA...
