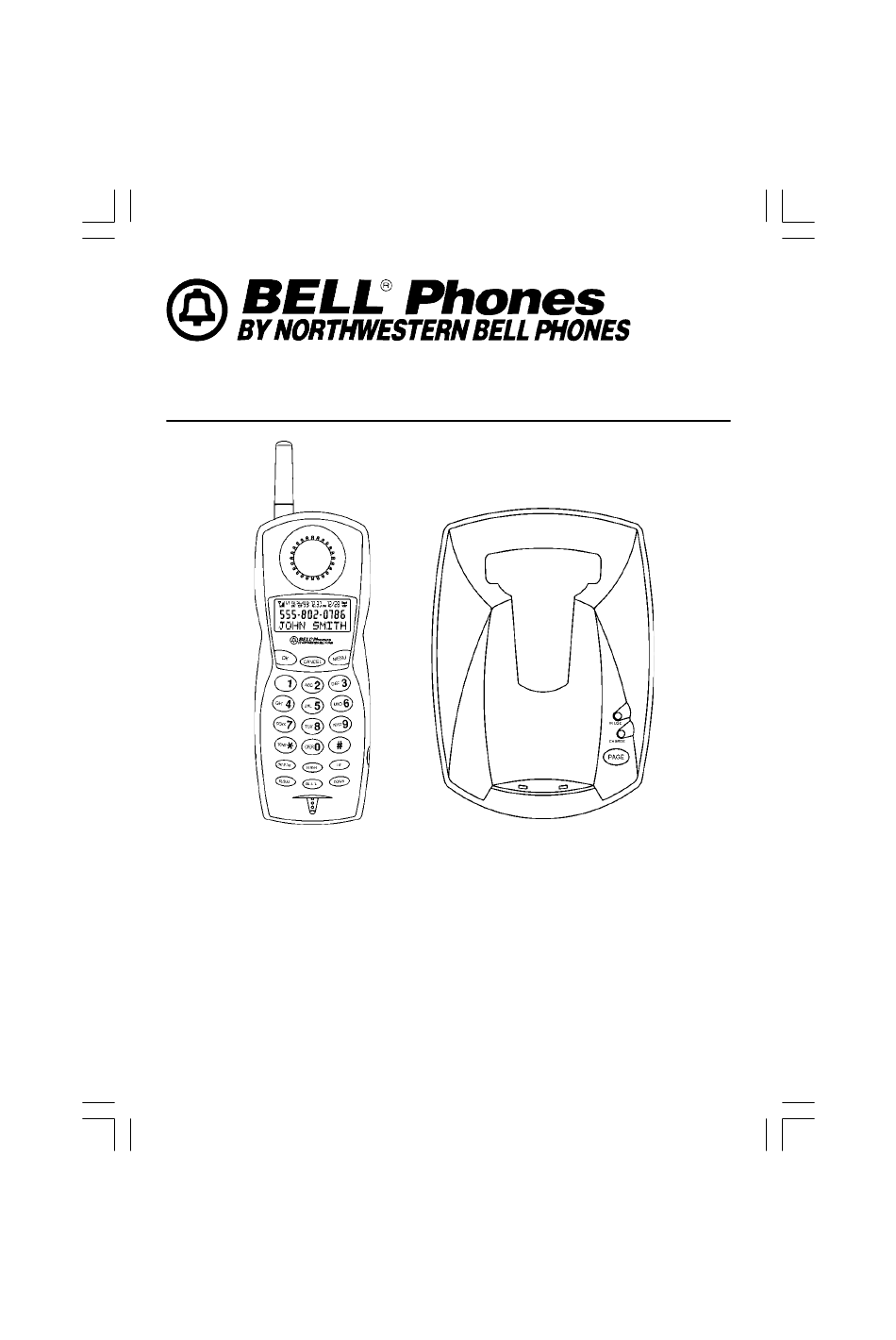

Excursion
®
36570
®
Congratulations on your selection of the Excursion
36570
from Northwestern Bell Phone. This quality 2.4GHz DSST
multi-handset cordless telephone with Caller ID and Call
Waiting, like all Genuine BELL
®
products, has been designed
to give you many years of continuous service and represents
the best value for your money. It requires little maintenance
and is easy to setup and operate.
1
5/26/01, 11:34 AM
36570/02252A-1.PUT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Excursion 36570 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Northwestern Bell Excursion 36570

Summary of Contents for Northwestern Bell Excursion 36570

  • Page 1 ® 36570 ® Congratulations on your selection of the Excursion 36570 from Northwestern Bell Phone. This quality 2.4GHz DSST multi-handset cordless telephone with Caller ID and Call Waiting, like all Genuine BELL ® products, has been designed to give you many years of continuous service and represents the best value for your money.

  • Page 2: Important Service Information

    IMPORTANT SERVICE INFORMATION Read this manual before attempting to setup or use this instrument. It contains important information regarding safe installation and use. Keep this manual for future reference. Also save the carton, packing and proof of purchase to simplify and accelerate any needed action.

  • Page 3: Carton Contents

    CARTON CONTENTS RECHARGEABLE HANDSET BASE UNIT Ni-MH BATTERY PACK ADAPTER TELEPHONE BELT CLIP (DC12V, 200mA) LINE CORD (Short & Long) Serial No: Model No: NAME: ® Excursion 36570 ADDRESS: Model No: Serial No: USER’S MANUAL WARRANTY CARD ACCESSORY ORDER FORM 02252A-1 5/26/01, 11:34 AM 36570/02252A-1.PUT...

  • Page 4: Important Safety Instructions

    SAVE THESE INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, includ- ing the following: 1. Read and understand all instructions. 2.

  • Page 5: Battery Safety Instructions

    B. If liquid has been spilled into the product. C. If the product has been exposed to rain or water. D. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions.

  • Page 6: Installation Precautions

    8. Remove the batteries from this product if the product will not be used for a long period of time (several months or more) since during this time the battery could leak in the product. 9. Discard "dead" batteries as soon as possible since "dead" batteries are more likely to leak in a product.
  • Page 7 4. If your telephone causes harm to the telephone network, the telephone company may discontinue your service temporarily. If possible, they will notify you in advance. But if advance notice is not practical, you will be notified as soon as possible. You will be advised of your right to file a complaint with the FCC.

  • Page 8: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SERVICE INFORMATION............1 CARTON CONTENTS..................2 IMPORTANT SAFETY INSTRUCTIONS............3 BATTERY SAFETY INSTRUCTIONS..............4 INSTALLATION PRECAUTIONS................5 FCC NOTICE......................5 DESCRIPTION....................8 DESKTOP USE....................10 BELT CLIP INSTRUCTION................10 CONNECTING THE HEADSET.................11 POWER INSTALLATION...................11 INITIAL SETUP....................12 REGISTERING THE HANDSET(S).............12 TONE / PULSE SETTING................13 SETTING THE HANDSET RINGER ON/OFF MODE.........13 SETTING HOME AREA CODE AND LOCAL AREA CODE......13 ENABLING THE AREA CODE FUNCTION..........13 TELEPHONE OPERATION................14...

  • Page 9: Description

    SAVING CALL RECORDS................21 STORING CALL RECORD INTO PHONEBOOK........21 DELETING CALL RECORDS..............21 DIALING FROM CALL RECORDS..............22 CALL WAITING ID OPERATION..............22 PROGRAMMING MENU..................23 IMPROVING CORDLESS RECEPTION.............31 MAXIMIZING BATTERY LIFE................31 MAINTENANCE....................32 TROUBLESHOOTING..................32 TECHNICAL INFORMATION................34 DESCRIPTION CONTROLS' LOCATION AND FUNCTION (Figure 1) HANDSET CONTROLS 1.
  • Page 10 5. FLASH Button: In talk mode, it allows you to momentarily hangs up the phone to regain dial tone or access custom calling features such as Call Waiting or Three- Way Calling provided by your local phone company. 6. INT (Intercom)/EDIT Button: (INT) Press to enter into intercom mode with other handset.

  • Page 11: Desktop Use

    BASE UNIT CONTROLS 1. 12VDC Adapter Jack: A jack located on the rear side of the base unit used for connecting the adapter to the base unit. 2. TEL LINE Jack: Accepts line cord to make connection with modular type telephone outlet.

  • Page 12: Connecting The Headset

    CONNECTING THE HEADSET For hands free conversation, a headset (not included) is connected to the head- set jack as shown in Figure 5. The handset receiver and microphone are dis- abled when the headset is connected. Headset Plug (2.5mm) Headset Jack (Figure 5) Press the TALK button to answer or place a call using the headset.

  • Page 13: Initial Setup

    HANDSET BATTERY INSTALLATION CAUTION: Use only the Nickel Metal Hydride (Ni-MH) battery type included with this unit. Use of other battery types may cause injuries or damage. 1. Remove the battery compartment cover of the handset. 2. Connect the rechargeable Ni-MH battery as shown on Figure 7. Handset Battery RED WIRE...

  • Page 14: Tone / Pulse Setting

    6. If the registration is successful, the base unit IN USE LED will blink and the handset will emit three beep tones and the LCD Display shows SYSTEM UPDATE. B. REGISTERING NEW HANDSET TO EXISTING REGISTERED HANDSET Additional handset can be registered on the base unit (same as the above procedure) or it can be registered on the existing first registered handset.

  • Page 15: Telephone Operation

    TELEPHONE OPERATION TO PLACE A CALL IN TALK MODE 1. Press the OK button on the handset. The LCD Display will show CONNECTING... and then call timer starts to count. The base IN USE LED indicator will light up. (Figure 11) 2.

  • Page 16: Storing Telephone Numbers Into Phonebook

    1. In standby mode, press the handset REDIAL button. 2. Press UP or DOWN button to select the desired last telephone number you called. (Figure 12) 3. Press the handset OK button and the unit will automatically redial the last telephone number.

  • Page 17: Editing Stored Telephone Numbers

    NAME ENTRY TABLE Space & Space Space Example: JOHN 1 Press 5 once Press 6 three times Press 4 two times Press 6 two times (Space) Press once Press 1 once 9. Press OK button to save the entered phonebook records. The LCD Display will show the saved telephone number and PRIORITY OFF to ask you to set VIP Call mode.

  • Page 18: Deleting Stored Telephone Numbers

    4. Press UP or DOWN button to select a phone book record to edit. 5. Follow steps 5 to 12 as described in the section "Storing Telephone Numbers Into Phonebook" to overwrite the old entry. DELETING STORED TELEPHONE NUMBERS 1. In standby mode, press the handset's MENU button. 2.

  • Page 19: Intercom Function

    NOTE: If the other handset did not receive the transferred call within 35 seconds, the handset that transfers the call will ring alarming the user to receive the returned call. INTERCOM FUNCTION 1. In standby mode, press INT button on the handset and the unit asks to enter the handset number you want to call.

  • Page 20: Low Battery Warning

    When you hear this sound, you should move closer to the base unit. Otherwise, the call will immediately cut off. LOW BATTERY WARNING When the handset battery voltage level is low, the handset will beep and the LCD Display shows LOW BATTERY LOW BATTERY.

  • Page 21: Receiving New Call

    ANSWERS QUESTIONS What is Caller ID? Caller ID is a device that identifies the calling party before you answer a call. This device can be used to screen unwanted calls and eliminate harassment from annoying calls. Call Waiting ID is a device that identifies the call What is Call Waiting ID? waiting party before you answer a call.

  • Page 22: Viewing Call Records And New Call Records

    VIEWING CALL RECORDS AND NEW CALL RECORDS CALL# 10 12:00 12/25 1. In standby mode, press UP or DOWN button to enter the Call Record list. The LCD Display will show TOTAL the number of new call(s) and the total call(s). Press UP or DOWN button to scroll the Call Record list.

  • Page 23: Dialing From Call Records

    B. DELETING ALL CALL RECORDS 1. In standby mode, press the handset's MENU button. 2. Press UP or DOWN button to search for "BASE MENU". 3. Press OK button to select. 4. When LCD Display shows DEL CALLER ID, press OK button to select. The new and total Call Records will be shown.

  • Page 24: Programming Menu

    PROGRAMMING MENU This unit contains the following special menu: A. PHONEBOOK B. RING VOLUME C. SET RING TYPE D. EDIT HS (Handset) NAME E. DND (Do Not Disturb) SETTING F. KEY BEEP SET G. ALLOW REGISTER H. REGISTER REQ. (Request) I.
  • Page 25 4. Press UP button to increase or DOWN button to decrease the ringer volume. 5. Press OK button to save. 6. Press CANCEL button to return to standby mode. C. SET RING TYPES 1. In standby mode, press the handset's MENU button. 2.
  • Page 26 1. In standby mode, press the handset's MENU button. 12:00 12/25 Press UP or DOWN button to search for "KEY BEEP SET". KEY BEEP SET 3. Press OK button to select. The LCD Display shows the default setting which is KEY BEEP ON. This means that there is beeping sound when a handset key is pressed.
  • Page 27 4. Press UP button or DOWN button to select the following sub-menu, a. DEL (Delete) CALLER ID: This is used to delete a single or all Call 12:00 12/25 Records. See the section "DELETING CALL DEL CALLER ID RECORDS" for details in page 21 and 22. b.
  • Page 28 USE LED light is on. Press again the PAGE button then release until the IN USE LED turns off. Now your unit is already reset. d. EDIT AREA CODE: 12:00 12/25 There are two sections of area code: HOME AREA and LOCAL AREA. Home EDIT AREA CODE and Local Area Code need to be programmed for caller ID dialing back.
  • Page 29 III. SETTING OUT OF AREA CODE (LONG DISTANCE CODE) The default OUT OF AREA code for U.S. is "1". This value is automatically inserted to the outbound telephone number if a 10 digits telephone number does not match any of the set 7 Local area code.
  • Page 30 5. Press MENU button to move to month entry. Press UP or DOWN button to change month. 6. Press MENU button to move to day entry. Press UP or DOWN button to change day. 7. Press OK button to save. 8.
  • Page 31 i. CHANGE SYSTEM ID: This is used to change the system ID if you suspect someone is using your phone. When new system ID is selected, the handset registered to the base unit will not link with the base unit. The handsets must be registered again.

  • Page 32: Improving Cordless Reception

    6. Press UP or DOWN button to change, if needed. The specification can be set to US, TAIWAN, BRAZIL, AUS or OTHERS. 7. Press OK button to confirm. "ARE YOU SURE?" will appear on LCD display. 8. Press OK button again to save. 9.

  • Page 33: Maintenance

    MAINTENANCE 1. Your phone should be situated away from heat sources such as radiators, heaters, stoves or any other appliance that produces heat. 2. Use a slightly damp cloth to clean the plastic cabinet. A mild soap will help to remove grease or oil.
  • Page 34 Refer to the section "Improving Cordless Reception". Calls received The handset rechargeable Ni-MH battery pack may flutters or fades need charging Interference on Refer to the section "Improving Cordless Reception". reception Excessive static Refer to the section "Improving Cordless Reception". B.

  • Page 35: Technical Information

    TECHNICAL INFORMATION This cordless phone uses radio frequencies to allow mobility. There are certain difficulties in using radio frequencies with a cordless telephone. While these are normal, the following could affect the operation of your system. NOISE: Electric pulse noise is present in most homes at one time or another. This noise is most intense during electrical storms.
  • Page 36 Distributed Exclusively Worldwide by Unical Enterprises, Inc., Industry, California USA 36570K/02252A-1 www.nwbphones.com 02252A-1 5/26/01, 11:35 AM 36570/02252A-1.PUT...
