Remove the Blue LVDS cable and
connect to the camera interface box
and our LVDS cable in its place.
*NOTE: Make sure that the power harness and LVDS cable has been connected securely if not connected properly
there may be problems in power being sent to the interface.
Remove the power harness and connect
our Power T-Harness here.

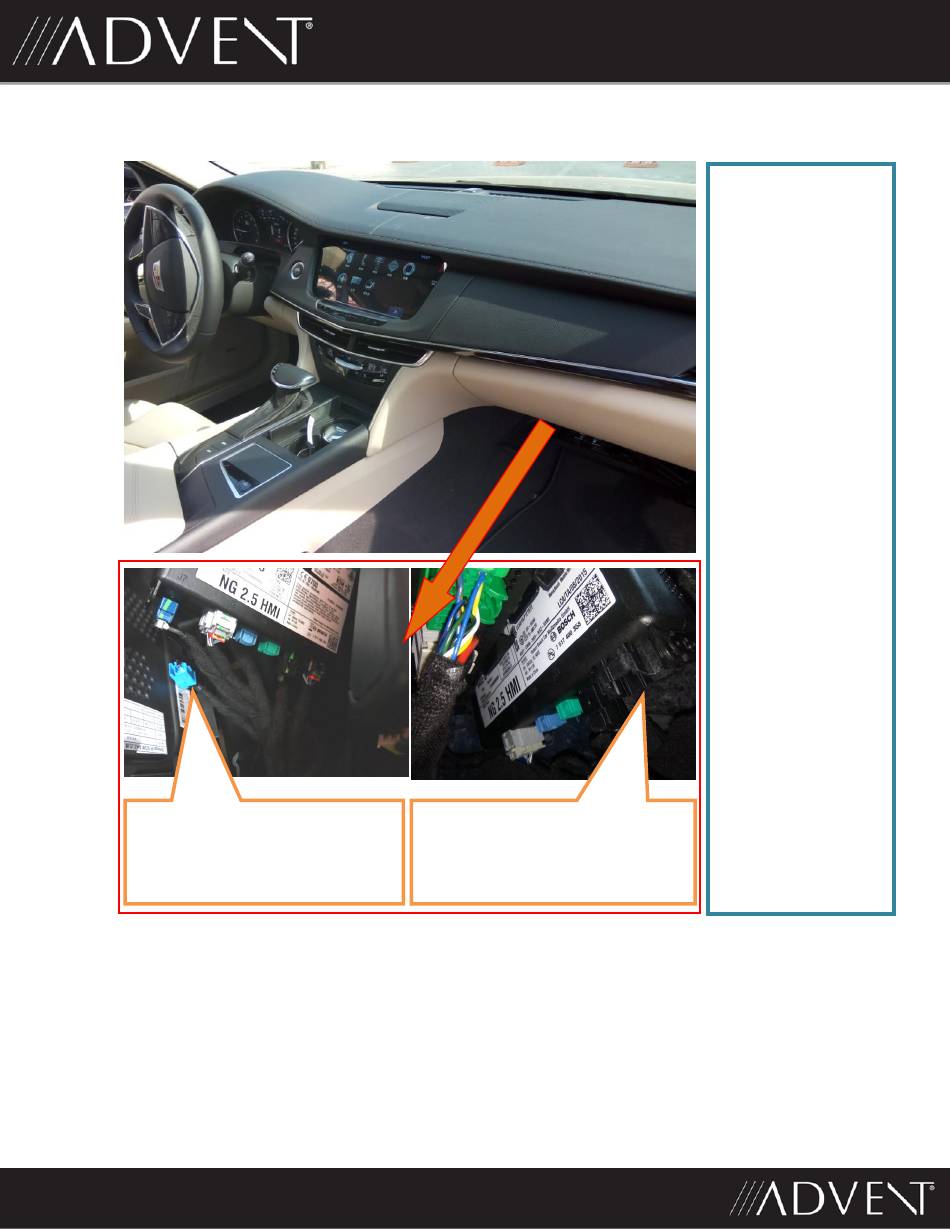

In order to install the
interface you will need
to open the glove
compartment to gain
access to the HU/CD
unit. Once gaining access
you will need to remove
the main harness and
insert our harness in its
place and insert the OE
harness into our plug in
order to complete the T-
Harness.
You will need to connect
the LVDS video in the
same manner.
In order to know the
correct LVDS to connect
please remove one by
one to see which one of
them once removed
make the OE LCD go
black.
